Description Video card Gigabyte GeForce RTX2080 SUPER WATERFORCE WB 8G AORUS (GV-N208SAORUS_WB-8GC)

WATERFORCE Cooling system

AORUS proposes the universal solution for cooling of all key components of a graphics card. Within the offered scheme the effective heat sink from a zone of a crystal of GP, video memory and power components of a power supply subsystem, with the purpose to provide long service life and stable work of a product in the Overclocking mode is organized. The graphics cards of AORUS equipped with the branded WATERFORCE cooling system is a guarantee of magnificent quality of assembly and exclusively high performance due to optimum circulation of a fluid flow of coolant, expeditious and silent heat extraction is carried out by means of a dimensional copper plate of a radiator of the cooling system, thus, the appropriate high-speed performance of the video subsystem in game and other resource-intensive applications is provided.

Massive copper radiator

Dimensional and massive copper plate of a radiator equipped with composite thermal tubes adjoins directly a crystal of GP and chips to a videoOZ, effectively disseminating heat from heated components.

RGB FUSION 2.0 Function

Configured settings of the color scheme, 16.7 million color shades, numerous lighting effects and an opportunity to synchronize a payment with other devices of the AORUS family.

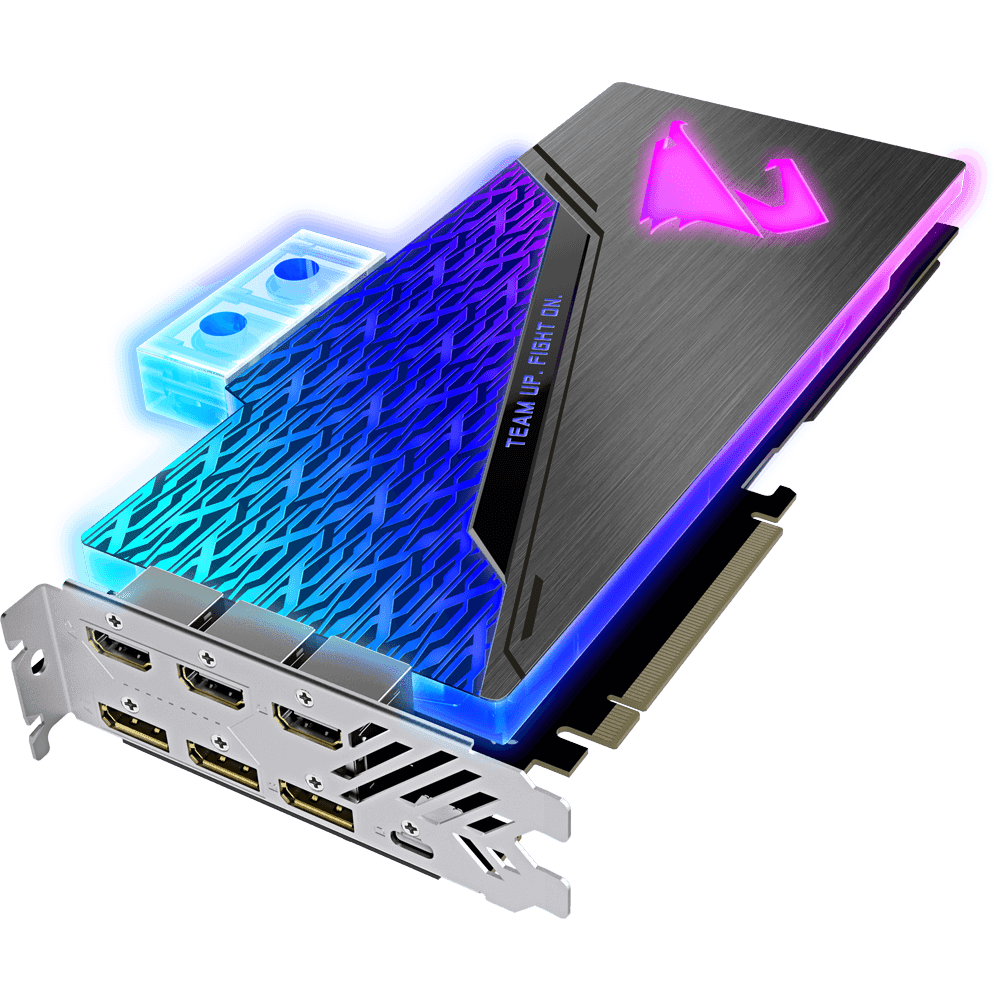

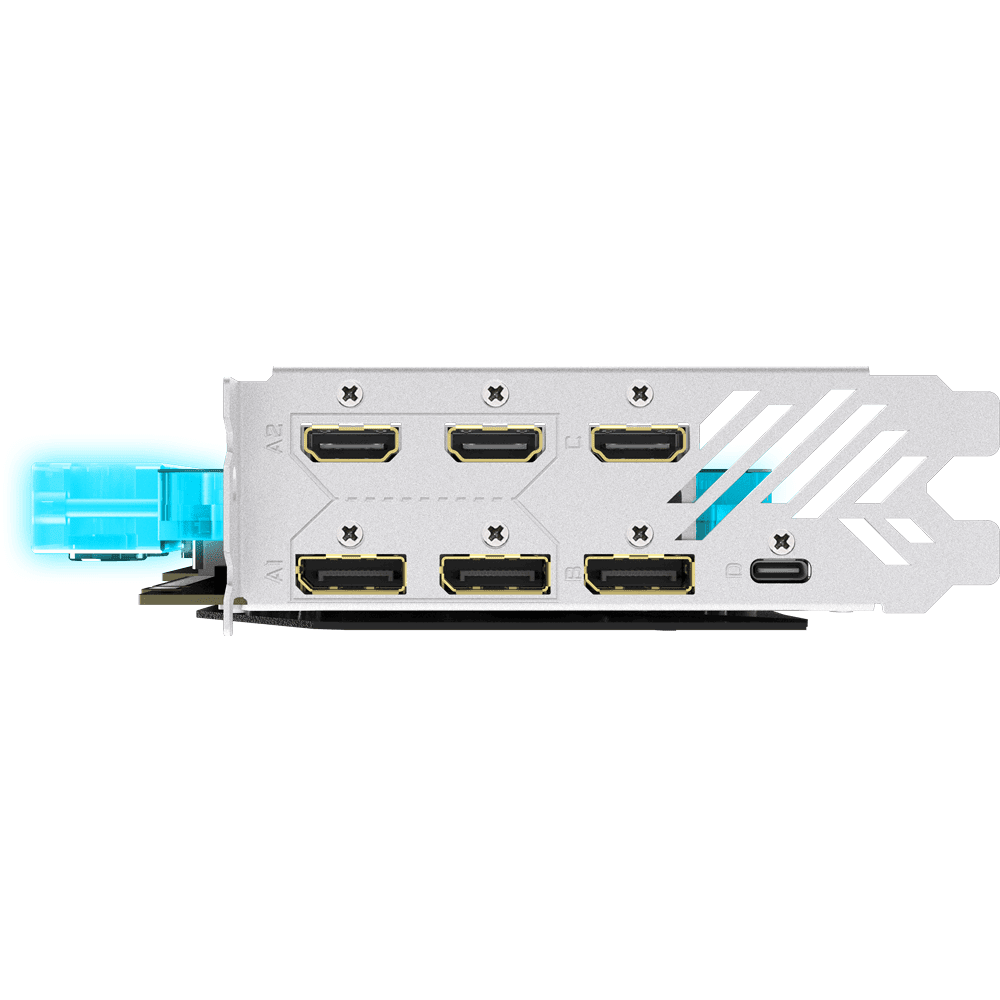

7 video outputs

Unlike standard models with 5 video outputs, AORUS offers the payments equipped in total with 7 connectors for connection of displays of visual information. Thanks to two additional ports of the HDMI interface the list of available options of connection considerably extends. Connecting monitors, you can select scheme 3xHDMI + 1xDP + 1xUSB-C or scheme 3xDP + 1xHDMI + 1xUSB-C, and at the same time not to resort to services of any adapters.

Design

AORUS Core inherited the best hunting skills of a falcon which this bird possesses by nature and perfectly knows. Tenacious and claws of a falcon keen as a razor allow to grab instantly production, to seize an initiative and to keep a situation under control. All this found the reflection in design of the AORUS products.

Special covering of elements of the printed circuit board

Special covering protects a product from dust, damages to result of hit of third-party objects, insects, fasteners, shaving and also protects the surface of the board from abrasion. The moisture protective cover is intended for protection of the components installed on a payment against influence of the liquid environment. The corrosion-resistant coating is designed to protect a graphics card from negative impact of aggressive environments (in particular, acid and alkaline solutions, the increased humidity) and corrosion, under the influence of set of adverse factors.

Power supply subsystem of a graphics card is organized by

according to scheme 12 + 2 phases, with the purpose to create favorable temperature condition for work of key components, to protect them from overheating and to create the balanced load on each field transistor, throttles and condensers certified within the concept by Ultra Durable. All new products provide excellent performance against the background of long service life of a product. ** Power of a reference graphics card is organized according to scheme 8 + 2 phases.

NVLink Technology

Thanks to NVIDIA NVLinkTM technology (NVIDIA SLI) which allows to integrate resources of two graphics cards on the basis of identical GP GeForce RTX™ by means of the jumper NVLink Bridge the enthusiasts have an excellent opportunity to gain unique experience - to involve mode 4K in games and to evaluate advantages of new products on the example of VR-applications. Besides, means of AORUS Engine signature NVLink Bridge Bridge can be integrated into the scheme of illumination of a system in general.

Characteristic Video card Gigabyte GeForce RTX2080 SUPER WATERFORCE WB 8G AORUS (GV-N208SAORUS_WB-8GC)

• Video card (model) NVIDIA GeForce RTX 2080 SUPER
• Processor (clock speed of GPU/Boost), MHz 1860
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 15500
• Additional power 8+8 pin
• Version of DirectX 12
• Occupied slots (width) 2

• Class game
• Guarantee, month 36
• Technology NVIDIA G-Sync, NVIDIA GameWorks, NVIDIA NVLINK, NVIDIA VRWorks
• Video card (model) NVIDIA GeForce RTX 2080 SUPER
• Processor (clock speed of GPU/Boost), MHz 1860
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 3072
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 15500
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards NVIDIA NVLink 2-Way
• VR Support is
• Power consumption, W 650
• Additional power 8+8 pin
• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 3 of x HDMI v2.0b
• Cooling active (liquid)
• Version of DirectX 12
• Cooling system Gigabyte WATERFORCE
• Version of OpenGL 4.5
• Illumination configured illumination of an inscription (RGB), case illumination
• Occupied slots (width) 2
• General height of a product (H), mm 28.7
• Total length of a product (L), mm 291.29
• General width of a product (W), mm 159.05
• Colour (main) Grey
• packaging Type box
• Complete set (cart-ny of change in different deliveries) 1 x the quick guide, 1 x a compact disk with drivers
