Description Video card Gigabyte GeForce RTX2080 SUPER 8G AORUS (GV-N208SAORUS-8GC)

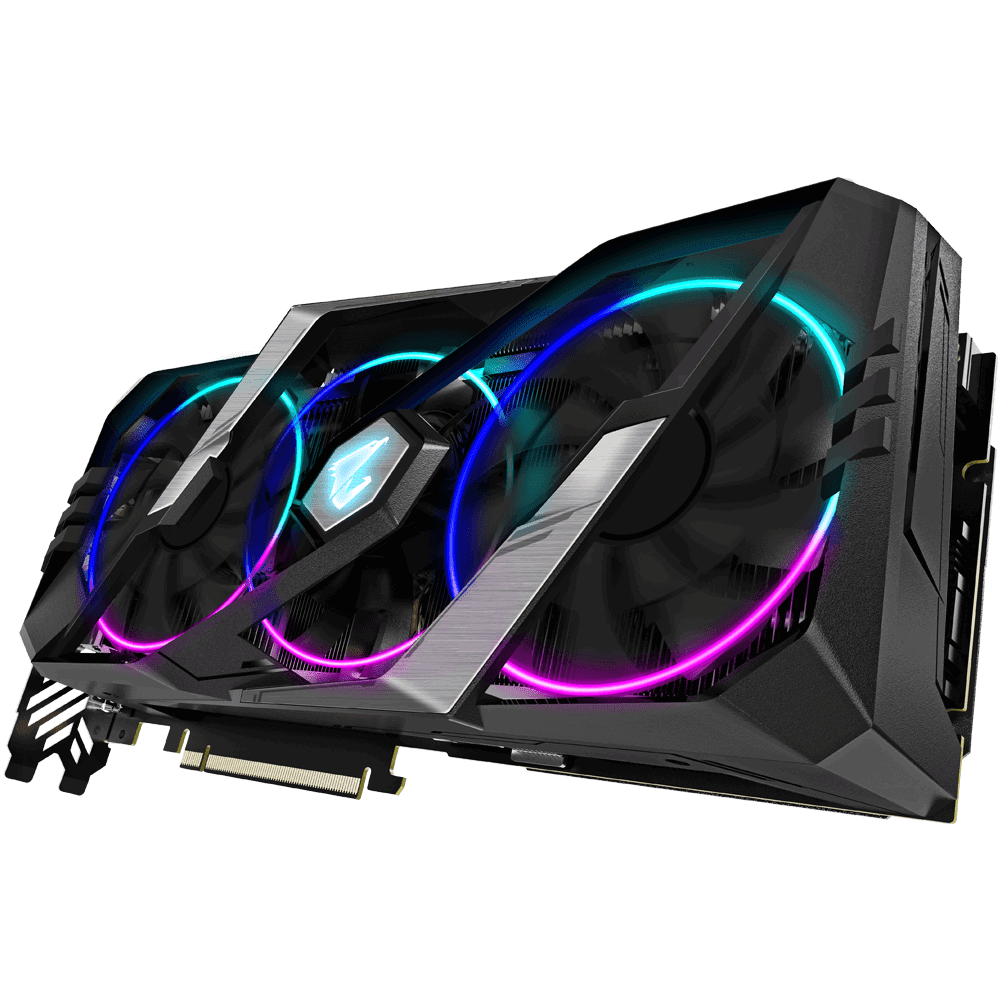

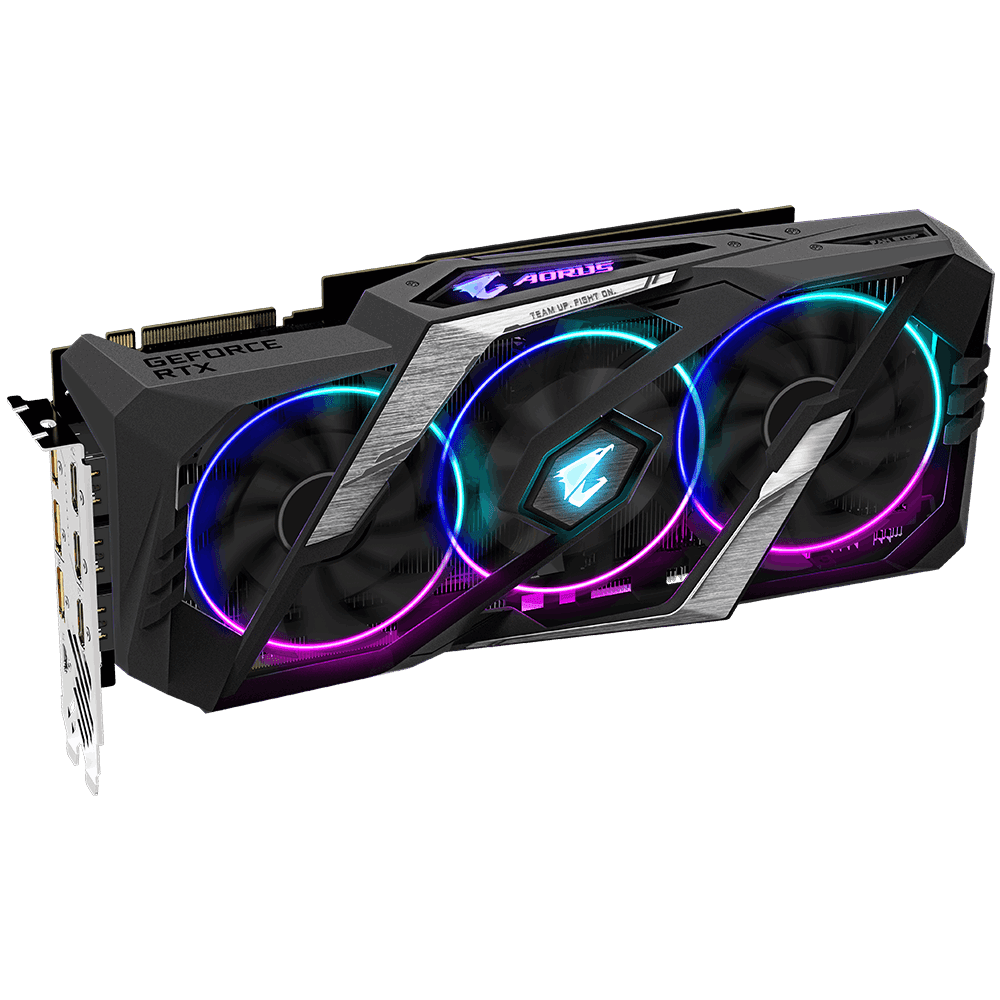

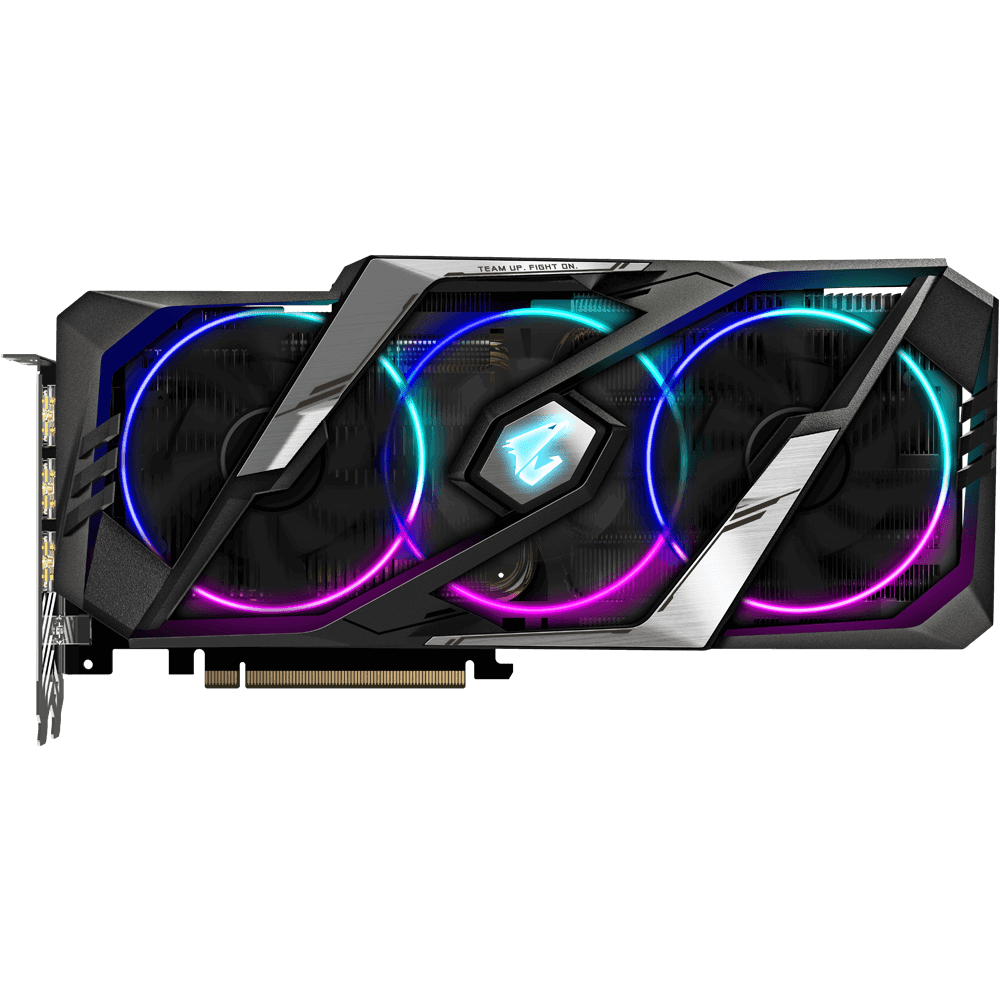

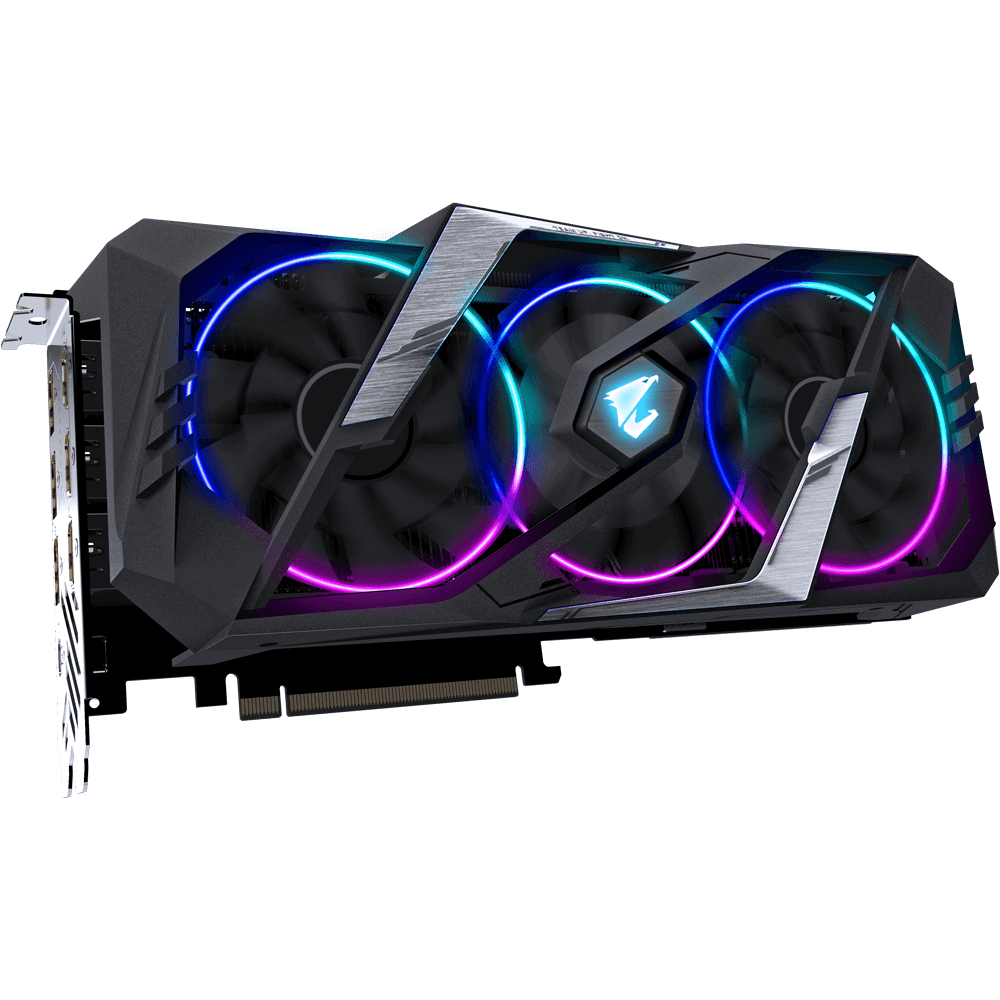

Flew down as a part of three 100-mm fans

Three working in a stack of the 100-mm fan cover the most part of a surface of a radiator and are capable to organize optimum allocation of flows, effectively cooling all key zones. Unlike the solution on the basis of three standard fans, fans of a stack WINDFORCE provide the best parameters of cooling.

Alternative rotation of fans

Unique GIGABYTE Alternate Spinning technology allows to distribute optimum turbulent flows in relation to the cooling system on the basis of three fans. The biggest problem of similar systems - turbulence. If the rotation sense of fans matches, the probability of emergence of turbulent flows (turbulences of air masses between the next fans) which reduce efficiency of the settlement scheme of the heat sink is high. Engineers of GIGABYTE offered original option of interaction of three fans when the central fan rotates in the alternative direction. Thus, it is possible to optimize distribution of air flows between fans and to considerably reduce negative effect of turbulence.

3D ACTIVE Fans

Means of 3D Active technology organized the semi-passive scheme cooling, fans remain switched off when GP is in a status of the lowered loading, servicing not resource-intensive applications. Thanking 3D Active поклонники of computer games can focus on game process as noise from the working cooling system of a graphics card completely is absent. At a face of the video card the indicator of operation of the fan is located.

with

long service life of these components and trouble-free operation of the cooling system of a graphics card in general.

Design of a radiator

Radiator fin at an angle. The different in height and being under uly radiator fins not only optimize the channel of pass of air and increase the surface of contact, but also considerably reduce noise level and increase efficiency of cooling.

rmal tubes with direct contact

Basis of construct of the cooling system is formed by the radiator made of the purified copper which sole adjoins directly to GP crystal. Effective cooling to a videoOZ is implemented by means of a metal plate of the considerable sizes which adjoins memory modules.

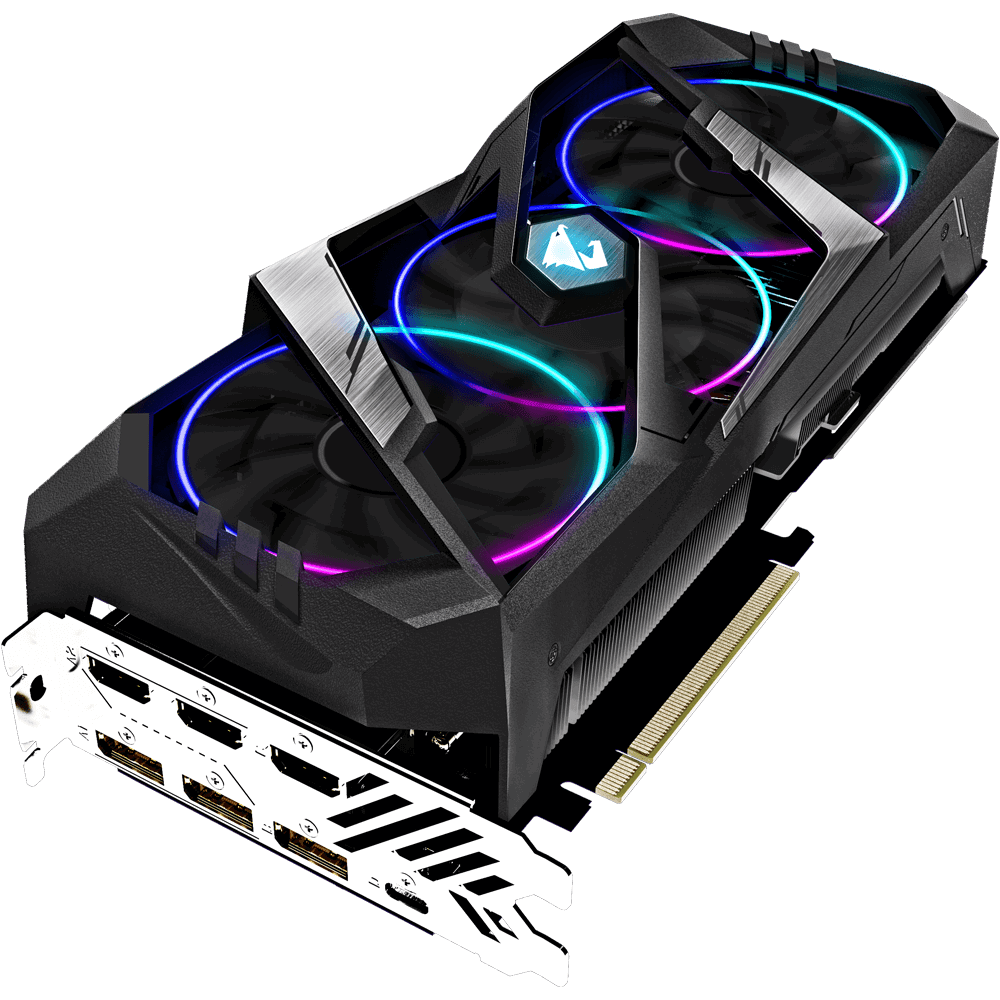

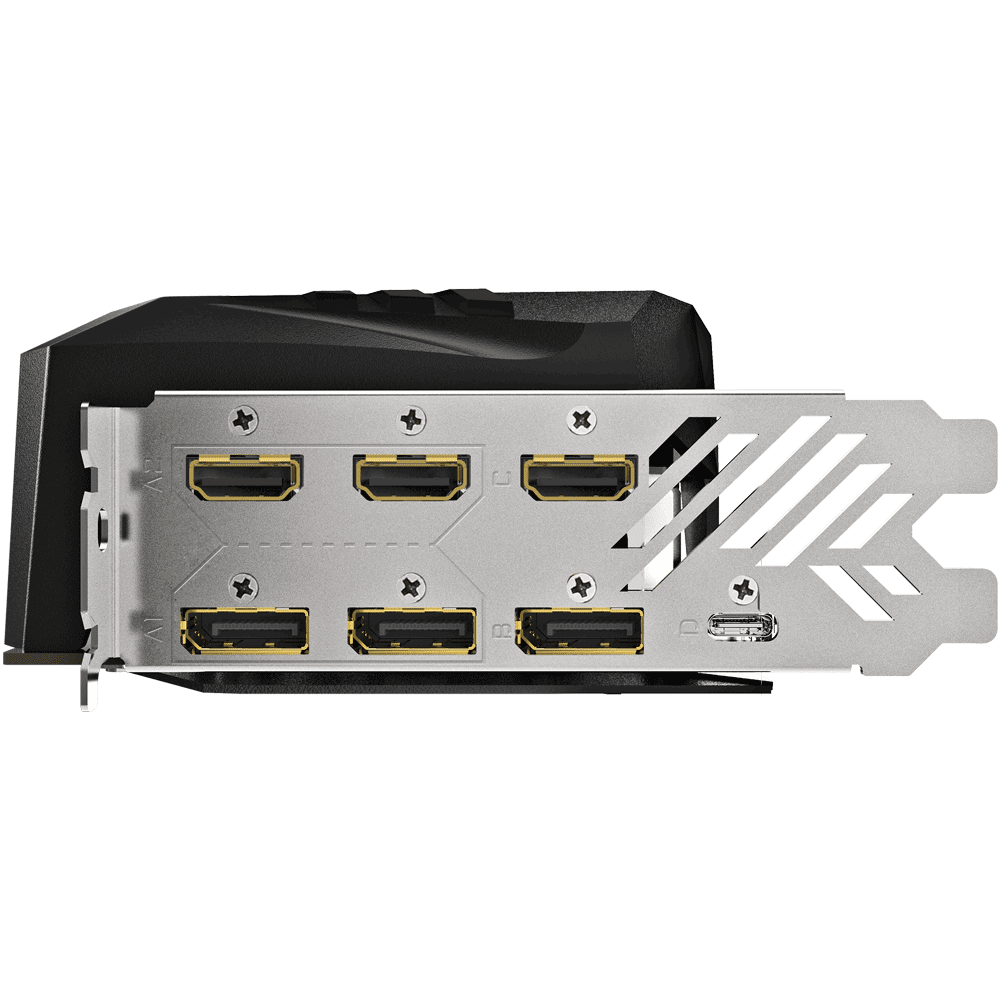

2 additional HDMI ports

Unlike standard models with 5 video outputs, AORUS offers the payments equipped in total with 7 connectors for connection of displays of visual information. Thanks to two additional ports of the HDMI interface the list of available options of connection considerably extends. Connecting monitors, you can select scheme 3xHDMI + 1xDP + 1xUSB-C or scheme 3xDP + 1xHDMI + 1xUSB-C, and at the same time not to resort to services of any adapters.

On superiority wings

Falcon uses the powerful wings to soar up into the sky and to intercept production. Developing conceptual design of AORUS Core, we took a form and structure of a wing of this phenomenally high-speed and surprisingly powerful beautiful bird as a basis. Perfect aerodynamic qualities and features of plumage of wings allow a falcon to soar up instantly into the sky, to soar long above the ground, skillfully maneuvring in air flows and to dive promptly. The construct of protection of AORUS Core developed by us symbolizes advantages of the implemented technologies, and the futuristic style is designed to emphasize originality and uniqueness of shape of the proposed solution.

Characteristic Video card Gigabyte GeForce RTX2080 SUPER 8G AORUS (GV-N208SAORUS-8GC)

• Video card (model) NVIDIA GeForce RTX 2080 SUPER
• Processor (clock speed of GPU/Boost), MHz 1860
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 15500
• Additional power 8+8 pin
• Version of DirectX 12
• Occupied slots (width) 3

• Class game
• Guarantee, month 36
• Technology NVIDIA G-Sync, NVIDIA GameWorks, NVIDIA NVLINK, NVIDIA VRWorks
• Video card (model) NVIDIA GeForce RTX 2080 SUPER
• Processor (clock speed of GPU/Boost), MHz 1860
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 3072
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 15500
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards NVIDIA NVLink 2-Way
• VR Support is
• Power consumption, W 650
• Additional power 8+8 pin
• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 3 of x HDMI v2.0b
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system Gigabyte Windforce Stack 3x
• Fans, piece 3
• Version of OpenGL 4.5
• Illumination configured illumination of an inscription (RGB), fan illumination
• Occupied slots (width) 3
• General height of a product (H), mm 59.9
• Total length of a product (L), mm 290
• General width of a product (W), mm 134.31
• Colour (main) Black

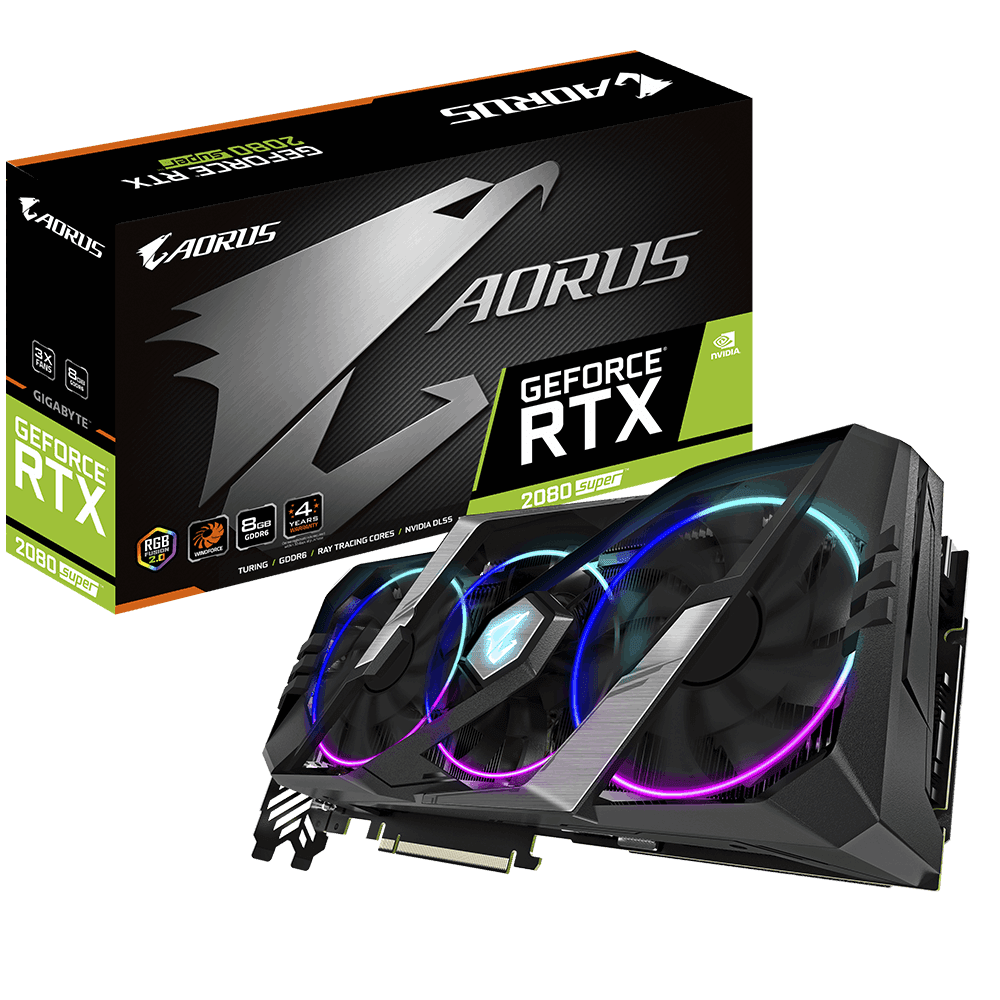

• packaging Type box
• Complete set (cart-ny of change in different deliveries) 1 x the quick guide, 1 x a compact disk with drivers
