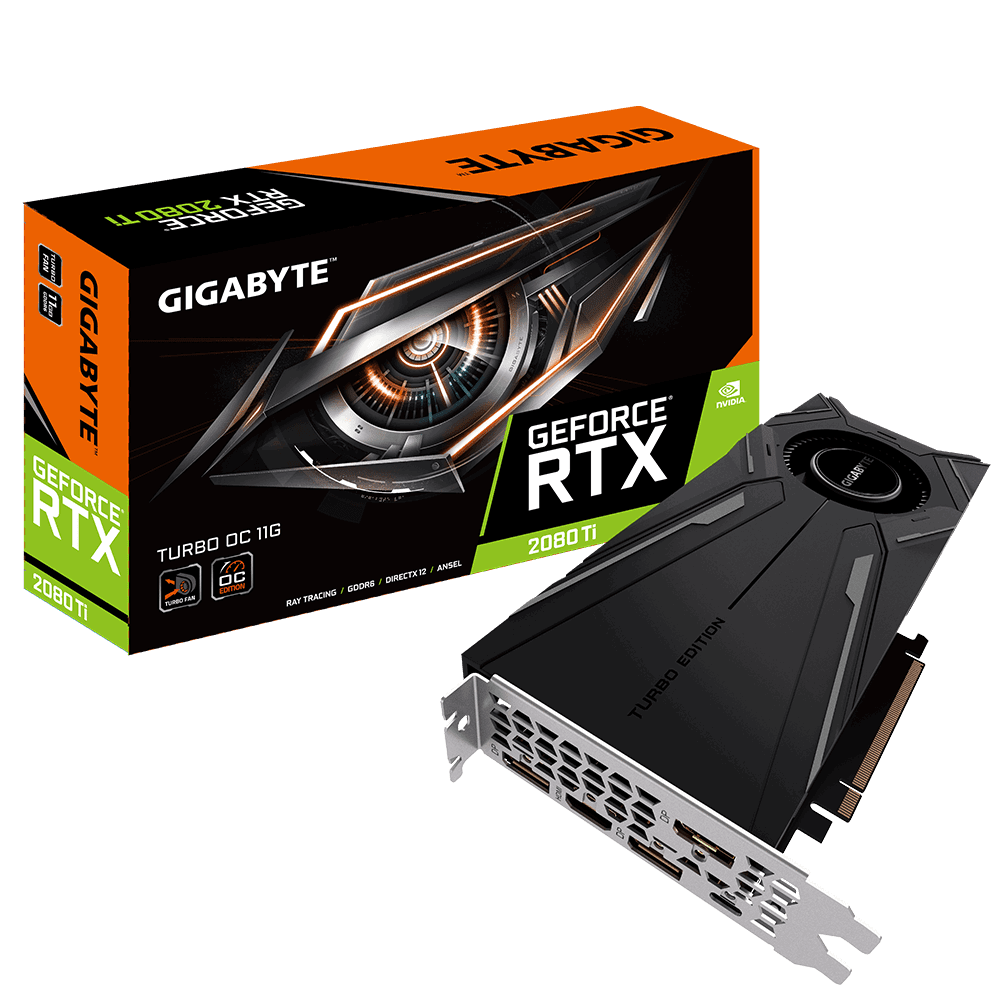

Description Video card GIGABYTE GeForce RTX 2080 Ti 11GB GDDR6 TURBO OC (GV-N208TTURBO_OC-11GC)

TURBO FAN

GIGABYTE turbo fan Cooling system is supplied with the exclusive fan of turbine type with a radiator with thermal tubes of direct contact. It provides effective withdrawal of a hot air out of computer case limits, guaranteeing stable performance in VR and games in ultra high permissions.

VAPORIZING CHAMBER WITH DIRECT CONTACT

TANDEM of BALL-BEARINGS

RELIABILITY AND EXTREME OVERKLOKING

Power supply subsystem of a graphics card is organized by

according to the scheme 8+3 phases, with the purpose to create favorable temperature condition for work of key components, to protect them from overheating and to create the balanced load on each field transistor, throttles and condensers certified within the concept by Ultra Durable. All new products provide excellent performance against the background of long service life of a product.

POWER INDICATORS

Built-in means of the notification about faults in supply circuits, the intelligent LED indicator will notify the player if for any reason the parameters of power of the bus PCI-E differ from regular.

NVIDIA NVLINKTM TECHNOLOGY

Thanks to NVIDIA NVLinkTM technology (NVIDIA SLI) which allows to integrate resources of two graphics cards on the basis of identical GP GeForce RTX by means of the jumper NVLink Bridge the enthusiasts have an excellent opportunity to gain unique experience - to involve mode 4K in games and to evaluate advantages of new products on the example of VR-applications. Besides, means of AORUS Engine signature NVLink Bridge Bridge can be integrated into the scheme of illumination of a system in general.

Cover of the interface and functionality of the application can differ with

UNDER COMPLETE CONTROL

Characteristic Video card GIGABYTE GeForce RTX 2080 Ti 11GB GDDR6 TURBO OC (GV-N208TTURBO_OC-11GC)

• Video card (model) NVIDIA GeForce RTX 2080 Ti
• Processor (clock speed of GPU/Boost), MHz 1620
• Video card (memory size) 11 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 352
• Frequency of operation of the memory bus, MHz 14000

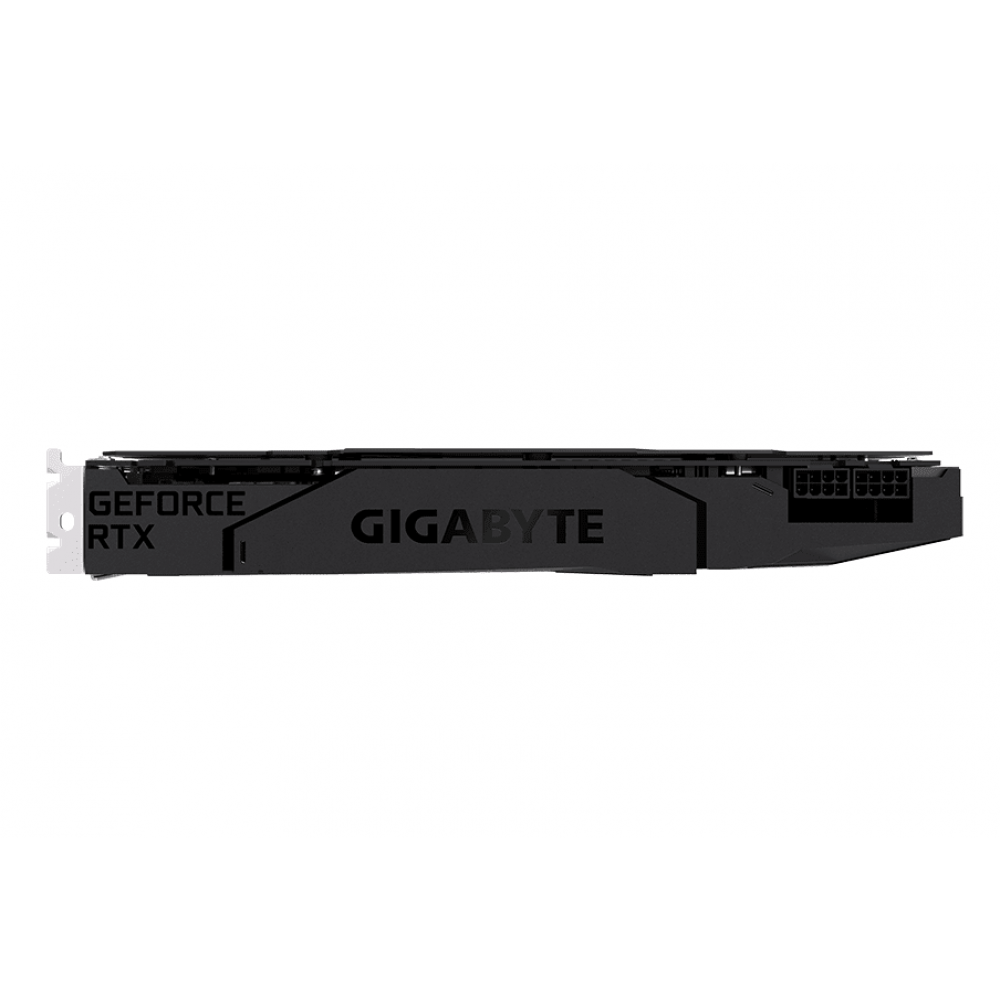

• Additional power 8+8 pin
• Version of DirectX 12
• Occupied slots (width) 2.7

• Class game
• Guarantee, month. 36
• Technology NVIDIA G-Sync, NVIDIA GameWorks, NVIDIA NVLINK
• Video card (model) NVIDIA GeForce RTX 2080 Ti
• Processor (clock speed of GPU/Boost), MHz 1620
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 4352
• Video card (memory size) 11 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 352
• Frequency of operation of the memory bus, MHz 14000
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards NVIDIA NVLink 2-Way
• VR Support is
• Additional power 8+8 pin

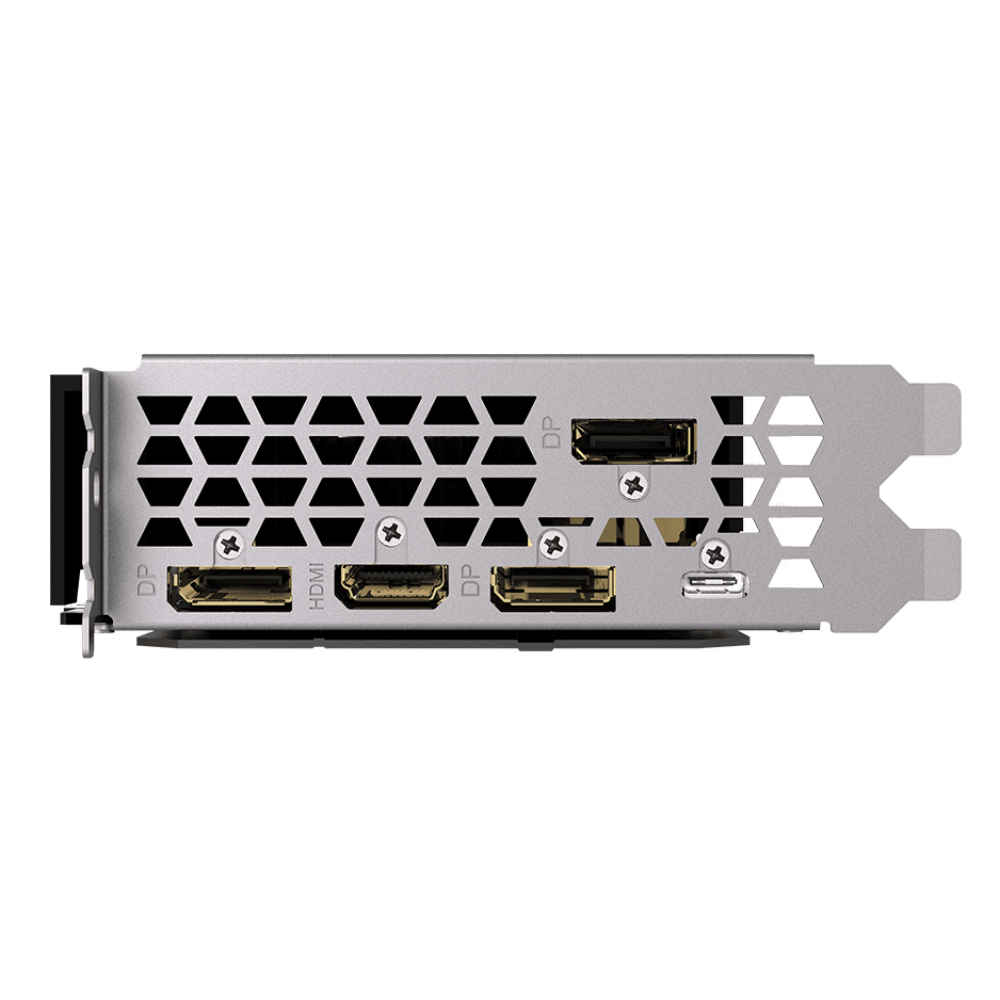

• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 1 of x HDMI v2.0b
• Port DVI there is no
• VGA (D-Sub) Port there Is no
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system Gigabyte Turbo Fan
• Fans, piece 1
• Version of OpenGL 4.5
• Illumination is not present
• Occupied slots (width) 2.7
• General height of a product (H), mm 35.1
• Total length of a product (L), mm 272
• General width of a product (W), mm 113.65
• Colour (main) Black
• packaging Type box
• Complete set (cart-ny of change in different deliveries) 1 x the quick guide, 1 x a compact disk with drivers
