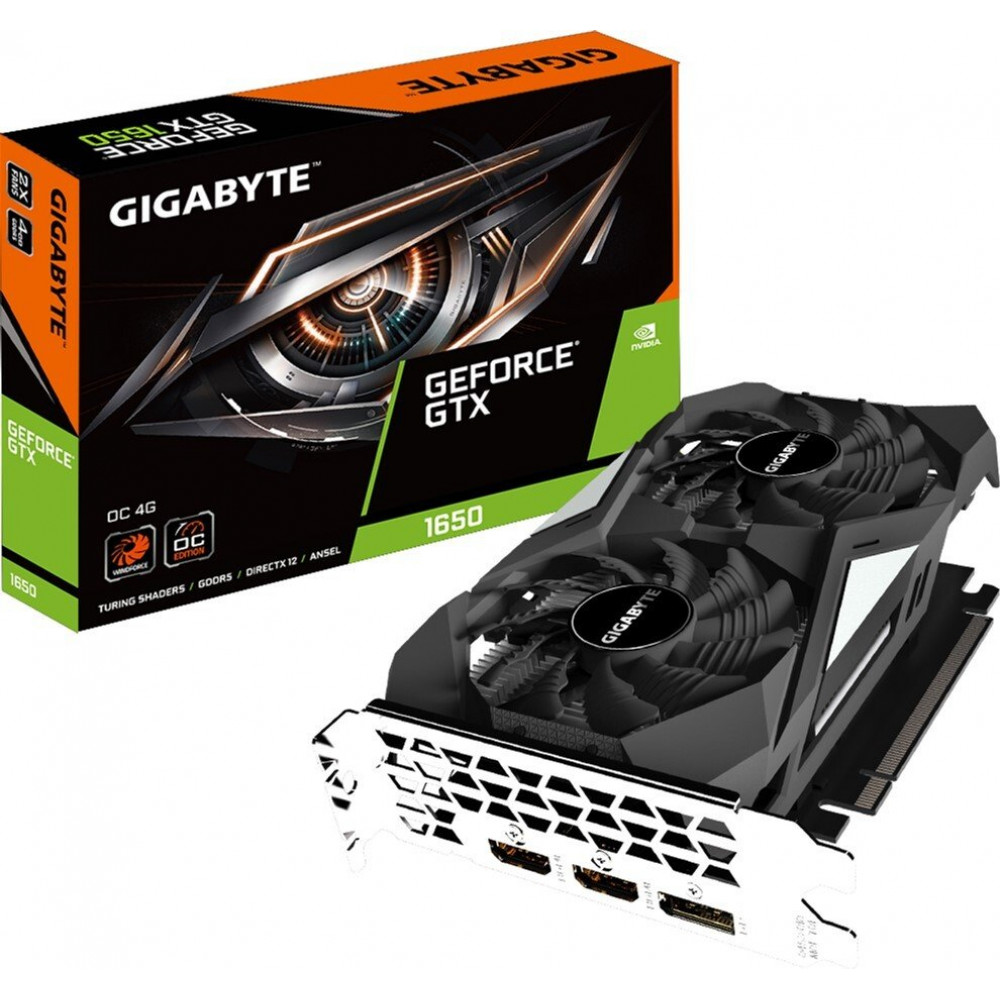

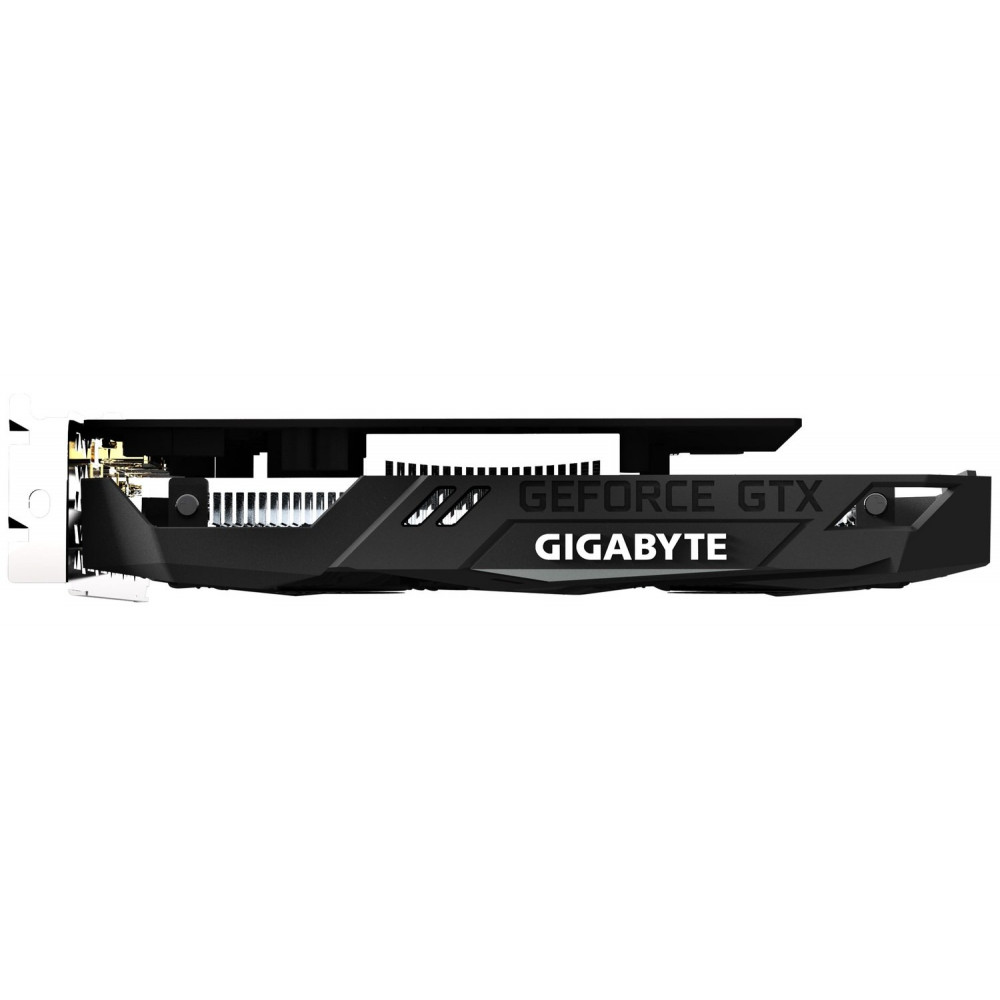

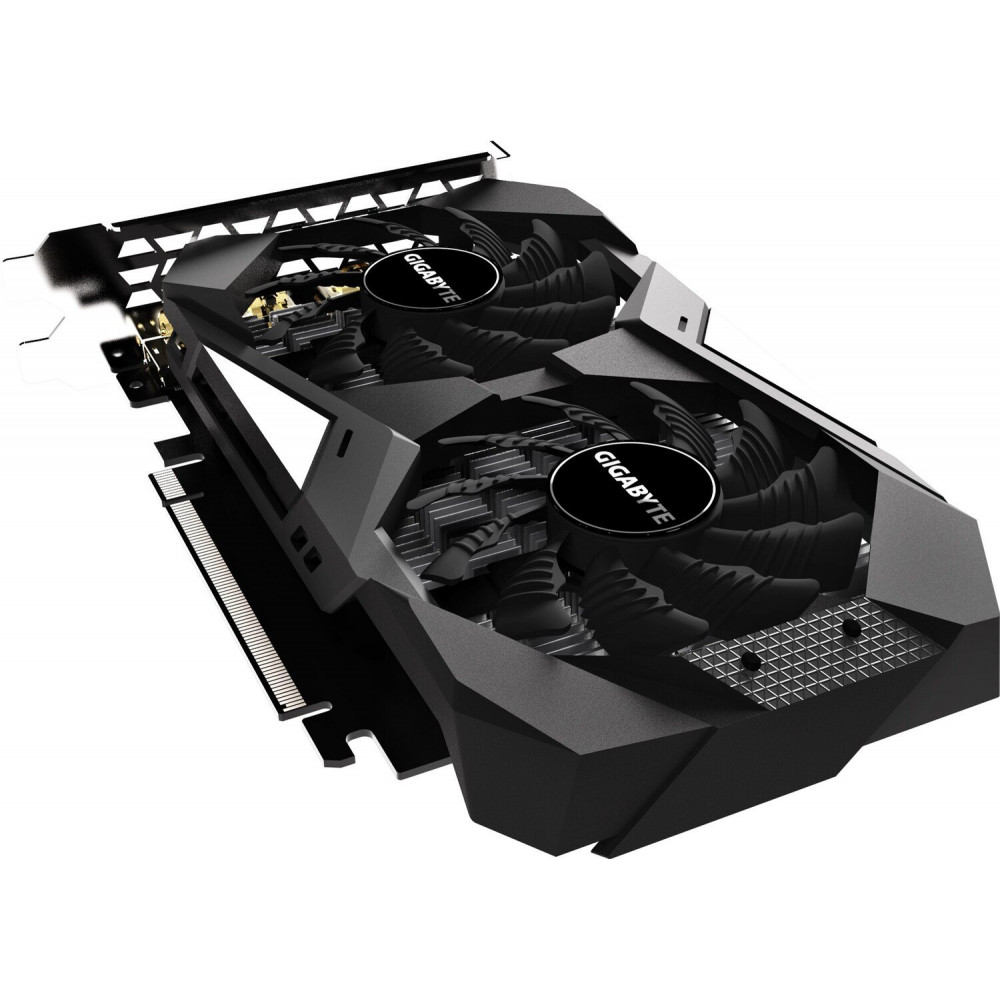

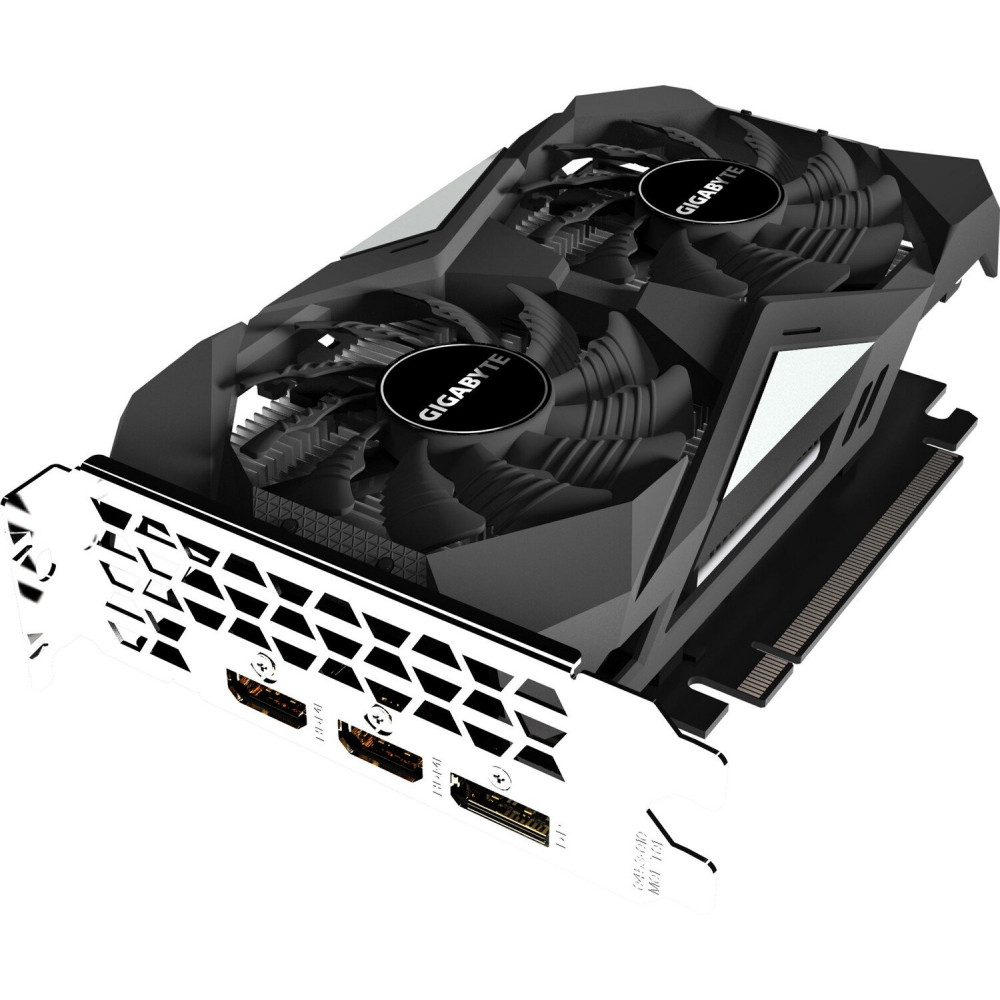

Description Video card GIGABYTE GeForce GTX 1650 4GB of GDDR5 OC (GV-N1650OC-4GD)

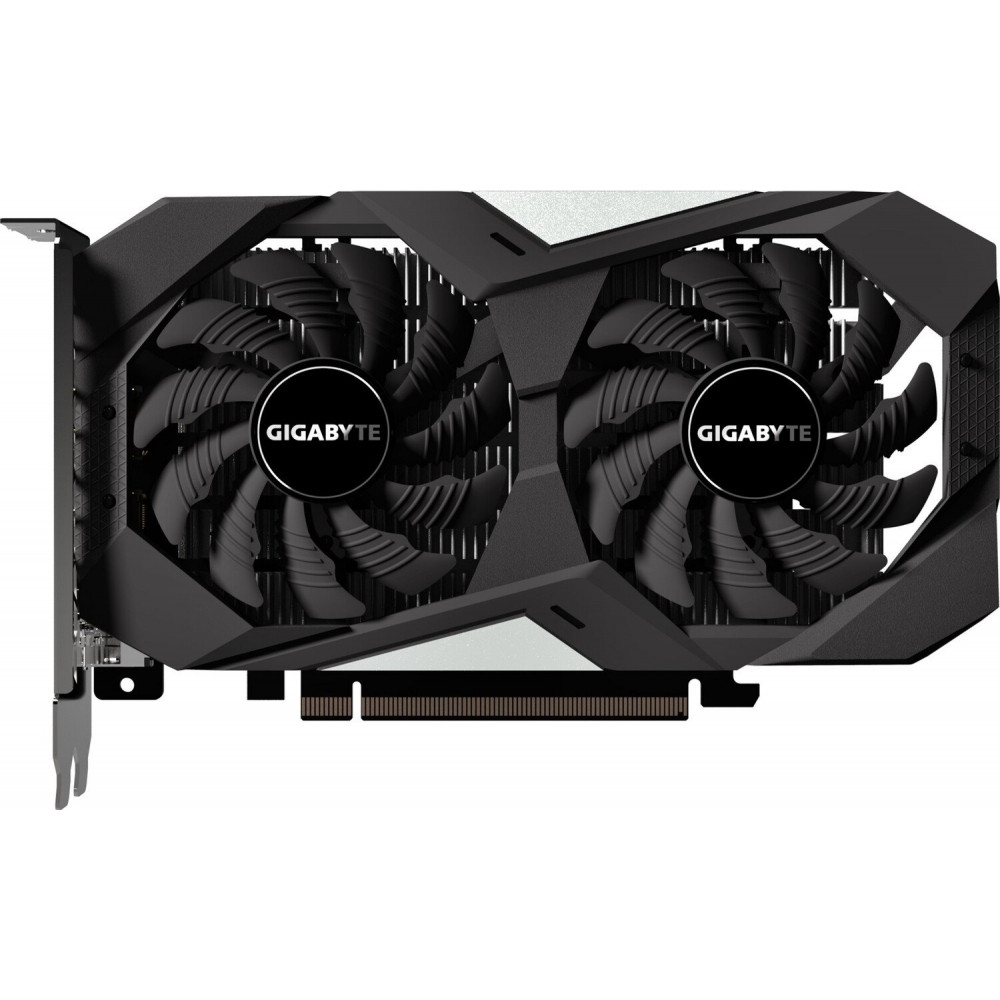

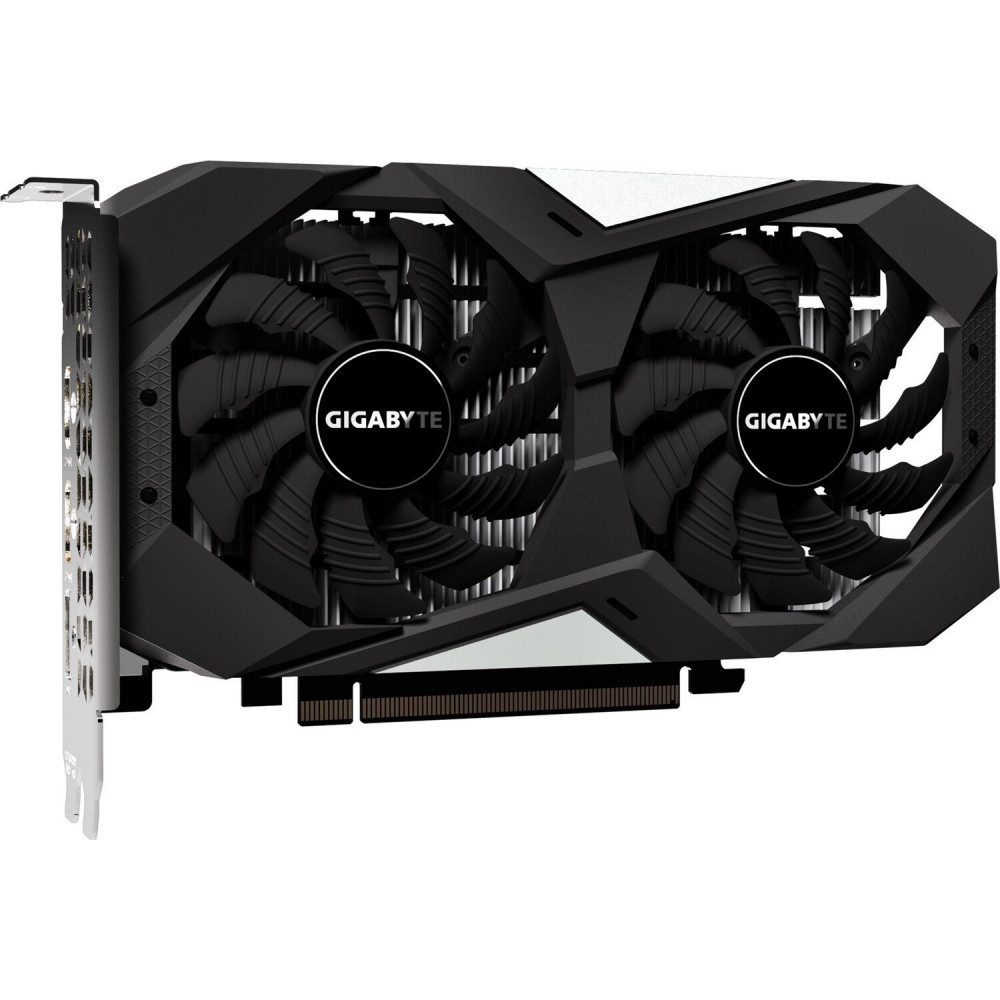

WINDFORCE 2X COOLING SYSTEM

by means of two fans of 80 mm with unique design of the blades having an alternative rotation sense, 2 copper composite heat-removing tubes with technology of direct contact. All this allows to increase effectively heat sink level, for achievement of high performance at low temperatures.

ALTERNATIVE ROTATION of FANS

unique Alternate Spinning technology Patented by GIGABYTE allows to distribute optimum turbulent flows in relation to the cooling system on the basis of several fans. If the rotation sense of fans matches, the probability of emergence of turbulent flows (turbulences of air masses between the next fans) which reduce efficiency of the settlement scheme of the heat sink is high. Engineers of GIGABYTE offered original option of interaction of three fans when the central fan rotates in the alternative direction. Thus, it is possible to optimize distribution of air flows between fans and to considerably reduce negative effect of turbulence.

UNIQUE DESIGN of BLADES of FANS

Air volume in the set zone is cut by blades of a special profile with finning which help to increase air flow pressure.

3D ACTIVE FANS

Means of 3D Active technology organized the semi-passive scheme cooling, fans remain switched off when GP is in a status of the lowered loading, servicing not resource-intensive applications. Thanking 3D Active поклонники of computer games can focus on game process as noise from the working cooling system of a graphics card completely is absent.

ULTRA COOLING

Special component design of MOSFET with the low parameter (RDSon) allows to reduce resistance when switching that allows to reduce control circuit temperature.

LOW POWER LOSSES

Steel throttles keeps energy much longer, than normal gap chokes at a high frequency, thereby effectively reducing losses of energy and a noise from electromagnetic interferences.

INCREASED SERVICE LIFE

use condensers with extremely low equivalent series resistance (ESR parameter) that in turn increases product service life.

Cover of the interface and functionality of the application can differ with

UNDER COMPLETE CONTROL

Characteristic Video card GIGABYTE GeForce GTX 1650 4GB of GDDR5 OC (GV-N1650OC-4GD)

• Video card (model) NVIDIA GeForce GTX 1650
• Processor (clock speed of GPU/Boost), MHz 1665/1710
• Video card (memory size) 4 GB
• Video card (memory type) gDDR 5
• Bitness of the memory bus, bit 128
• Frequency of operation of the memory bus, MHz 8002
• Additional power Without additional power
• Version of DirectX 12
• Occupied slots (width) 2

• Class game
• Guarantee, month. 36
• Technology NVIDIA ANSEL, NVIDIA G-Sync
• Video card (model) NVIDIA GeForce GTX 1650
• Processor (clock speed of GPU/Boost), MHz 1665/1710
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 896
• Video card (memory size) 4 GB
• Video card (memory type) gDDR 5
• Bitness of the memory bus, bit 128
• Frequency of operation of the memory bus, MHz 8002
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards is not present
• Additional power Without additional power

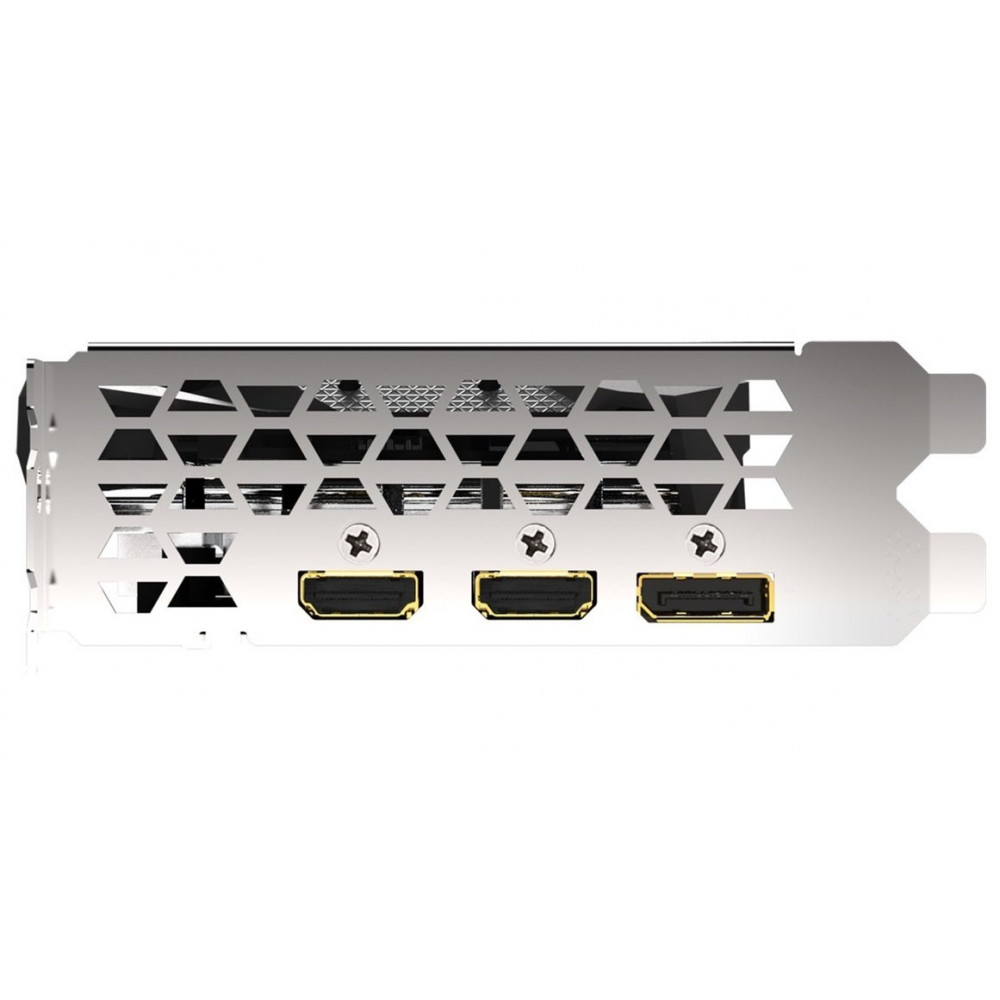

• DisplayPort (mini/micro) Port 1 of x DisplayPort v1.4
• HDMI (mini/micro) Port 2 of x HDMI v2.0b
• Port DVI there is no
• VGA (D-Sub) Port there Is no
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system Gigabyte Windforce 2X
• Fans, piece 2
• Version of OpenGL 4.5
• Illumination is not present
• Occupied slots (width) 2
• General height of a product (H), mm 36
• Total length of a product (L), mm 191
• General width of a product (W), mm 112
• Colour (main) Black
• packaging Type box
• Complete set (cart-ny of change in different deliveries) 1 x the quick guide, 1 x a compact disk with drivers
