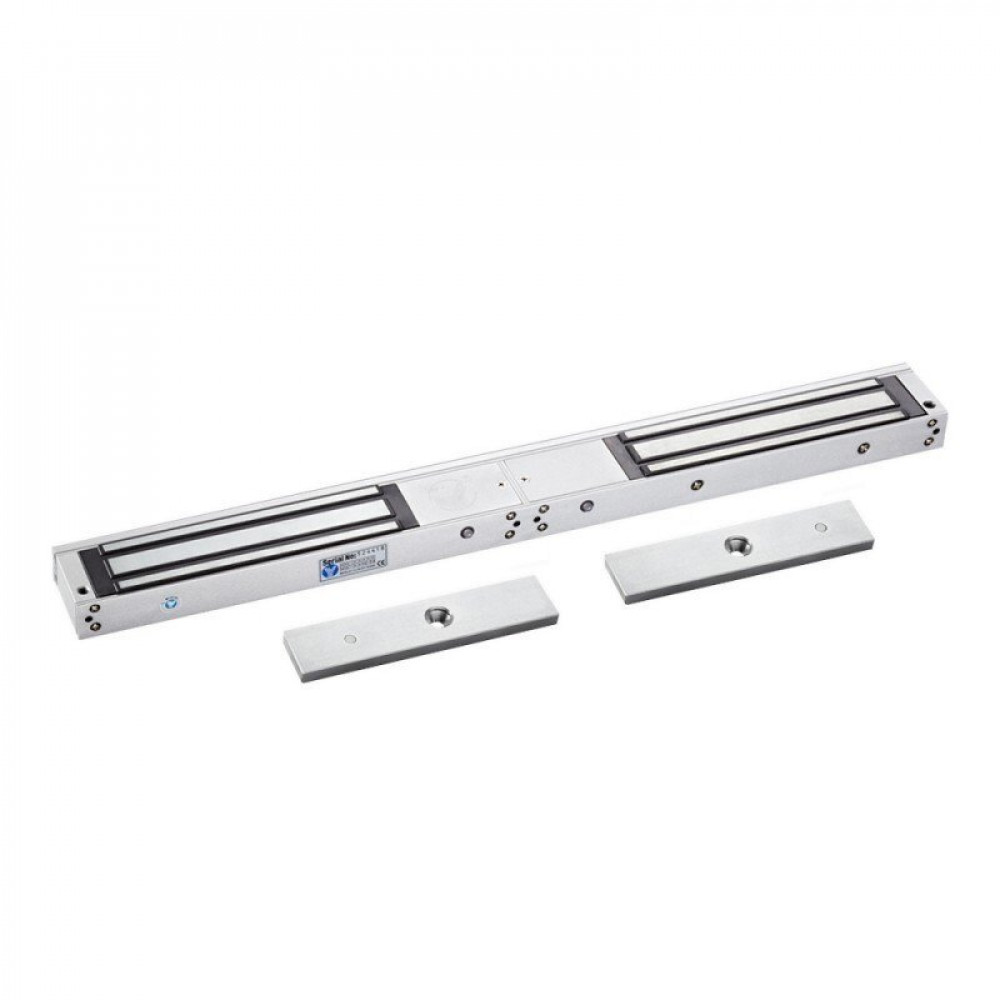

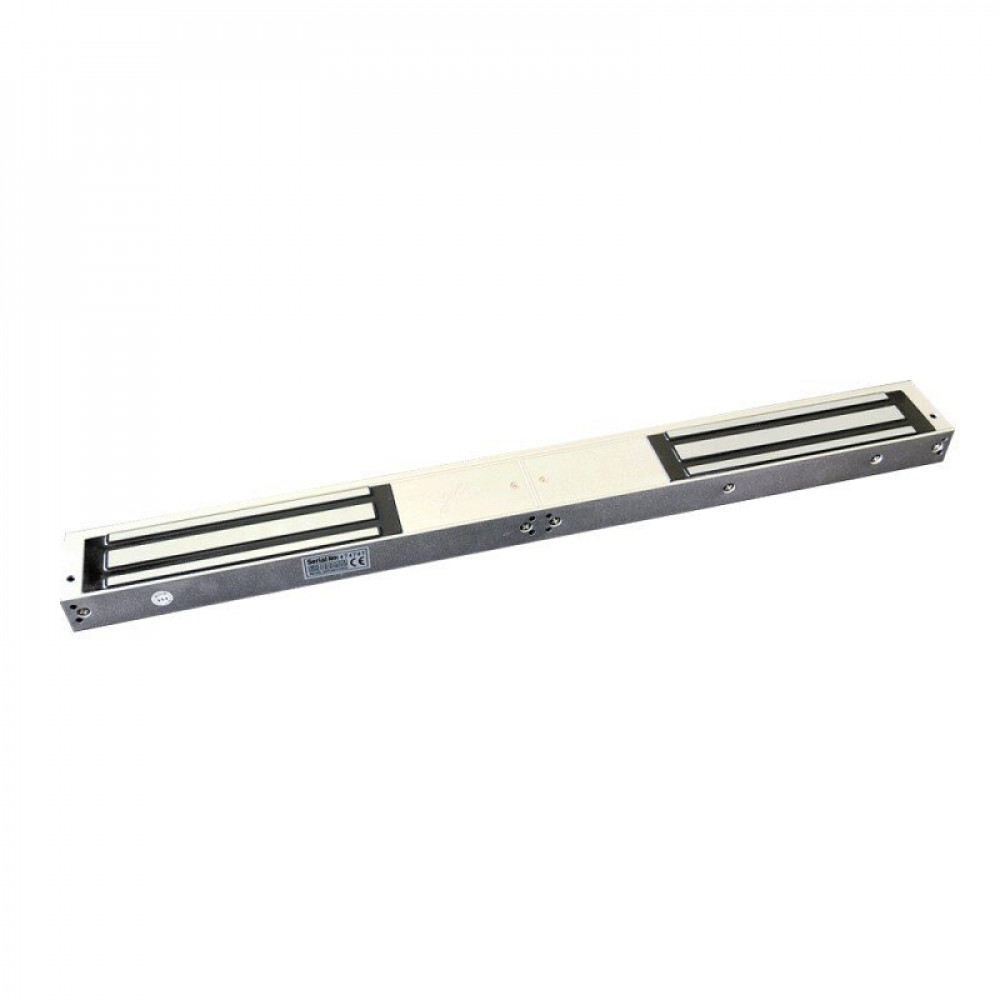

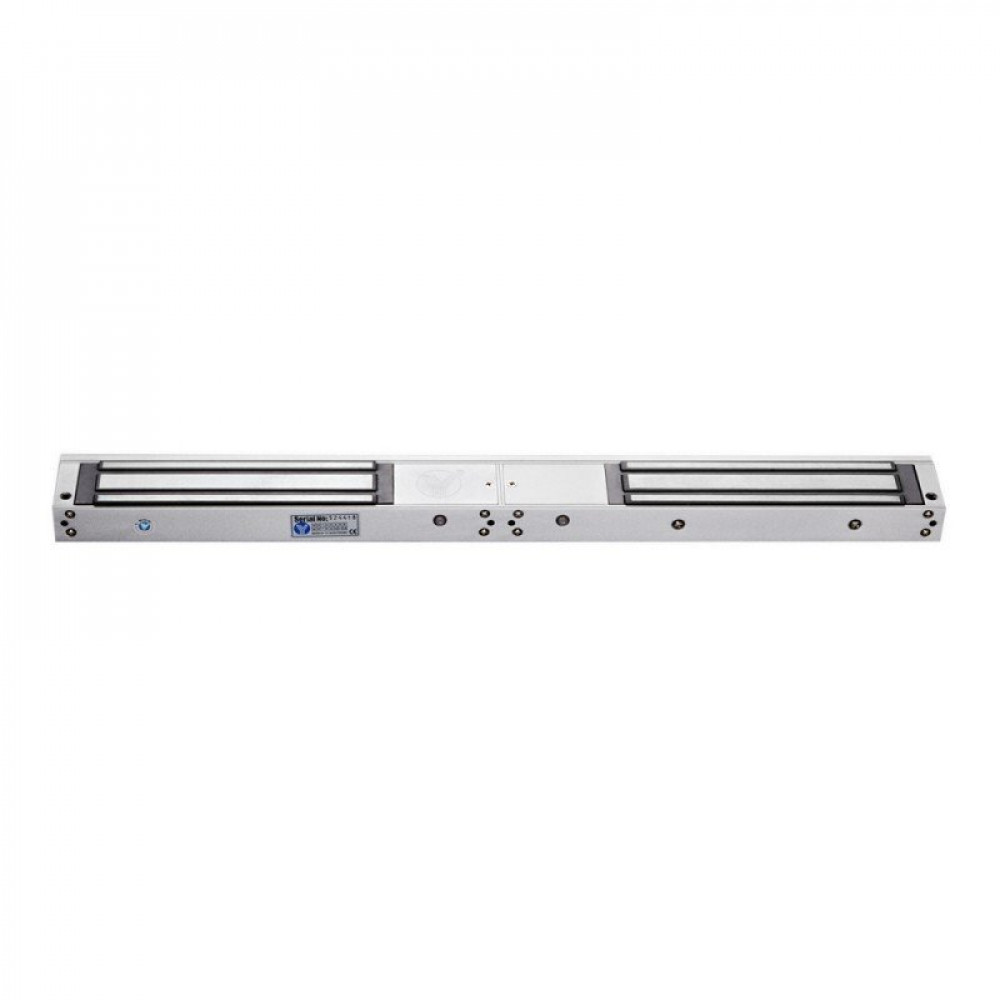

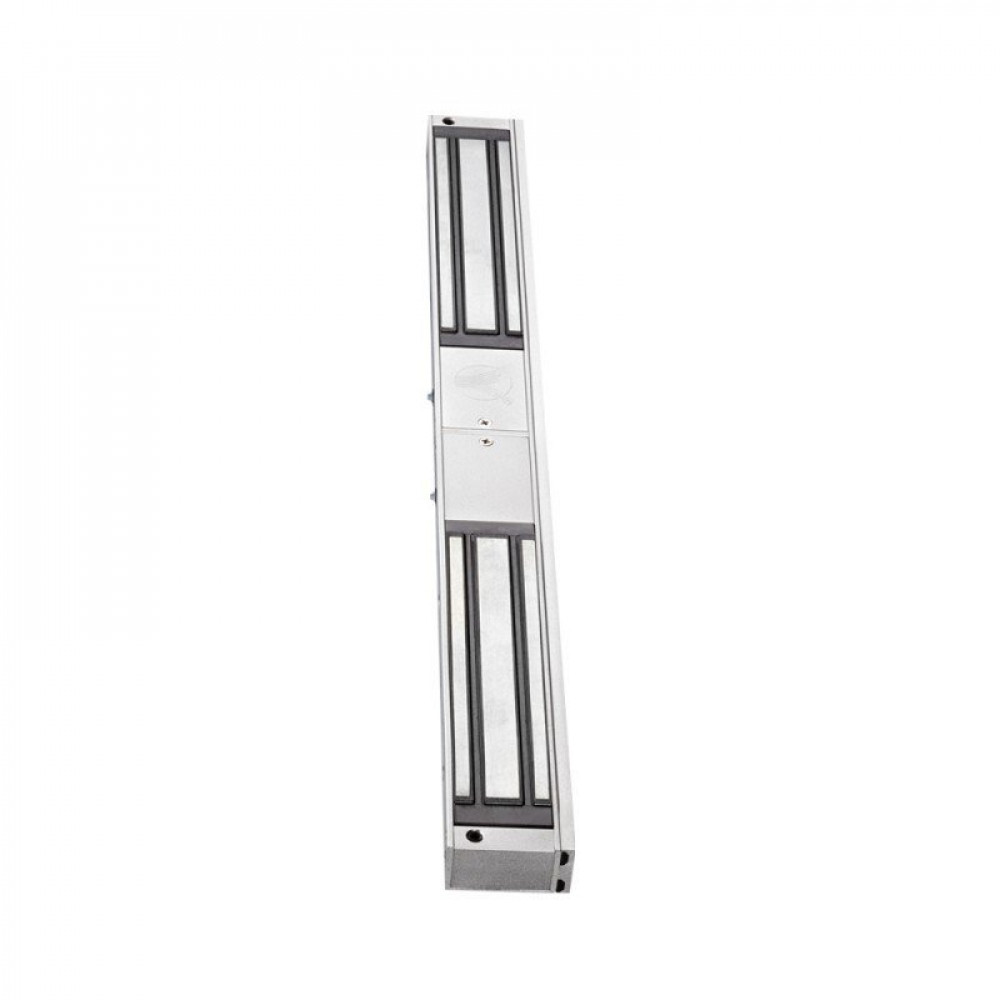

Description Smart Home YLI Electronic YM-280ND Electromagnetic lock

for locking of swing doors. The principle of operation of the device is based on a magnetic attraction. The lock consists of the block with an electromagnet and a response level from metal with high-magnetic permeability. The block with an electromagnet is installed on a door box, and a response level – on a door. At power supply the lock primagnichivat and holds a response level, locking a door. In the absence of power supply the electromagnetic lock automatically opens that conforms to requirements of fire safety.

Electromagnetic locks are used in the access control systems (ACS). Are intended for installation on metal, plastic, metalplastic, wooden doors.

Feature:

1. Installation on swing metal, plastic, metalplastic, wooden, fire-prevention doors;
2. Laid on type of mounting;
Sils
3. deduction on a rupture of 2*280 kg;
4. Power of DC12V or DC24V is switched by a jumper on the lock;
5. Energy consumption 12V/2*500mA or 24V/2*250mA depending on input voltage;
6. lock housing Material - anodized aluminum; a response part - zinc;
7. Sizes of the lock of 500х48.8х27.9 mm; response level: 180х38.8х13 mm.

Characteristic Smart Home YLI Electronic YM-280ND Electromagnetic lock

• case Material Metal
