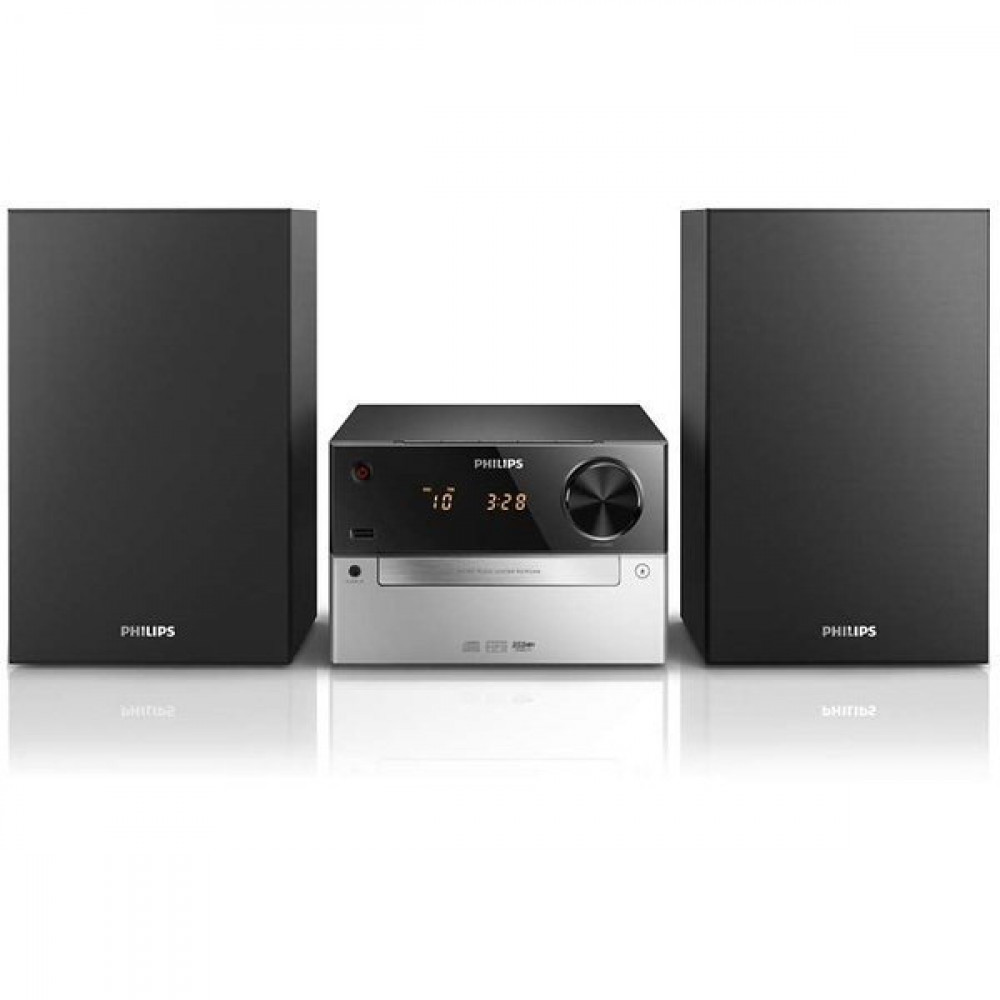

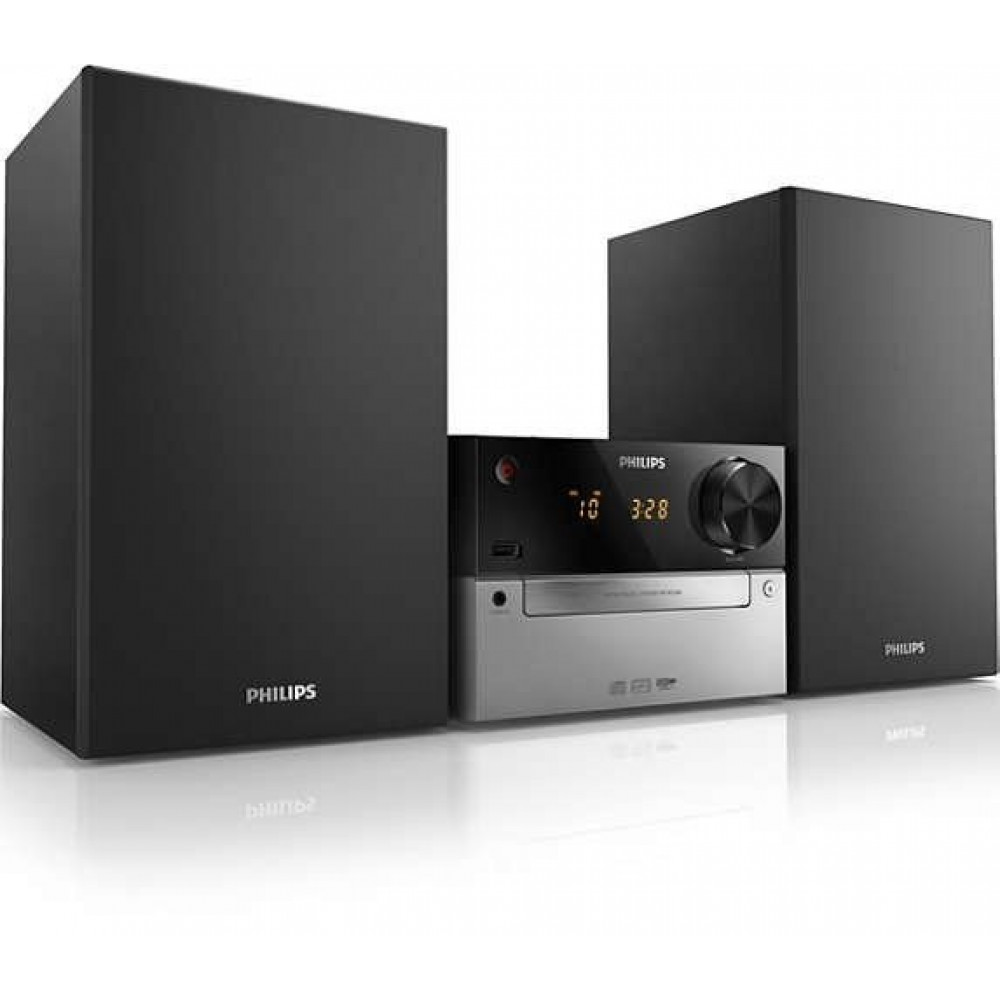

Description Microsystem of Philips MCM2300 (MCM2300/12)

Listen to favourite music on the compact universal musical system of Philips with USB port, an audio input and the CD support. The EXPERT of Bass Reflex for powerful sounding and digital control by a sound for optimal adjustments.

powerful and deep bass

Bass Reflex Speaker system provides deep sounding of basses, despite the compact case. Its difference from normal systems consists in use of the phase inverter which is acoustically configured under the LF emitter for optimization of playback of low frequencies. Result — the best control of basses and distortion reduction. The principle of system operation consists in resonating of air mass in the phase inverter creating vibration as well as in the normal LF emitter. In combination with characteristics of the LF emitter the system expands the general range of low frequencies that allows to achieve deep spatial sounding of basses.

Digital tuner with presets for additional convenience

Just configure the necessary station, and then click and hold Preset to save frequency. Thanks to function of saving the preset radio stations it is possible to get quickly access to favourite radio station, without configuring it manually every time.

Audio input for listening of music from portable devices

Audio input allows to play back files via the audioconnector directly from portable mediaplayers. In addition to an opportunity to enjoy favourite music in magnificent quality on the audio system, connection through an audio input also is incredibly easy to use — the portable MP3 player can be connected easily via the audioconnector.

Playback of MP3-CD, CD and CD-R/RW

Term "MP3" means "MPEG of 1 Audio layer-7.6 cm (3)". MP3 format is a revolutionary technology of compression thanks to which big musical files of digital record are compressed in sizes up to 10 times without cardinal deterioration of their sounding. MP3 format became the standard format of compression of audiodata used on the Internet and allows to execute fast and simple transfer of audiofiles.

Direct connection of USB for playback of a MP3

Thanks to a universal possibility of transfer of files is so simple to get access to musical files through direct port USB.

Loader of compact disks with the electric drive for convenience of access

Door with the electric drive on the front panel gives to this elegant audio system special charm. The stylish and functional tray for a disk smoothly moves forward up or down in the vertical direction, it is worth wanting to replace music and to press the button. Relax and enjoy music from a favourite disk, observing as it rotates, through a transparent viewport.

Digital control by a sound

by means of digital control by a sound for different musical genres can select the suitable modes: "Balanced", "Clean", "Powerful", "Warm" or "Bright". The graphic technology of alignment automatically configures balance and strengthens the audio frequencies, the most important for the selected musical genre. You will be able to configure optimum sound balance for each musical genre and to derive the maximum pleasure from listening.

Sound

• Improvement of a sound digital control by a sound
• Maximum output power (mean square) 15 W

tuner/reception/transfer

• Ranges of the FM tuner mono, stereo FM
• Saving radio stations 20
• Antenna the Fixed flexible FM antenna
• Improvement of the tuner automatic digital adjustment, autosearch

Connection

• USB USB Port
• Audio input (3.5 mm) Yes

Function of management

• Alarm clocks CD Signal, the Sound signal with radio, USB Signal
• Hours On the main display the shutdown timer
• display Type the LED display
• loader Type a tray

Power

• Power supply of 100 — 240 V pery. current, 50/60 Hz

Loudspeakers

• EXPERT Emitters 3" the LF loudspeaker
• EXPERT Types Bass Reflex Speaker systems

Playback modes of disks

• fast scanning forward/back
• search of the following/previous track
• repetition / in a random order / the program

Supported media media

• CD
• CD-R/RW
• MP3-CD
• USB Flash drive

Playback modes directly through USB port

• quickly back/quickly forward
• playback/pause
• previous/following
• repetition
• alternately
• feet

Accessories

• accessories which are included in the package the Power cord of the alternating current main, Antenna FM, the user guide
• Remote control panel 21-button, remote

Sizes

• Shirin of the main device of 180 mm
• Height of the main device of 121 mm
Glubins
• main device of 247 mm
Shirins
• main EXPERT of 150 mm
• Height the main EXPERT of 238 mm
Glubins
• main EXPERT of 125 mm
• Net weight of 3.55 kg

Characteristic Microsystem of Philips MCM2300 (MCM2300/12)

• Type Microsystem
• Total power 15 W

• Type Microsystem
• Number of channels 2.0
• Total power 15 W
• Equalizer Is
• Amount of presets of an equalizer 5
• Supported formats MP3
• Support of media CD, USB
• Karaoke there Is no
• FM tuner is
• Number of the preset stations 20
• RDS Support there is no
• Display LED display
• Power 100 — 240 V pery. current, 50/60 Hz
• Colour Silvery
• Complete set remote control panel, antenna, power cord.
Additional characteristics Bass Reflex Speaker systems
