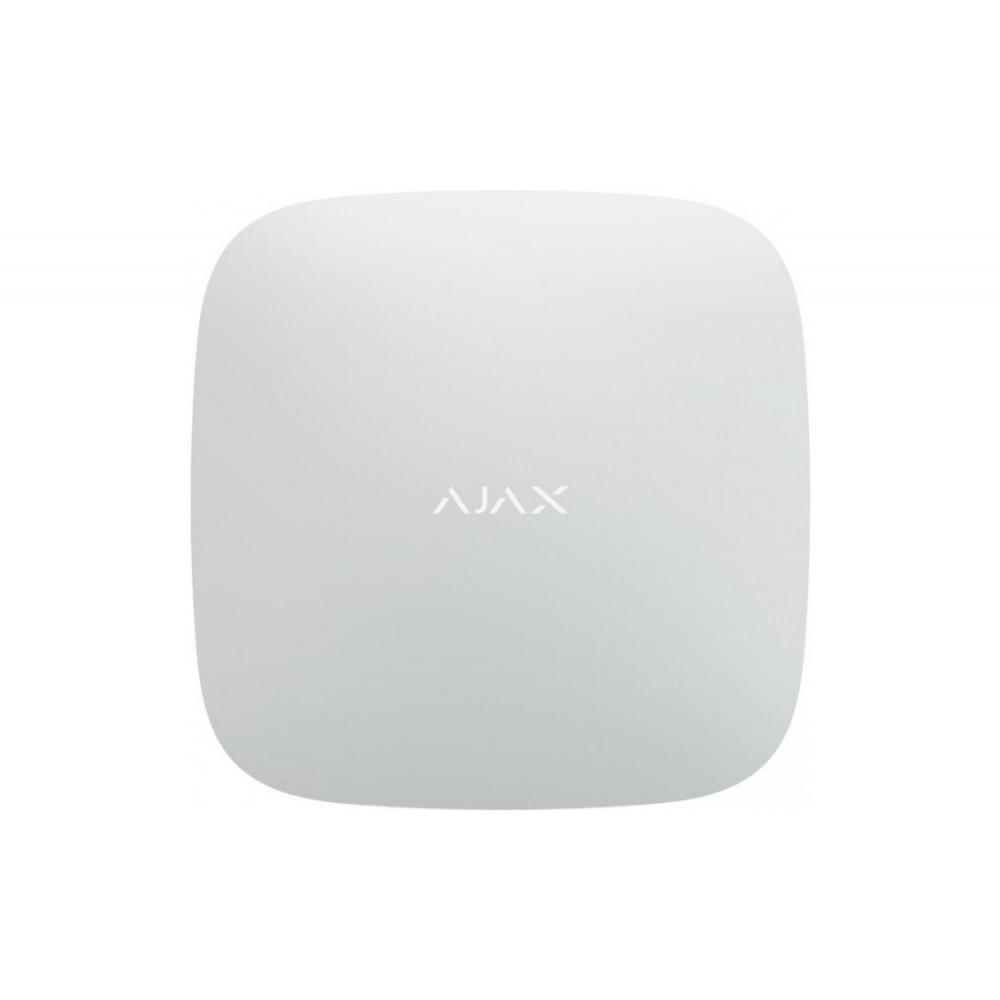

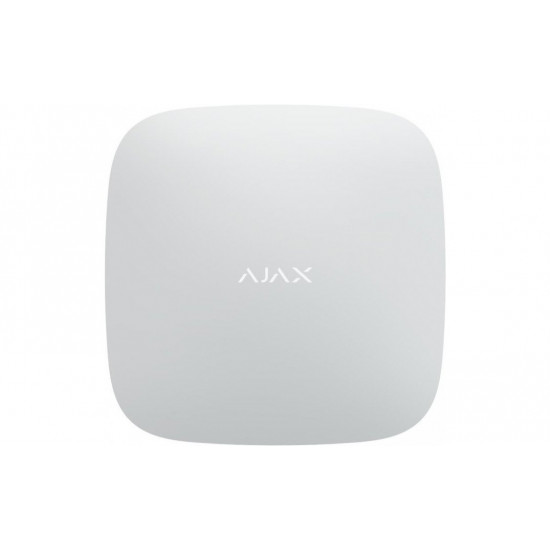

Description Intellectual center of a security system Ajax Hub Plus, white

Intellectual main line of the second generation with four communication links, the new powerful processor, three times large volume of random access memory and with the doubled volume a flash memory. Hub Plus controls operation of all Ajax sensors and instantly notifies on alarms of the owner of a system and the security company.

in big squares
Hub Plus it is created for protection of big objects with a set of rooms and people. The new powerful processor and the increased memory size were extended by possibilities of a main line: about 150 sensors and 50 cameras are connected to a hub, it is possible to add 99 users and to create 25 groups for management of protection of rooms.

alarms the maximum quantity of the ways
Hub Plus is an all-around champion by quantity of communication links: the main line is connected to the Internet on Wi-Fi, Ethernet, WCDMA and GSM. Together it provides superstable connections and instant sending alarms for the smartphone of the owner and the receiver.

is Increased by stability of mobile communication by 4 times
In Hub Plus the GSM module with slots for two SIM cards with support 2G and 3G is installed. Now it is possible to use cards of two different operators and not to be afraid of interruptions in communication. The hub instantly switches between networks 2G and 3G. If one SIM card does not answer, the second is automatically involved.

is Provided by more reliability
Hub Plus gives the chance to back up Internet connection, having connected a main line to networks of two independent providers: the main — through Ethernet, and reserve on Wi-Fi. If there is a failure in work of one of providers, the hub will stay in touch and will continue to control a situation on an object.

Simplifies installation and mounting

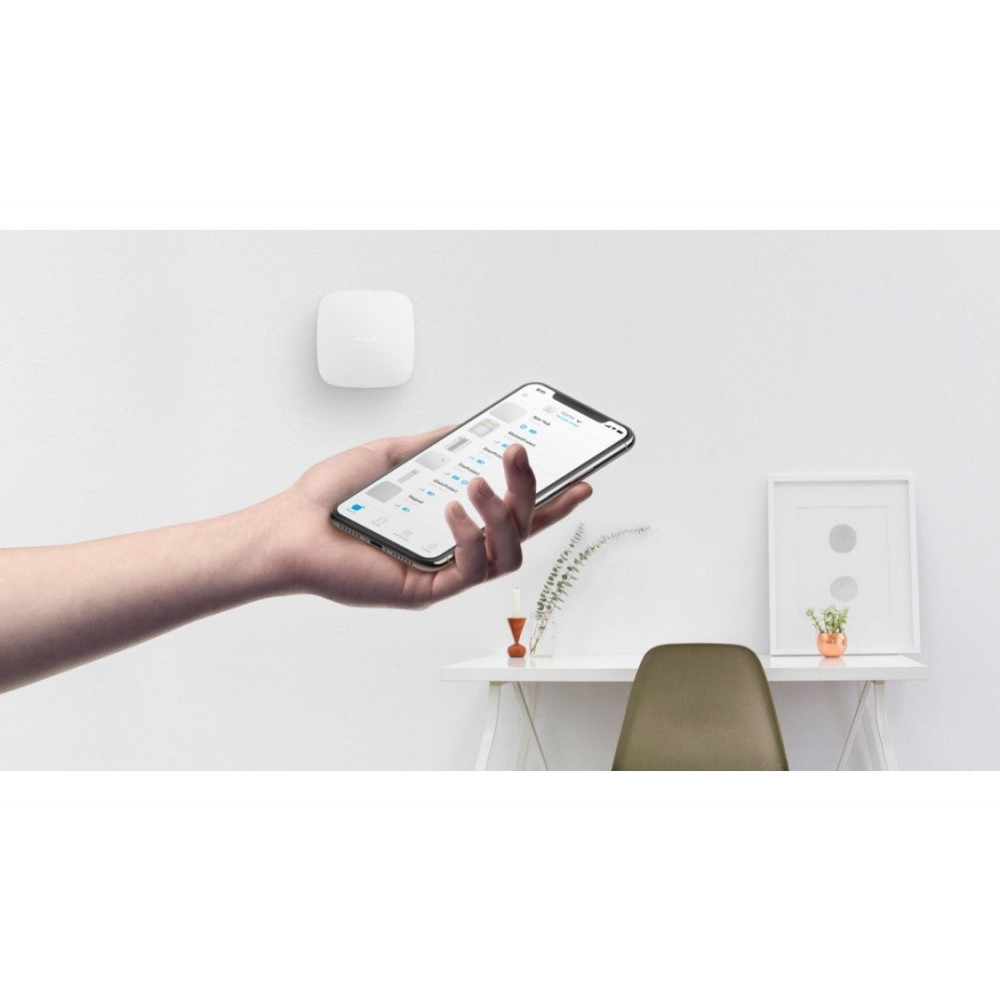

In Hub Plus appeared the Wi-fi module therefore now it is optional to lay a cable to be connected to the router. The main line is ready to work from a box. It is configured by means of mobile application, and sensors are connected in one click. It is mounted in several minutes thanks to fastening of SmartBracket.

Characteristic Intellectual center of a security system Ajax Hub Plus, white

• Standard of communication Wi-fi
• Upravleniye through local access, remote access
• Maximum number of the connected devices 150
• Possibility of support of scripts/schedule yes

• Type controller
• Standard of communication Wi-fi
• Upravleniye through local access, remote access
• Maximum number of the connected devices 150
• Possibility of support of scripts/schedule yes
• Fast installation Yes
• Remote access Yes
• Expansibility Yes
• Upravleniye TV Yes
• Upravleniye the conditioner Yes
• Upravleniye of audio the equipment Yes
• transfer Radio frequency 868.42 MHz
• case Material Plasticity
• Sizes 162.7х162.7х35.9
• Additional opportunities protection against overheating
• Operating temperature range from -10 °C to +40 °C
• Working humidity up to 75%
• Guarantee, month
