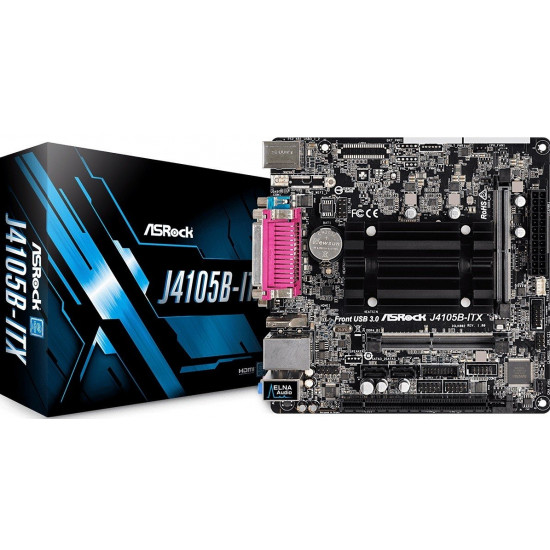

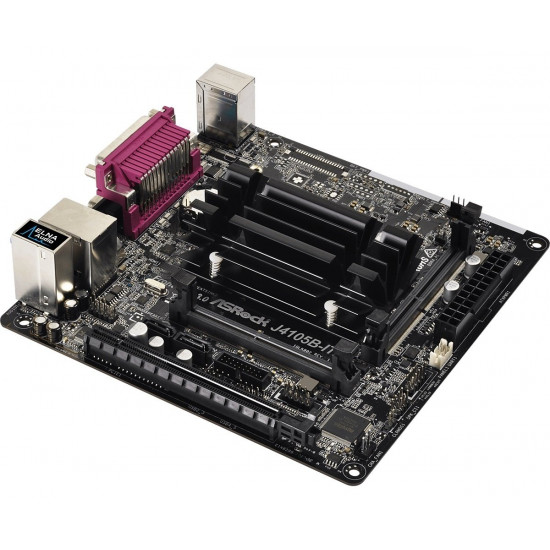

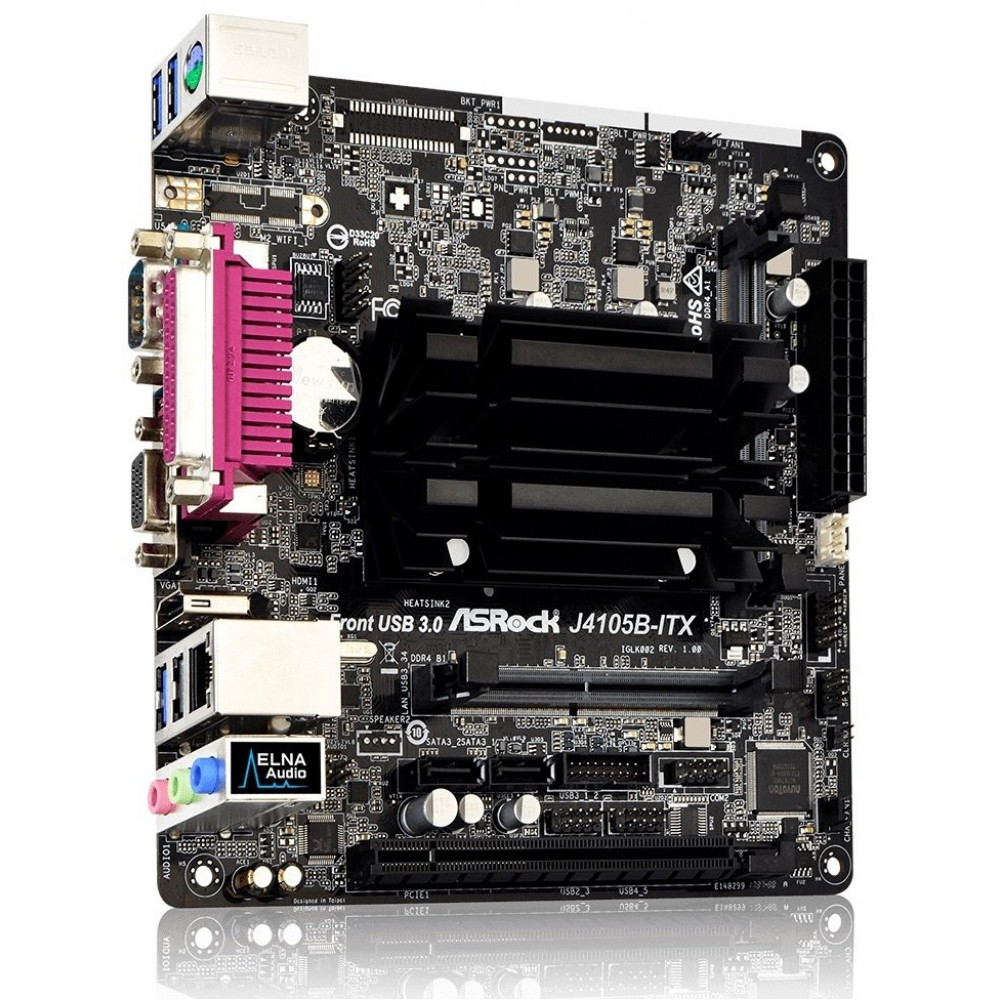

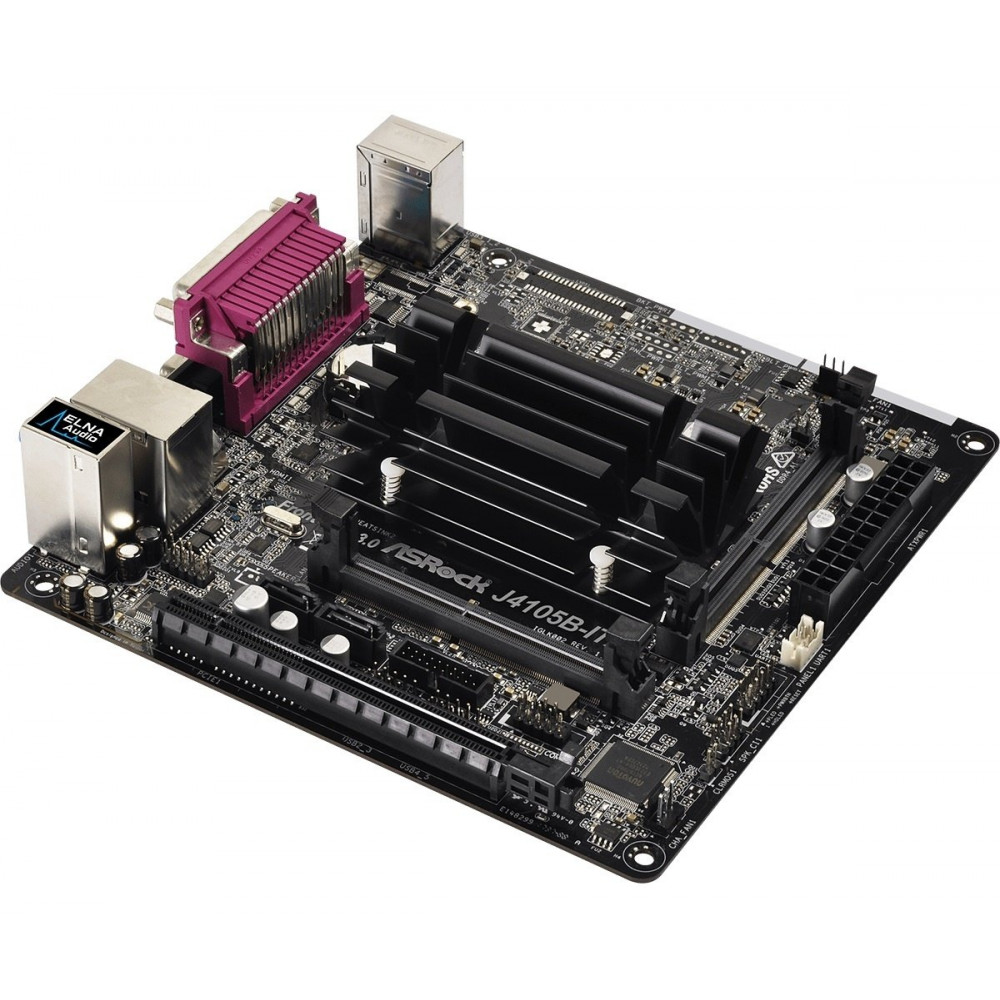

Description ASRock J4105B-ITX Motherboard

ASRock Super Alloy
Intel processor Quad-Core J4105 (up to 2.5 GHz)
DDR4 2133/2400 SO-DIMM Support
1 PCIe 2.0 x16 (h2)
Device of graphic data output: D-Sub, HDMI
7.1-channel HD codec (Audiokodek of Realtek ALC887), ELNA Audio-condensers
2 SATA3
5 USB 3.1 (2 lobbies, 3 back)
Full Spike Protection, ASRock Live Update & APP Shop

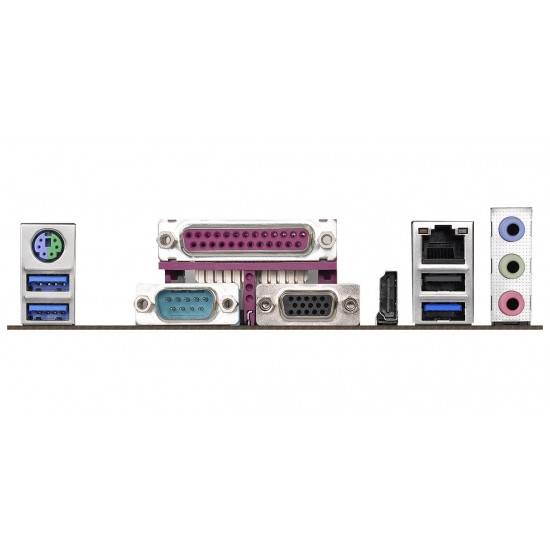

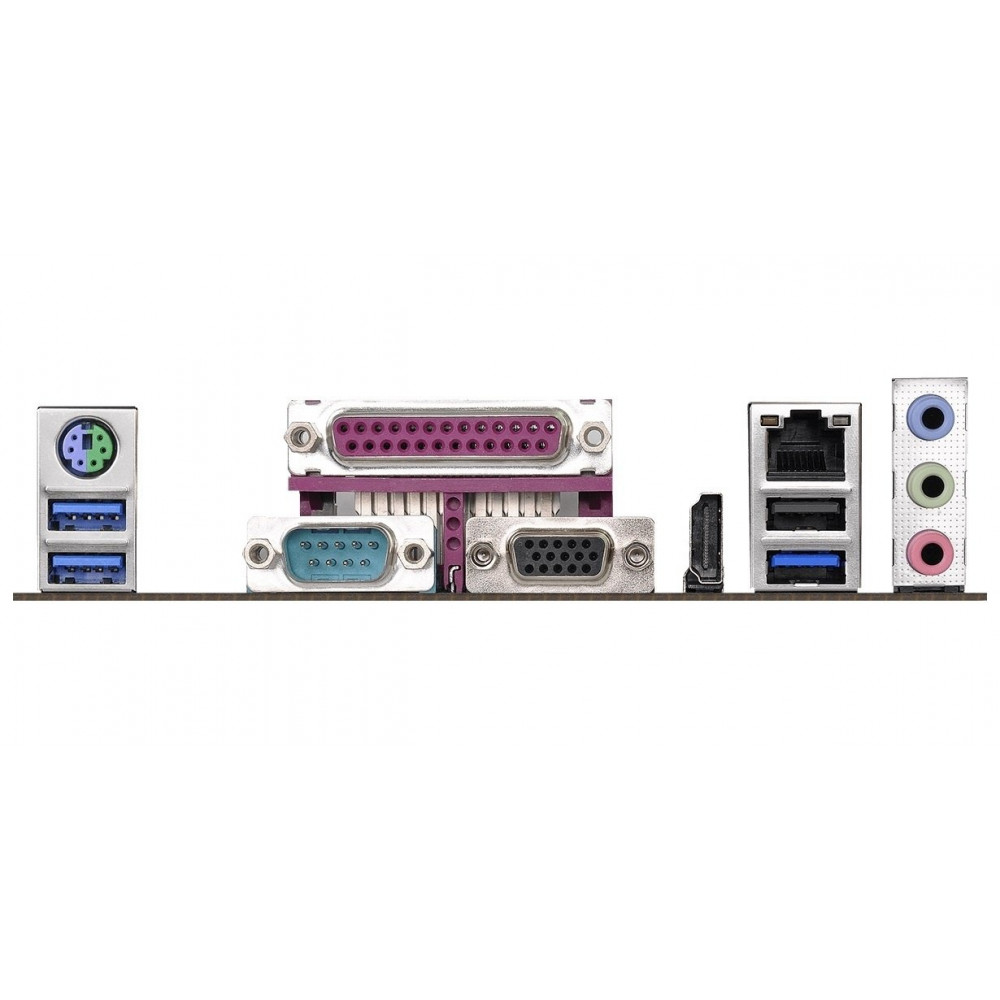

Connectors D-Sub, HDMI, Parallel, COM
onboard are available COM connectors + port of the printer + D-Sub + HDMI. I will corrode HDMI supports video output in the Blu-ray (BD) Full HD 1080p format.

Decoding/coding of HEVC of 10 bits Supports by
10-bit coding / decoding of HEVC 10-bit for ensuring the best quality and depth of immersion to the world of modern video.

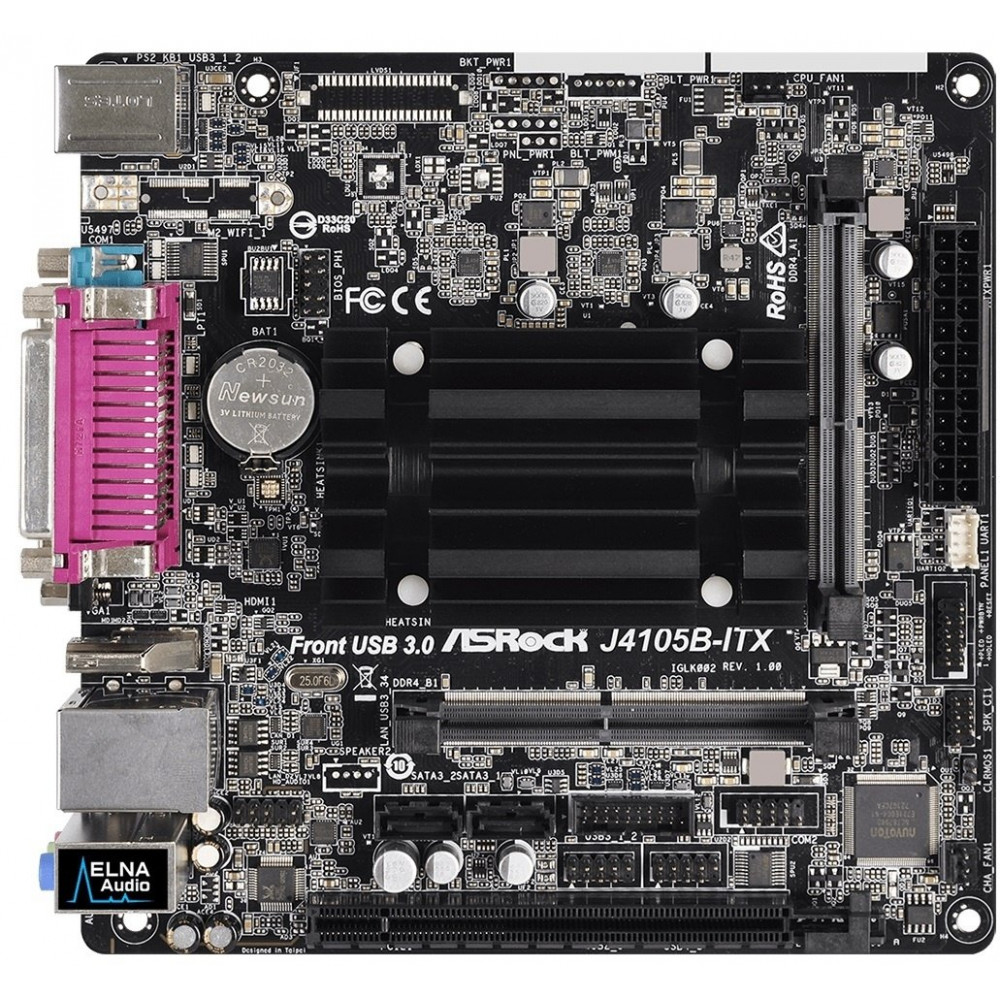

Printed circuit board of high density
New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

Black sapphire
Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Intel Quad-Core Processor J4105 (Up to 2.5 GHz)

Characteristic ASRock J4105B-ITX Motherboard

Article: span do not have J4105B-ITX

Form factor mini-ITX
Processor (socket type) built-in processor
Model of the built-in processor Intel Quad-Core J4105 (up to 2.5 GHz)
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset SoC
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no
Model of the built-in video card Intel UHD Graphics 600

Assignment for home and office PCs
Form factor mini-ITX
Guarantee, month 24
Processor (socket type) built-in processor
Model of the built-in processor Intel Quad-Core J4105 (up to 2.5 GHz)
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece is not present
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset SoC
PCI Express Slot (PCI-E x16 (x16)), piece 1 of x PCI-E x16 (x16) of v2.x
PCI Express Slot (PCI-E x16 (x8)), piece is not present
PCI Express Slot (PCI-E x16 (x4)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece there is no
Slot of PCI, piece there is no
AGP Slot there is no
Type-C/Thunderbolt 3 USB 3.1 Port there Is no
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 2 x USB 3.0/3.1 of Gen 1 Type-A (on a payment, for a frontal output), 3 x USB 3.0/3.1 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 1 x USB 2.0 Type-A, 4 x span do not have USB 2.0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port 1 x VGA
Port DVI, piece
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port there is no
DisplayPort (mini/micro) Port there Is no
PS/2 Port, piece 1
COM (RS-232) Port 1, 1 (on a payment, for a frontal output)
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece 1
Connector of the TPM module, piece is not present
Number of SATA3 ports (6gbit/c), piece 2
Number of SATA2 ports (3gbit/c), piece is not present
Number of SATA Express ports (to 10gbit/c), piece is not present
Mini PCI Express (Mini PCI-E, piece do not have Socket 3), is not present
Support of program RAID is not present
eSATA Port is not present
Quantity of eSATA, piece is not present
Number of IDE ports is not present
Slot for FDD is not present
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Realtek RTL8111H
Wireless interfaces (Wi-Fi) Is not present
Fastening for antenna Wi-Fi is not present
Wireless interfaces (Bluetooth/NFC)
Built-in sound processor Realtek ALC887
Multichannel sound 7.1
Connector 3.span do not have 5 mm (mini-Jack), piece 3
Optical output (S/PDIF)
Support of several video cards there is no
Built-in video is
Model of the built-in video card Intel UHD Graphics 600
BIOS Ami
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 170
General width of a product (W), mm 170
Illumination there Is no
Colour Dark gray ules wet asphalt anthracite, Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), 2
