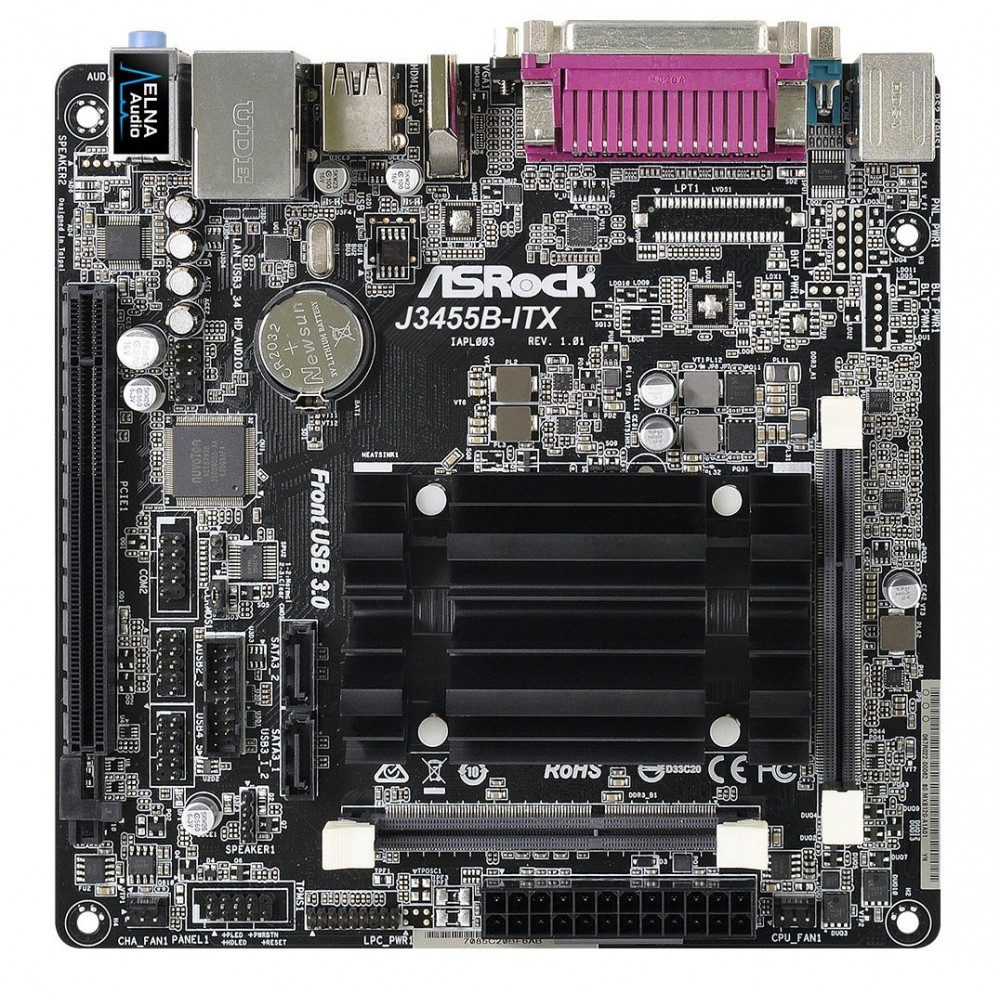

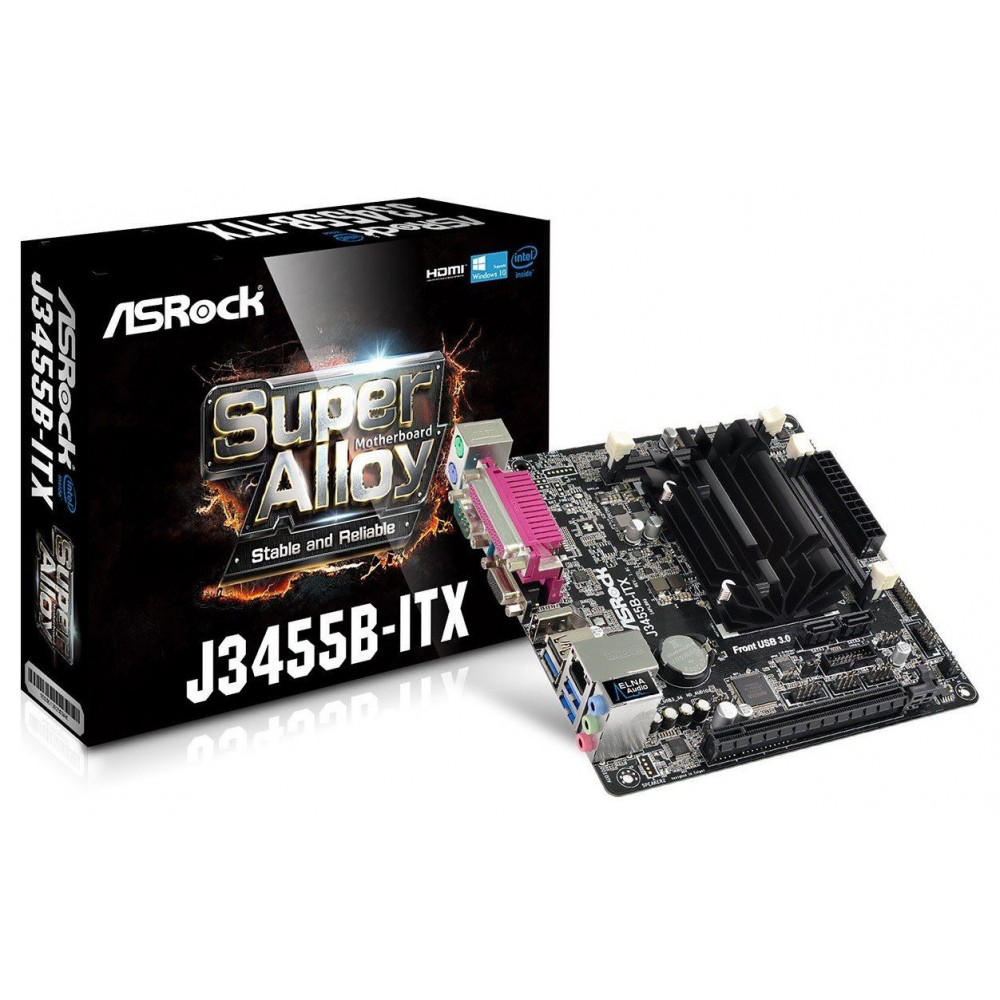

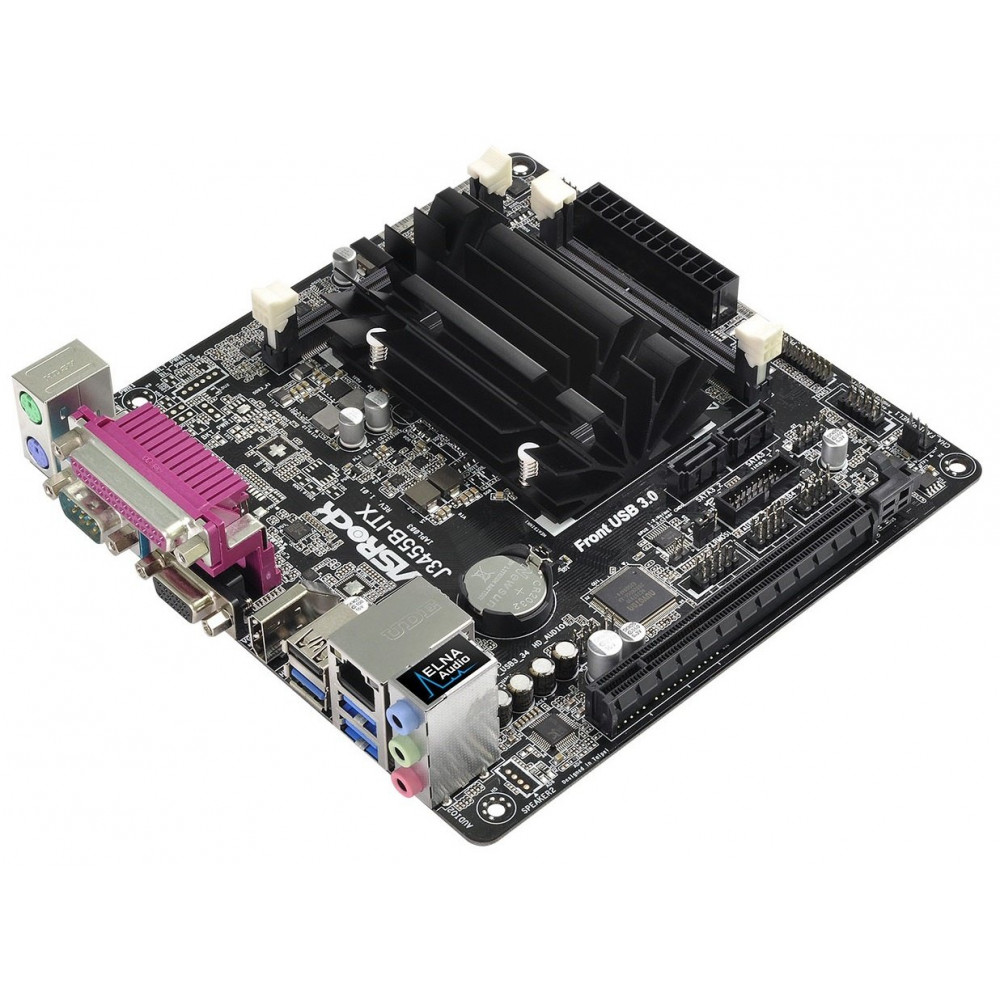

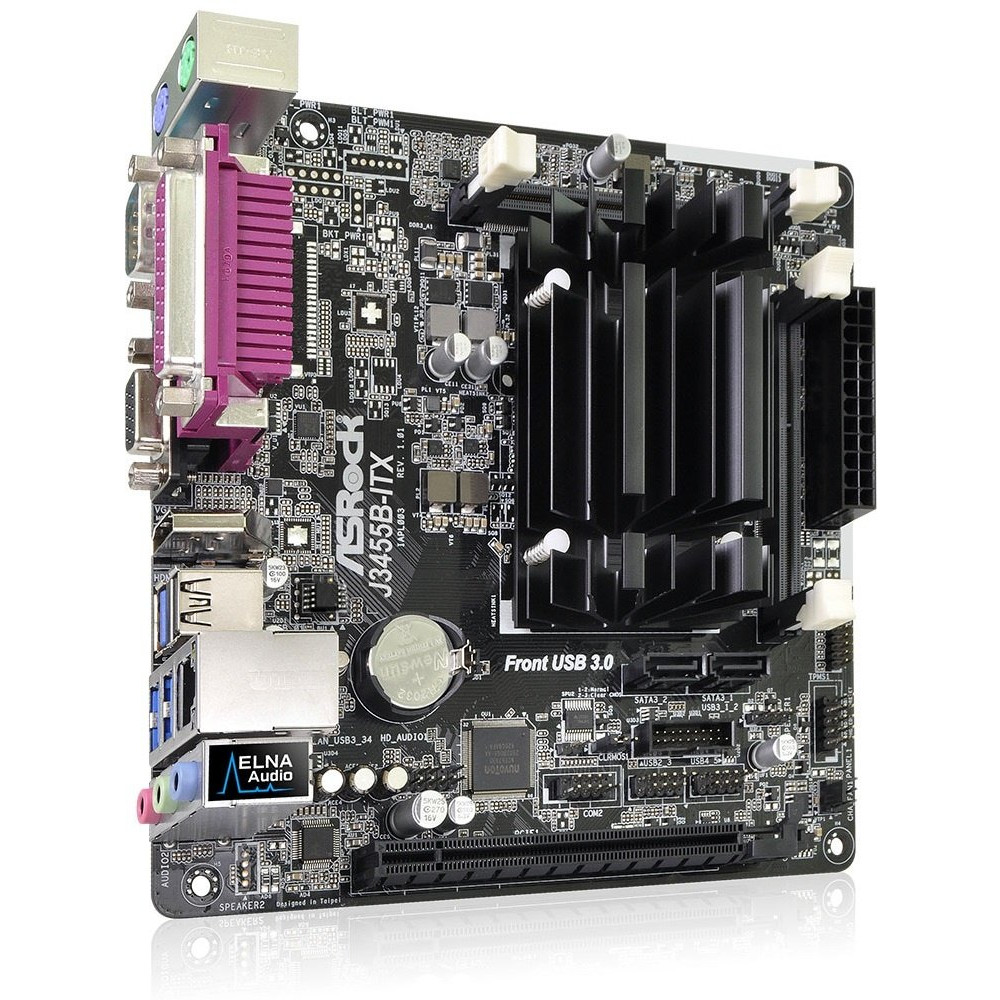

Description ASROCK J3455B-ITX Motherboard

High Density Glass Fabric PCB Is possible

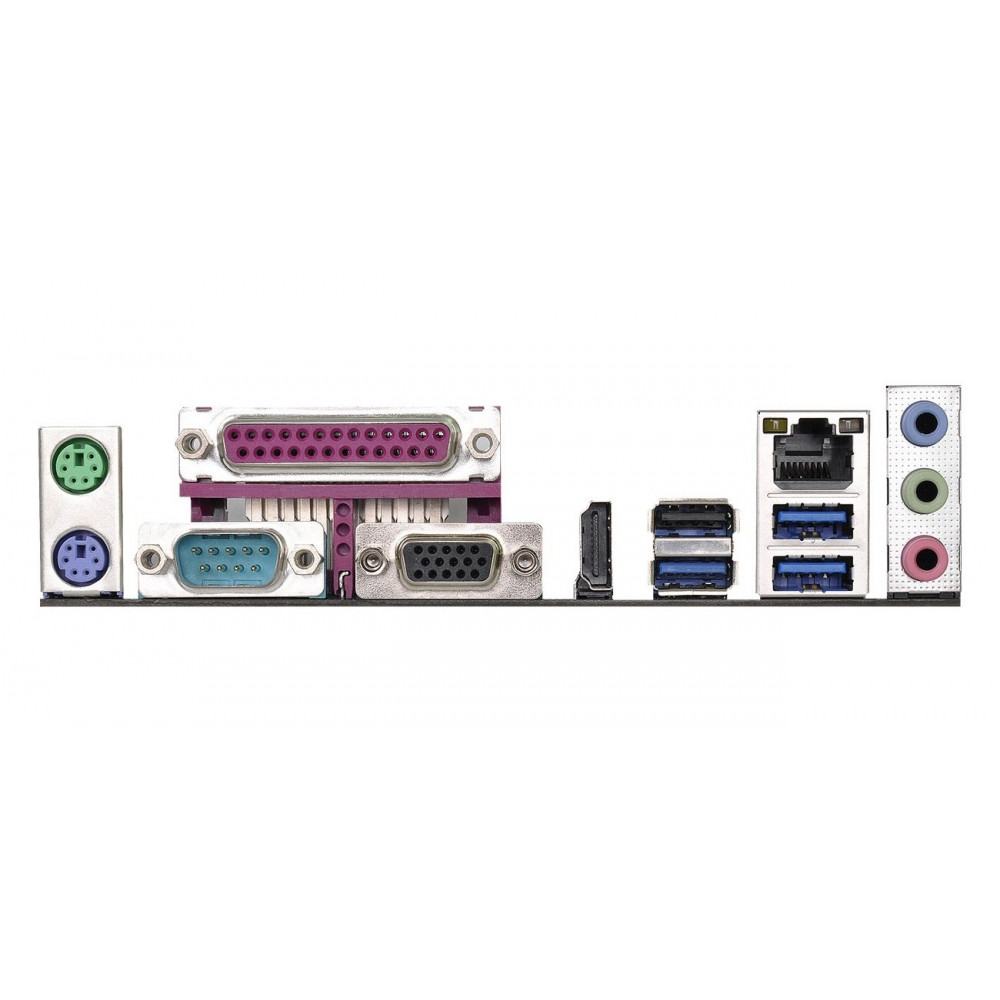

Connectors D-Sub, HDMI, Parallel, COM
onboard are available COM connectors + port of the printer + D-Sub + HDMI. The HDMI connector supports video output in the Blu-ray (BD) Full HD 1080p format.

Processor Intel® Quad-Core J3455 (up to 2.3 GHz) the Increased performance, the cut power consumption and new opportunities of multimedia.

Support of the SO-DIMM modules of the standard and lowered tension. The SO-DIMM modules of the standard and lowered tension are supported.

Random access memory 16GBKazhdyy the slot supports by

memory modules on 8GB, two slots maintain memory 16GB.

Power modes. Select one of three operation modes (Eco, Normal or Sport) for the maximum capacity or economy of energy. Use the Eco mode for economy of electricity when downloading torrents or on other simple tasks, the Normal mode – for work on the Internet and with documents, and then switch in the Sport mode for start of games or viewing video in format 4K.

Solid-state condensers
On this motherboard the ASRock company used only solid-state condensers. The motherboard will work with such condensers more steadily at the increased service life.

ELNA Audio-condensers
Who told that high-quality audio can be met only on class High-End motherboards? The ASRock company uses ELNA audio-condensers on motherboards of average and initial level! In comparison with normal condensers, at ELNA condensers the leakage current makes insignificant 3uA. It allowed to reduce considerably noise level that will be appreciated even by the most exacting listeners.

ASRock APP Shop is created by

Live Update & APP Shop for your convenience. We offer different applications and utilities for loading. Thanks to app store of ASRock APP Shop your motherboard and your system will always contain the latests version of software.

Some components of the motherboard are especially sensitive

Full Spike Protection differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

This product possesses the HDMI™ support (High-Definition Multimedia Interface) – the interface standard for transfer of an uncompressed flow of video of data and multichannel audio of a signal on one cable. Both video, and audio the flow transferred on a cable has a digital format without converting in an analog signal that allows to achieve the colourful image and the most realistic sound.

Characteristic ASROCK J3455B-ITX Motherboard

Article: span do not have J3455B-ITX

Form factor mini-ATX
Processor (socket type) built-in processor
Model of the built-in processor Intel of Celeron J3455 (Apollo Lake)
Random access memory of DDR4 (quantity of slots), piece
Random access memory of DDR3 (quantity of slots), piece 2
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset built in the processor
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no
Model of the built-in video card Intel HD Graphics 500

Assignment for the desktop computer
Form factor mini-ATX
Guarantee, month 24
Processor (socket type) built-in processor
Processor (quantity of socket) 1
Model of the built-in processor Intel of Celeron J3455 (Apollo Lake)
Random access memory of DDR4 (quantity of slots), piece is not present
Random access memory of DDR3 (quantity of slots), piece 2
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Random access memory (ECC support) there is no
Chipset built in the processor
PCI Express Slot (PCI-E x16 (x16)), piece 1 of x PCI-E x16 (x16) of v2.x
PCI Express Slot (PCI-E x16 (x8)), piece there is no
PCI Express Slot (PCI-E x16 (x4)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece is not present
Slot of PCI, piece is not present
AGP Slot is not present
Type-C/Thunderbolt 3 USB 3.1 Port Is not present
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.0/3.1 of Gen 1 Type-A (on a payment, for a frontal output), 3 x USB 3.0/3.1 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 1 x USB 2.0 Type-A, 2 x USB 2.span do not have 0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port 1 x VGA
Port DVI, piece 1 x DVI-D
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port
DisplayPort (mini/micro) Port there Is no
PS/2 Port, piece 2
COM (RS-232) Port 1, 1 (on a payment, for a frontal output)
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece 1
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), to piece 2
Number of SATA2 ports (3gbit/c), span do not have piece
Number of SATA Express ports (to 10gbit/c), span do not have piece
Mini PCI Express (Mini PCI-E, Socket 3), piece is not present
Support of program RAID there is no
eSATA Port there is no
Quantity of eSATA, piece there is no
Number of IDE ports there is no
Slot for FDD there is no
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Realtek RTL8111GR
Wireless interfaces (Wi-Fi) there Is no
Fastening for antenna Wi-Fi is not present
Wireless interfaces (Bluetooth/NFC) is not present
Built-in sound processor Realtek ALC887
Multichannel sound 7.1
Will corrode 3.5 mm (mini-Jack), piece 3
Optical output (S/PDIF) is not present
Built-in video is
Model of the built-in video card Intel HD Graphics 500
BIOS AMI UEFI
Cooling of the north-bridge is not present
Cooling of the south bridge is not present
General height of a product (H), mm 170
General width of a product (W), mm 170
Illumination Is not present
Colour Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 2
Complete set (cart-ny of change in different deliveries) 2 x of the SATA cables, a disk with software, a stub for the back panel of input-output, the installation instruction
