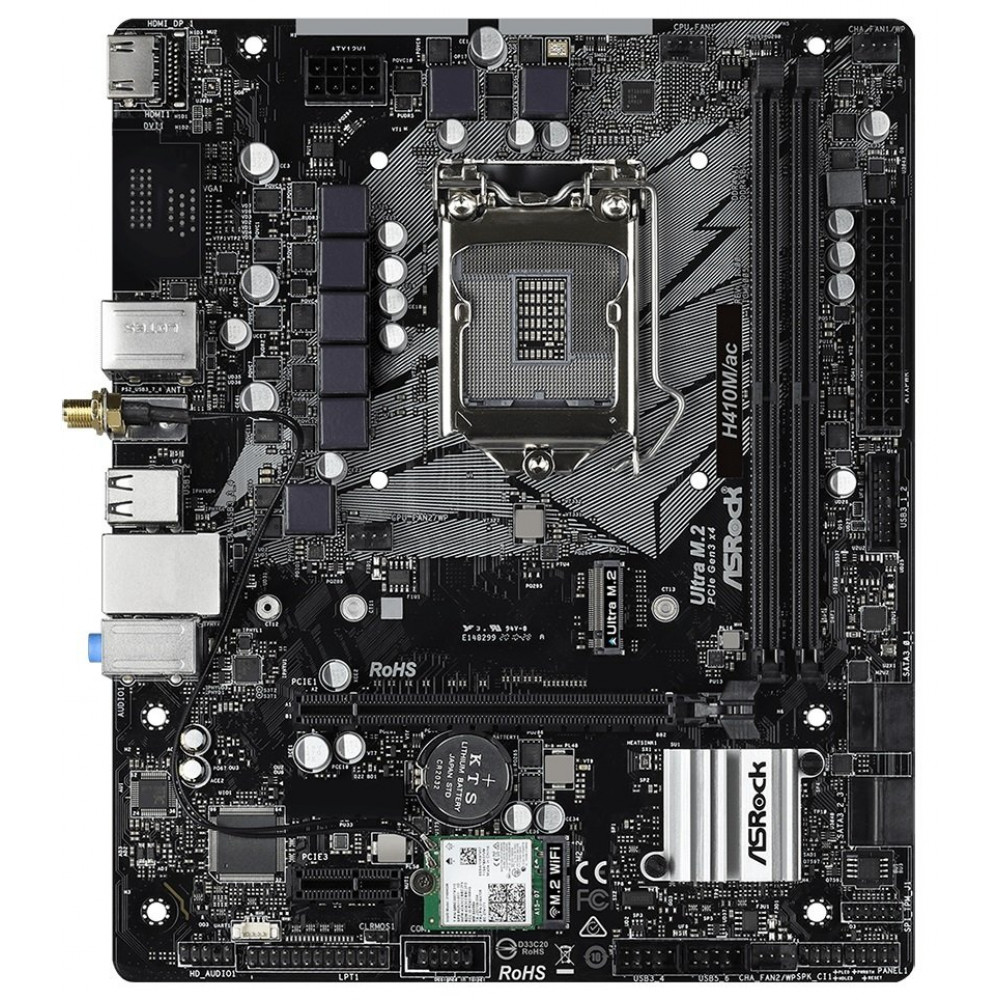

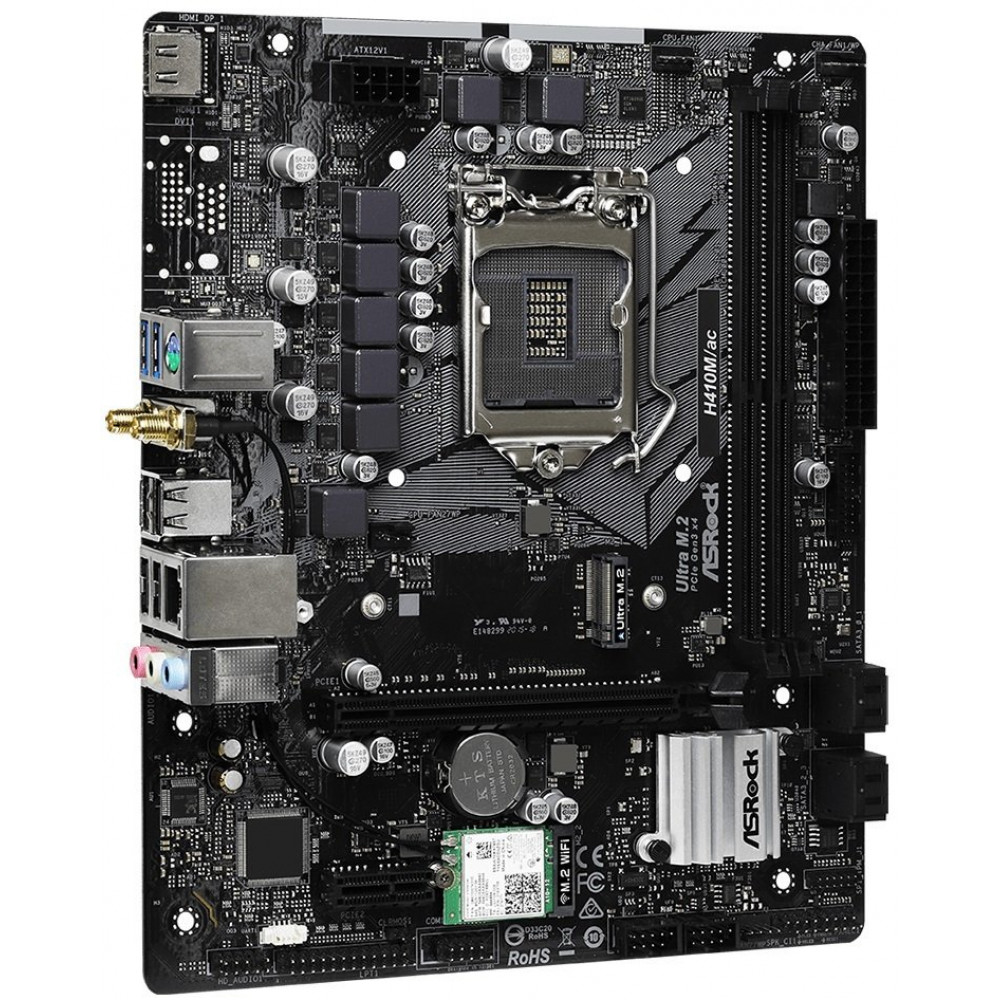

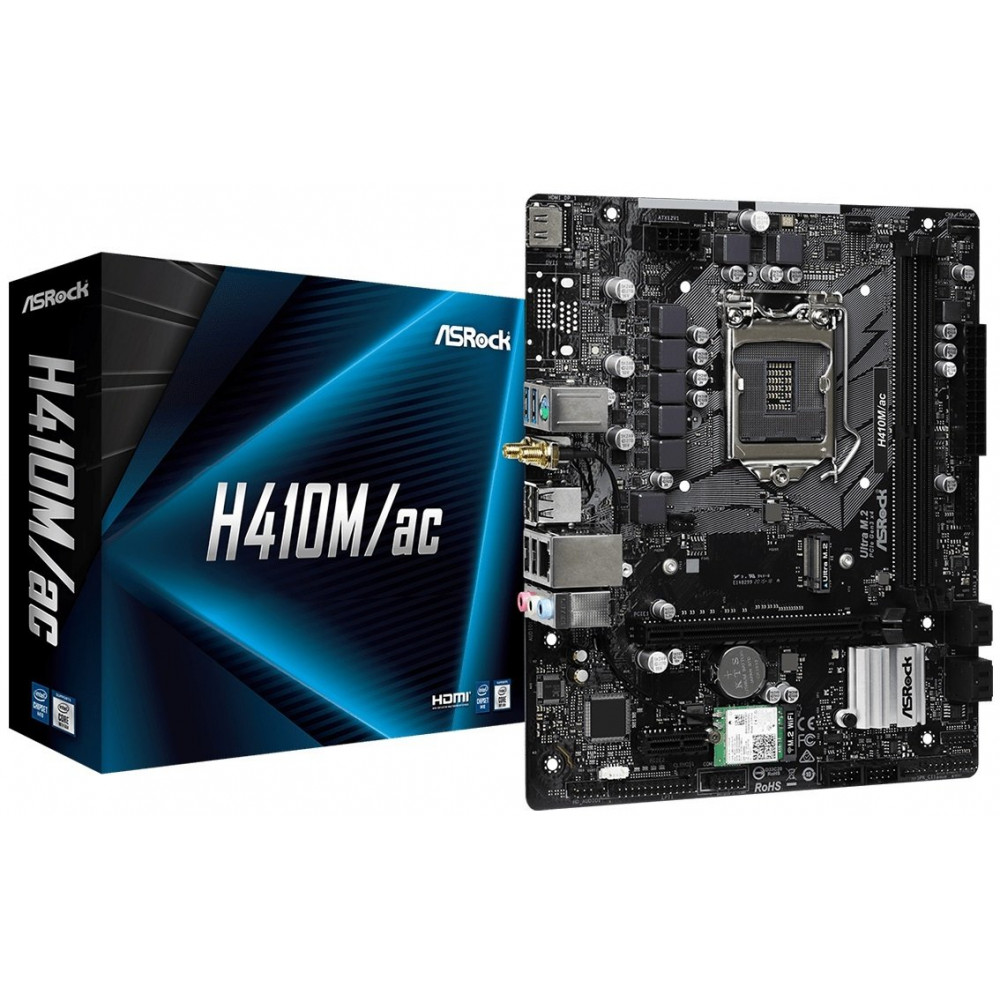

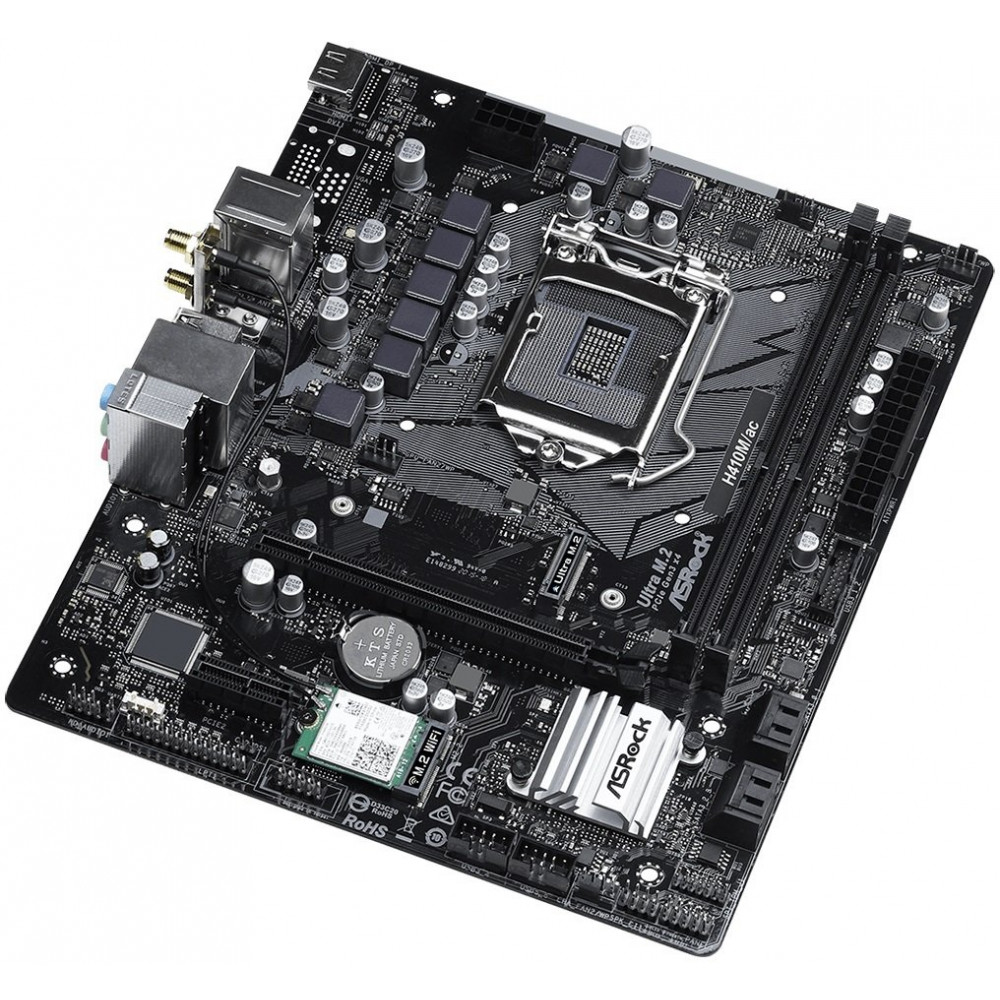

Description ASRock H410M/AC Motherboard

H410M/ac

Support 10th of Gen Intel® Core™ Processors (Socket 1200)
Power system 7
DDR4 Support 2933 MHz
1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Device of graphic data output: HDMI
7.1-channel HD codec (Audiokodek of Realtek ALC887)
4 SATA3, 1 of Ultra M.2 (to PCIe Gen3 x4 & SATA3)
4 USB 3.2 (2 lobbies, 2 back)
Intel® Gigabit LAN
Intel® 802.11ac WiFi + to BT 4.2

Dual-band Wi-Fi 802.11ac

Slow Internet and weak Wi-Fi are necessary to nobody! Therefore this motherboard is equipped with wireless Wi-fi module 802.11ac (2.4G/5G) and Bluetooth v4.2.

Network module of Intel® LAN provides

Intel® LAN

with

best throughput, low loading of CPU, the increased stability and brings net surfing to qualitatively new level!

I will corrode Ultra M.2 (PCIe Gen3 x4 & SATA3)

PCIe Gen3 x4 Ultra M.2 Interface provides to

data transmission at a speed to 32Gb/s. Besides, it supports the SATA3 6Gb/s M.2 modules and is compatible to a set of ASRock U.2 Kit for installation of the superfast drives U.2 PCIe Gen3 x4 SSD.

Throttles of Premium 50A Power Choke

In comparison with normal throttles, new throttles of a premium class from ASRock raise a saturation current by 3 times, providing more reliable voltage for the motherboard.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

Connector for water cooling

onboard is available the power connector of a water cooling system! It gives current in 1.5 amperes and is suitable for all SVO popular models. Tension on the connector can be increased to receive even more effective cooling.

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

Characteristic ASRock H410M/AC Motherboard

Article: span do not have H410M/AC

Form factor micro-ATX
Processor (socket type) Intel of LGA 1200
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset Intel H410
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) 802.11 a/b/g/n/ac

Assignment for home and office PCs
Form factor micro-ATX
Guarantee, month. 24
Processor (socket type) Intel of LGA 1200
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset Intel H410
PCI Express Slot (PCI-E x16 (x16)), piece 1 of x PCI-E x16 (x16) of v3.x
PCI Express Slot (PCI-E x16 (x8)), piece there is no
PCI Express Slot (PCI-E x16 (x4)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece 1 of x PCI-E x1 v3.x
Slot of PCI, piece there is no
AGP Slot there is no
Type-C/Thunderbolt 3 USB 3.1 Port there Is no
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 2 x USB 3.2 of Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A, 2 x span do not have USB 2.0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port
Port DVI, piece is not present
HDMI (mini/micro) Port 1 of x HDMI v1.4
Thunderbolt Port is not present
DisplayPort (mini/micro) Port Is not present
PS/2 Port, piece 1
COM (RS-232) Port 1
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece 1
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), piece 4
Number of SATA2 ports (3gbit/c), piece is not present
Number of SATA Express ports (to 10gbit/c), piece is not present
Slot of dimm.2, piece is not present
Mini PCI Express (Mini PCI-E, span do not have Socket 3), piece 1 x M.2
Support of program RAID is not present
eSATA Port
Quantity of eSATA, piece. do not have
Number of IDE ports there is no
Slot for FDD there is no
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), the Mbps 1
LAN controller Model Intel I219V
Wireless interfaces (Wi-Fi) 802.11 a/b/g/n/ac
Fastening for antenna Wi-Fi is
Wireless interfaces (Bluetooth/NFC) Bluetooth 4.2
Built-in sound processor Realtek ALC887
Multichannel sound 7.1
I Will corrode 3.5 mm (mini-Jack), piece 3
Optical output (S/PDIF) there is no
Built-in video there is no
BIOS Ami, UEFI
DualBIOS Support there is no
General height of a product (H), mm 226
General width of a product (W), mm 188
Illumination there Is no
Colour Black
Main power connector 24 -
