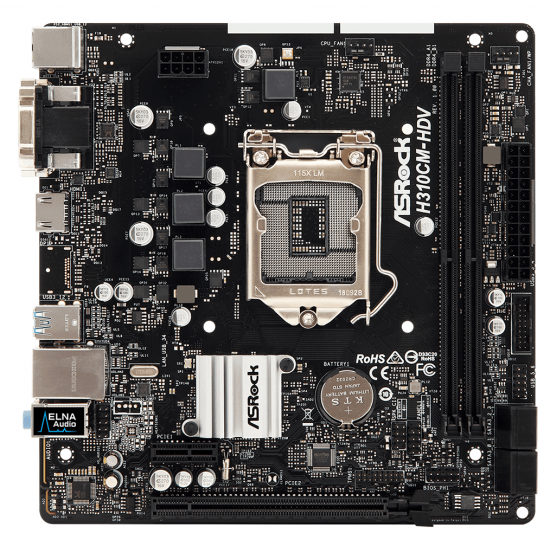

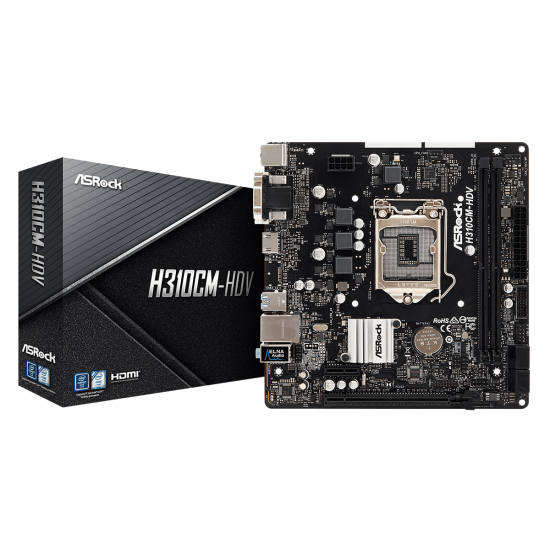

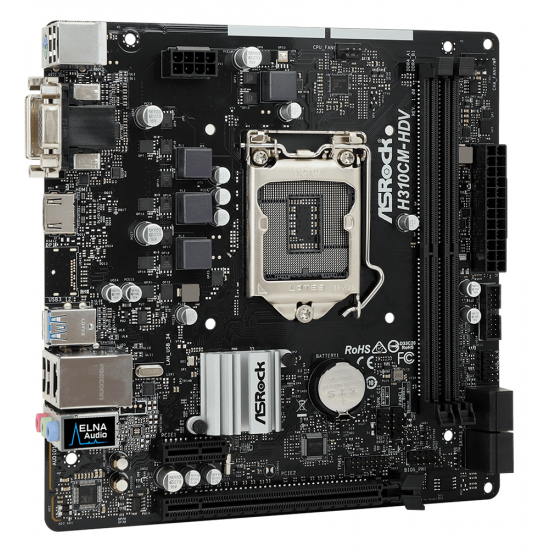

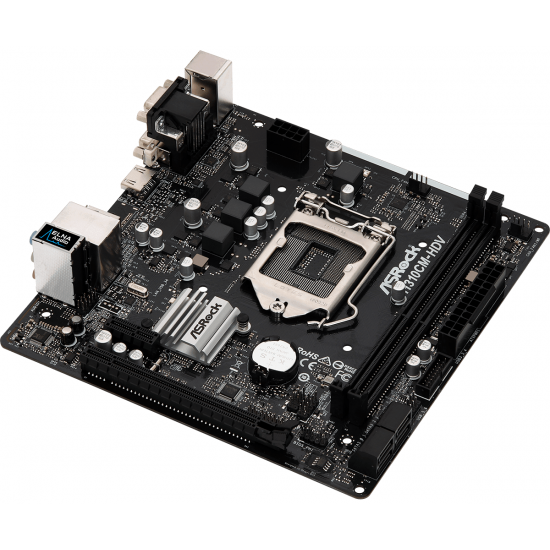

Description ASRock H310CM-HDV Motherboard

Decoding/coding of HEVC of 10 bits

Supports by

10-bit coding / decoding of HEVC 10-bit for ensuring the best quality and depth of immersion to the world of modern video.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

4K x 2K

Resolution is not less than 3840 x 2160 pixels that there is twice more format 1080p.

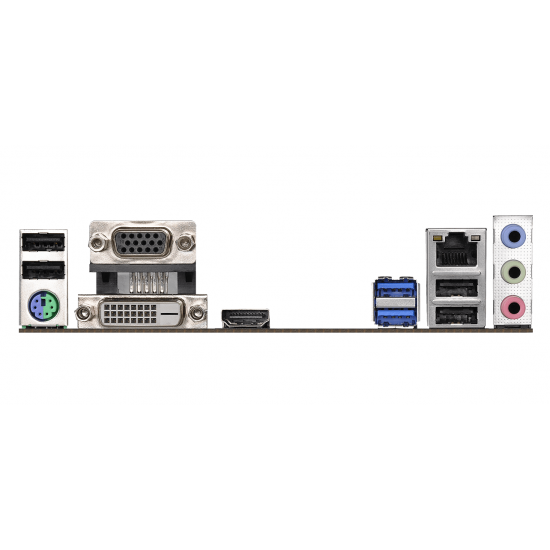

3 video outputs

onboard are three most widespread video outputs: D-Sub + DVI + HDMI! Besides, the HDMI port supports video output in format 4K.

Connector for water cooling

onboard is available the power connector of a water cooling system! It gives current in 1.5 amperes and is suitable for all SVO popular models. Tension on the connector can be increased to receive even more effective cooling.

Solid-state condensers

On this motherboard the ASRock company used only solid-state condensers. The motherboard will work with such condensers more steadily at the increased service life.

A-Tuning

A-Tuning is a software from ASRock with the new interface, new functions and the improved set of utilities!

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

Characteristic ASRock H310CM-HDV Motherboard

Article: span do not have H310CM-HDV

Form factor micro-ATX
Processor (socket type) Intel Socket 1151
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset Intel H310
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no

Assignment for home and office PCs
Form factor micro-ATX
Guarantee, month 24
Processor (socket type) Intel Socket 1151
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 2
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset Intel H310
PCI Express Slot (PCI-E x16 (x16)), piece 1 of x PCI-E x16 (x16) of v3.x
PCI Express Slot (PCI-E x16 (x8)), piece is not present
PCI Express Slot (PCI-E x16 (x4)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece 1 of x PCI-E x1 v2.x
Slot of PCI, piece there is no
AGP Slot there is no
Type-C/Thunderbolt 3 USB 3.1 Port there Is no
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.0/3.1 of Gen 1 Type-A, 2 x USB 3.0/3.1 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 1 x USB 2.0 Type-A, 4 x USB 2.0 Type-A
VGA (D-Sub) Port 1 x VGA
Port DVI, piece 1 x DVI-D
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port is not present
DisplayPort (mini/micro) Port there Is no
PS/2 Port, piece 1
COM (RS-232) Port there Is no
Port (IEEE 1394) there is no
LPT Port (IEEE 1284), piece is not present
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), piece 4
Number of SATA2 ports (3gbit/c), piece is not present
Number of SATA Express ports (to 10gbit/c), piece is not present
Slot of dimm.2, piece is not present
Mini PCI Express (Mini PCI-E, piece do not have Socket 3), is not present
Support of program RAID is not present
eSATA Port is not present
Quantity of eSATA, piece is not present
Number of IDE ports is not present
Slot for FDD is not present
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Realtek RTL8111H
Wireless interfaces (Wi-Fi) Is not present
Fastening for antenna Wi-Fi is not present
Wireless interfaces (Bluetooth/NFC)
Built-in sound processor Realtek ALC887
Multichannel sound 7.1
Connector 3.span do not have 5 mm (mini-Jack), piece 3
Optical output (S/PDIF)
Support of several video cards there is no
Built-in video there is no
BIOS Ami, UEFI
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 191
General width of a product (W), mm 188
Illumination there Is no
Colour Dark gray ules wet asphalt anthracite, Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 2
Number of power connectors of coolers (CPU Fan), 1
