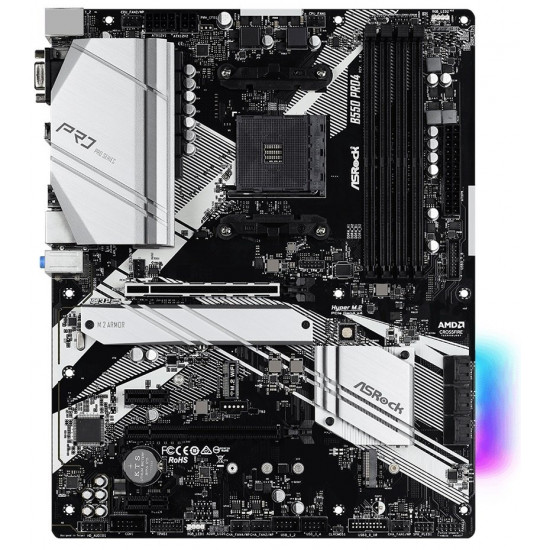

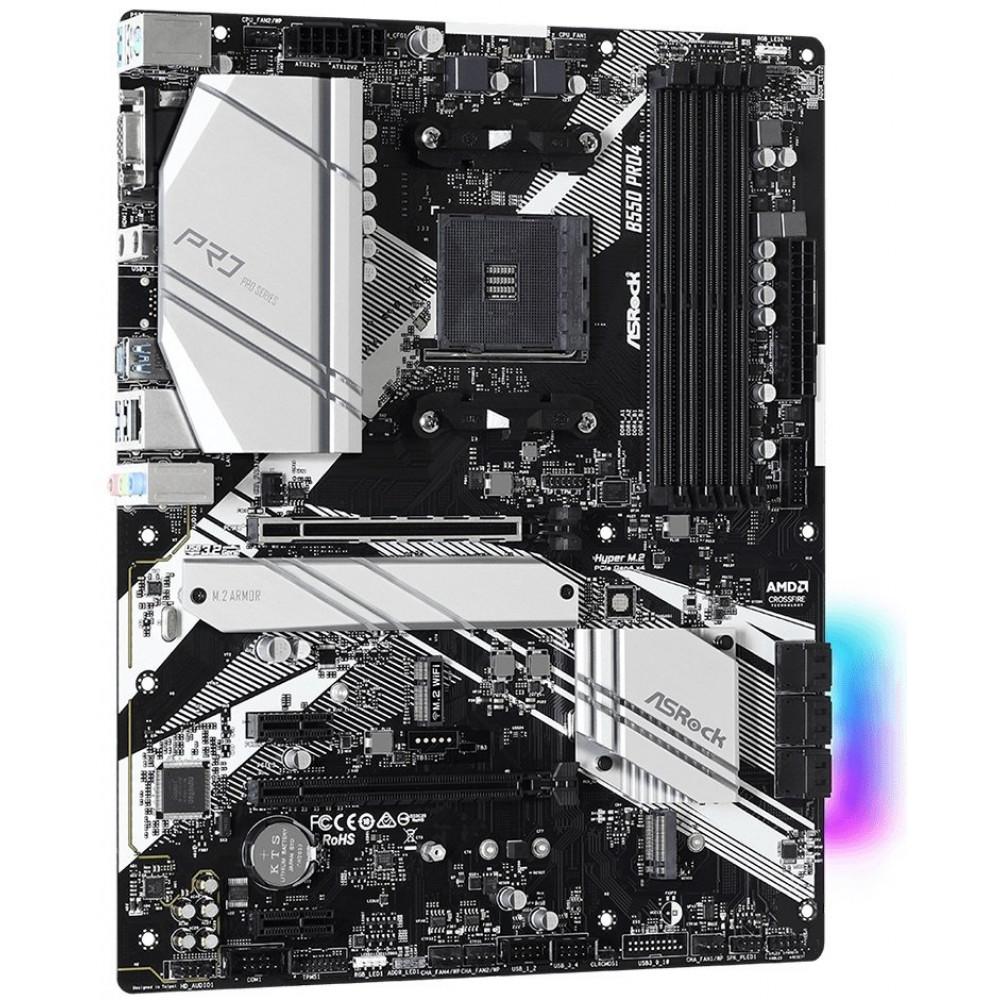

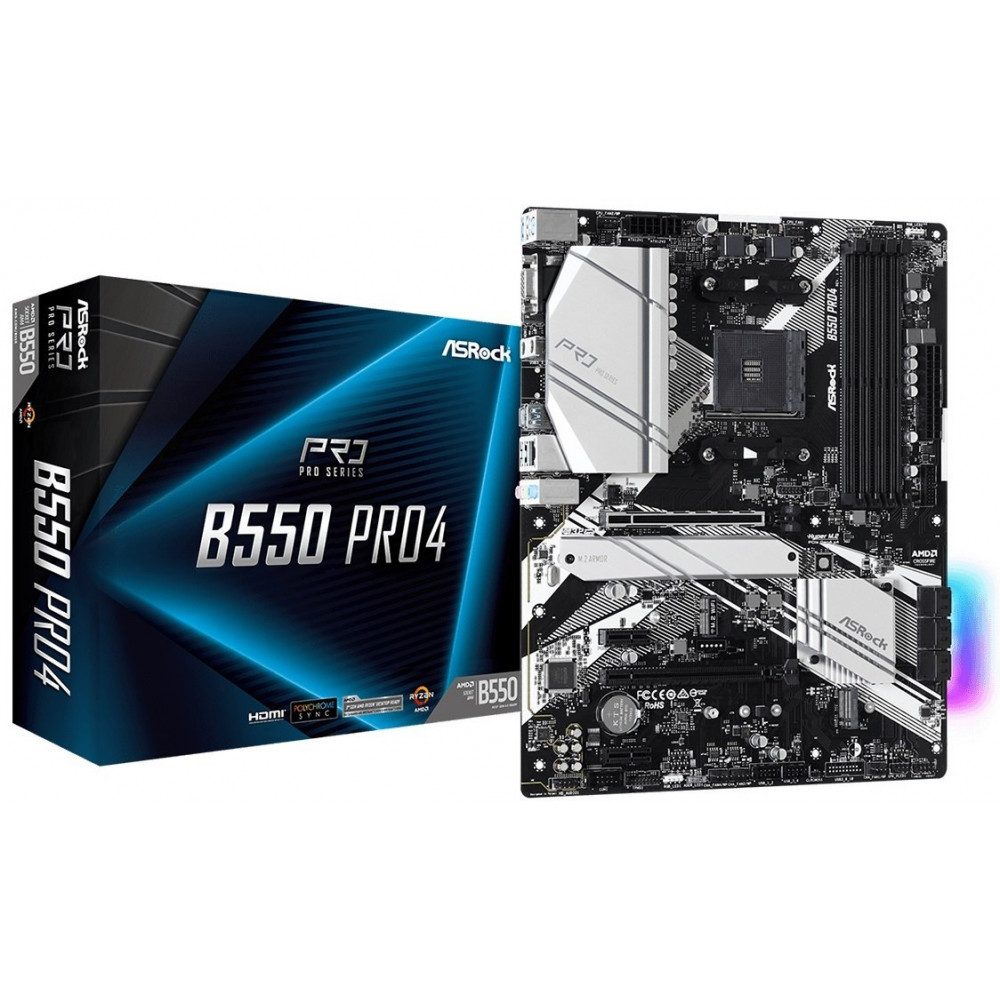

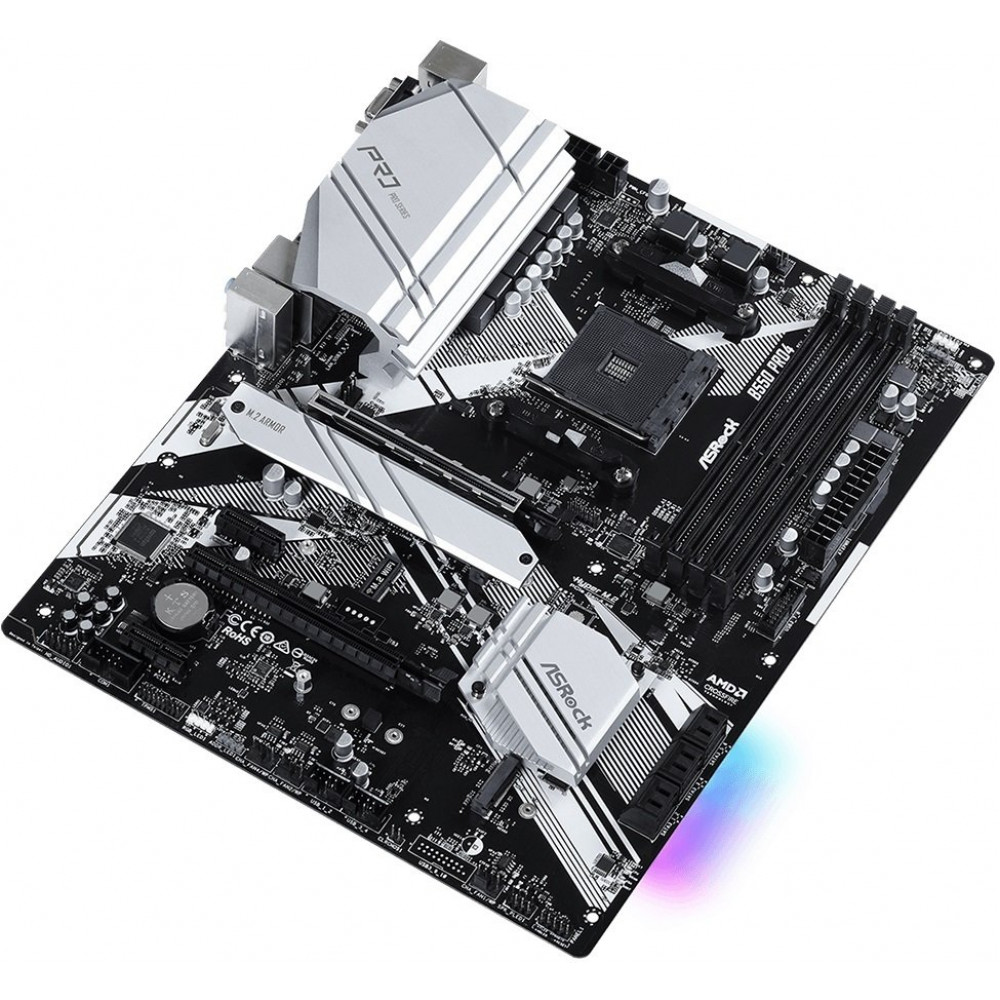

Description ASRock B550 PRO4 Motherboard

B550 Pro4

• Support 3rd Gen AMD AM4 Ryzen™/Future AMD Ryzen™ Processors
• Power system 8, Digi Power
• Support DDR4 4733 + (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for the WiFi support

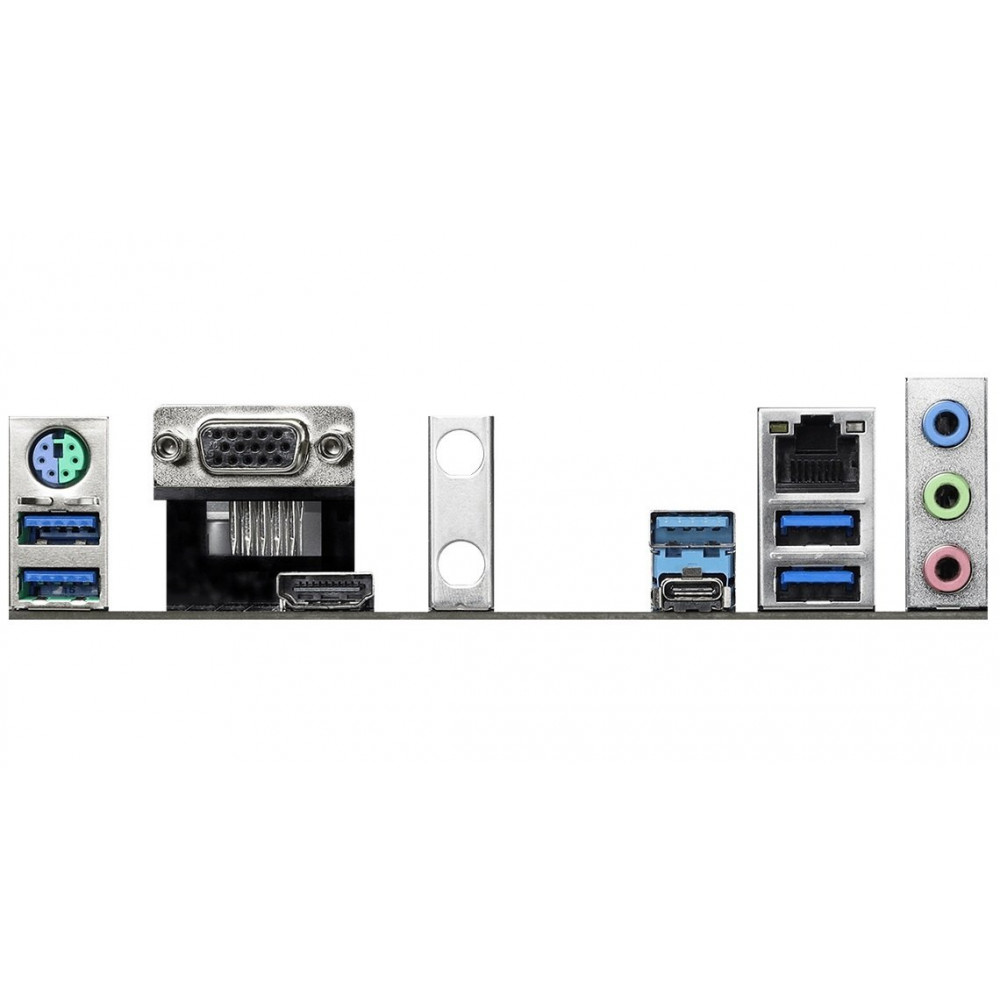

• Device of graphic data output: HDMI, D-Sub
• AMD CrossFireX™
• 7.1-channel HD codec (Audiokodek of Realtek ALC1200), Nahimic Audio
• 6 SATA3, 1 of Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
Gen2
• 2 USB 3.2 (Back Type A+C), 6 USB 3.2 Gen1 (2 lobbies, 4 back)
• Gigabit LAN

TIME of B550 MOTHERBOARDS

All necessary for a digital era

Nahimic Audio system

When using earphones, headsets, external columns or the integrated speaker phone, through USB, Wi-Fi, an analog output or HDMI, the Nahimic Audio audio system will provide the best sound impressions with rich detailing.

Sound Tracker is the visual indicator specifying from what main directions the sound arrives. Each sound is in a special way located on radar 360 ° for full immersion in game process.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock Motherboards differ in the stunning performance and effective appearance, and allow to create own light! ASRock offers enhanced features on management of LED illumination on light tapes, CPU fans and cases, and other similar devices.

RELIABLE SOLUTION M.2

Two connectors M.2 for 22110 M.2 SSD

Support of faster drives of the increased capacity and performance like 22110 M.2 NVMe SSD. The Hyper M.2 connector for PCIe Gen4 x4 devices and connector M.2 working in PCIe Gen3 x2 and SATA3 modes.

Protection of M.2 Good protection of the M.2 SSD provides

with

durability and stability. ASRock proposes the finished solution for protection of the drives M.2 SSD reducing their working temperature.

Dual USB 3.2 Gen2 (Type-A + Type-C)

Onboard USB connectors 3.2 Gen2 Type-A and Type-C with data transmission rate to 10Gbps.

• USB connector 3.2 Gen2 doubles data transmission rate
• USB connector 3.2 Gen2 Type-C doubles charging speed!

M.2 Key E Connector for Wi-Fi

Can connect separate Wi-fi module 802.11ac to special connector M.2 (Key E).
* the Wi-fi Module is not included in the delivery package.

Diagnostics of Post Status Checker

This simple diagnostic tool shows to

status of the operations CPU/DRAM/VGA/BOOT at each start of a system. Post Status Checker allows to reveal a problem source quickly.

Aluminum radiator of XXL

Radiator of cooling of the large size effectively allocates for

heat from transistors and and a chipset, increasing stability of work of all system.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

by

Printed circuit board with a copper layer in 2 ounces

use only carefully selected copper samples for layers of the printed circuit board, and the technology allows to reduce temperatures and to improve energy efficiency at acceleration.

Two video outputs

At your disposal at once two often used video outputs, HDMI and D-SUB from which it is possible to bring the image to external devices.

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

Characteristic ASRock B550 PRO4 Motherboard

Article: span do not have B550_PRO4

• Form factor ATX
• Processor (socket type) AMD Socket AM4
• Model of the built-in processor
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece there is no
• Random access memory of DDR2 (quantity of slots), piece there is no
• Chipset AMD B550
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
• Wireless interfaces (Wi-Fi) there Is no

• Assignment for game PCs
• Form factor ATX
• Guarantee, month 24
• Processor (socket type) AMD Socket AM4
• Processor (quantity of socket) 1
• Model of the built-in processor is not present
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece there is no
• Random access memory of DDR2 (quantity of slots), piece there is no
• Random access memory (number of channels) 2nd channel
• Chipset AMD B550
• PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v4.x
• PCI Express Slot (PCI-E x16 (x8)), piece there is no
• PCI Express Slot (PCI-E x16 (x4)), piece there is no
• Slot of PCI Express (PCI-E x8), piece there is no
• Slot of PCI Express (PCI-E x4), piece there is no
• Slot of PCI Express (PCI-E x1), piece 2 of x PCI-E x1 v4.x
• Slot of PCI, piece there is no
• AGP Slot there is no
• Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.2 of Type C (Gen 2 up to 10Gbps)
• Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.2 of Gen 2 Type-A
• Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.2 of Gen 1 Type-A (on a payment, for a frontal output), 3 x USB 3.2 Gen 1 Type-A
• Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.span do not have 0 Type-A (on a payment, for a frontal output)
• VGA (D-Sub) Port 1 x VGA
• Port DVI, piece
• HDMI (mini/micro) Port 1 x HDMI
• Thunderbolt Port there is no
• DisplayPort (mini/micro) Port there Is no
• PS/2 Port, piece 1
• COM (RS-232) Port 1
• Port (IEEE 1394) there is no
• LPT Port (IEEE 1284), piece there is no
• Connector of the TPM module, piece 1 (on a payment)
• Number of SATA3 ports (6gbit/c), piece 6
• Number of SATA2 ports (3gbit/c), span do not have piece
• Number of SATA Express ports (to 10gbit/c), span do not have piece
• Slot of dimm.2, piece there is no
• Mini PCI Express (Mini PCI-E, Socket 3), piece 2 x M.2
• Support of program RAID RAID 0, RAID 1, RAID 10
• eSATA Port is not present
• Quantity of eSATA, piece there is no
• Number of IDE ports there is no
• Slot for FDD there is no
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
• Network connection (quantity of LAN RJ-45), Mbps 1
• LAN controller Model Realtek RTL8111H
• Wireless interfaces (Wi-Fi) Is not present
• Wireless interfaces (Bluetooth/NFC) is not present
• Built-in sound processor Realtek ALC1200
• Multichannel sound 7.1
• Will corrode 3.5 mm (mini-Jack), piece 3
• Optical output (S/PDIF) is not present
• Support of several video cards AMD CrossFireX, AMD Quad-GPU CrossFireX
• Built-in video is not present
• BIOS Ami, UEFI
• Cooling of the north-bridge passive (radiator)
• Cooling of the south bridge passive (radiator)
• General height of a product (H), mm 305
• General width of a product (W), 244
• Illumination Is
• Colour Black
• Main power connector 24 - pin
