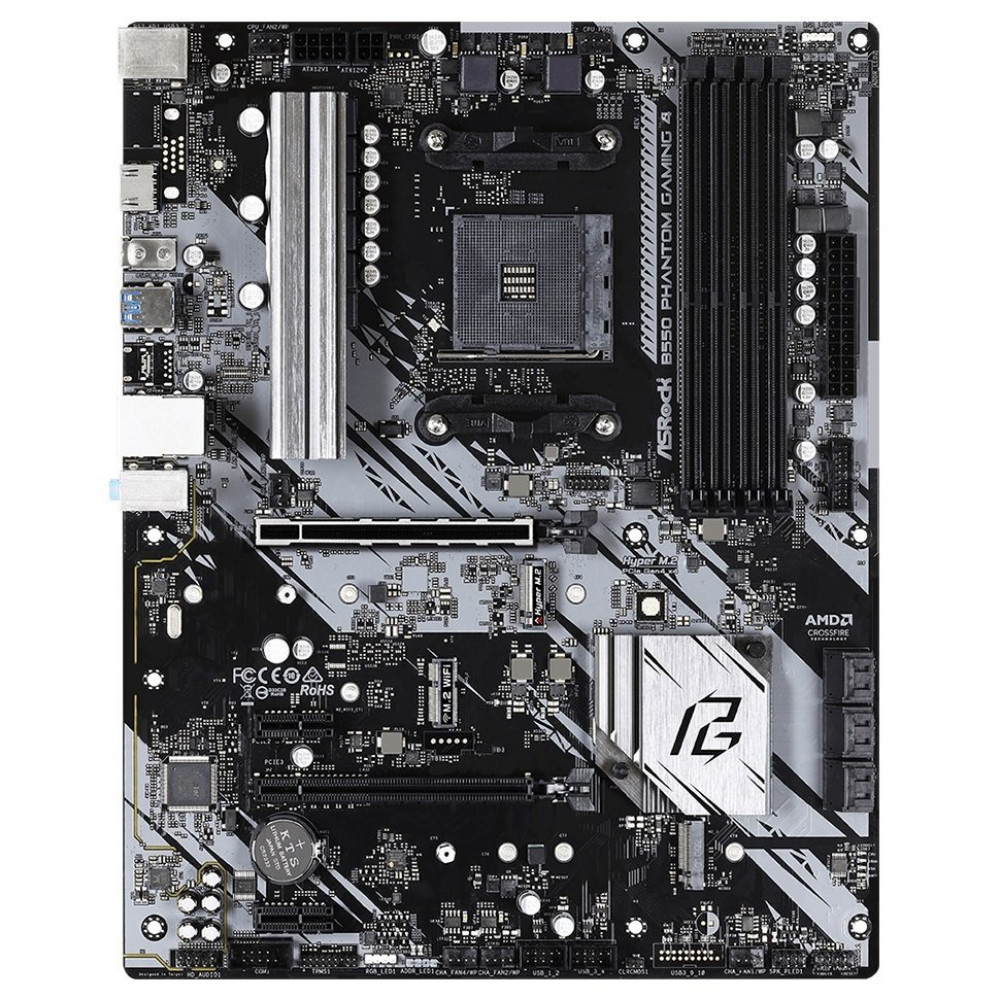

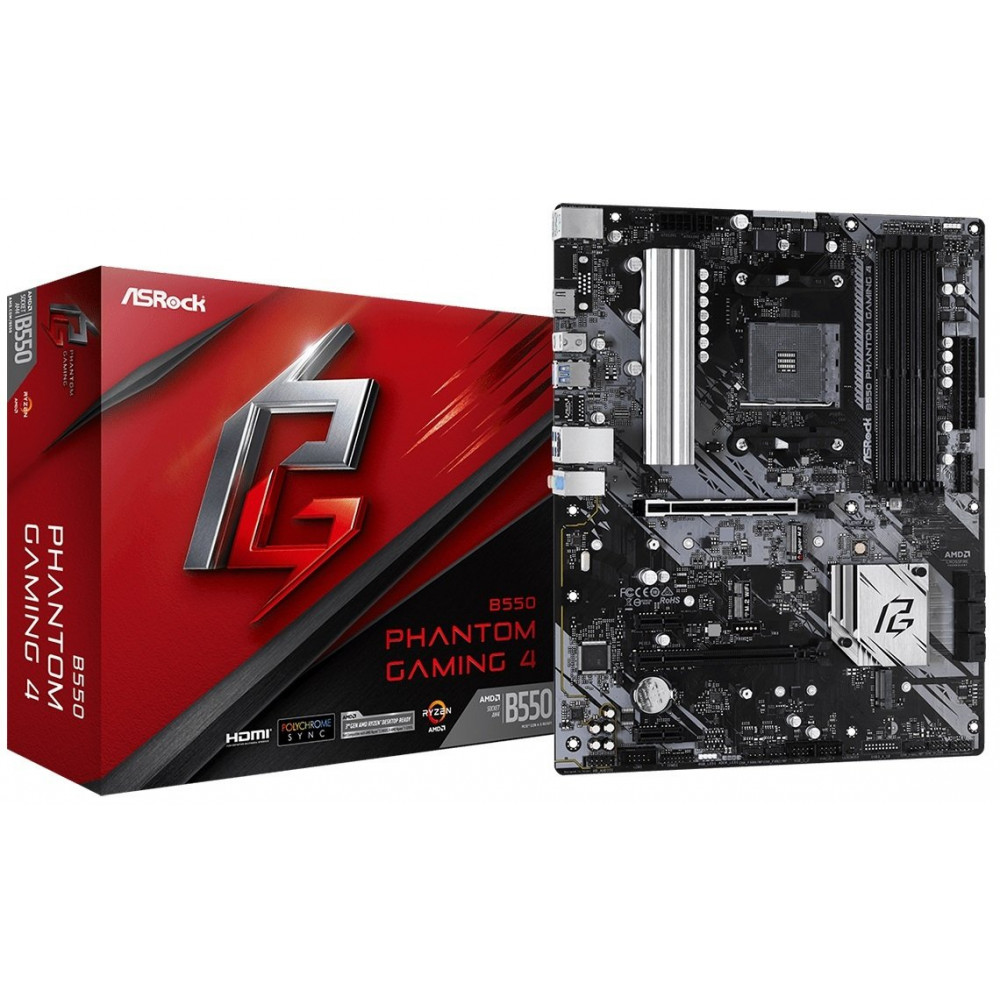

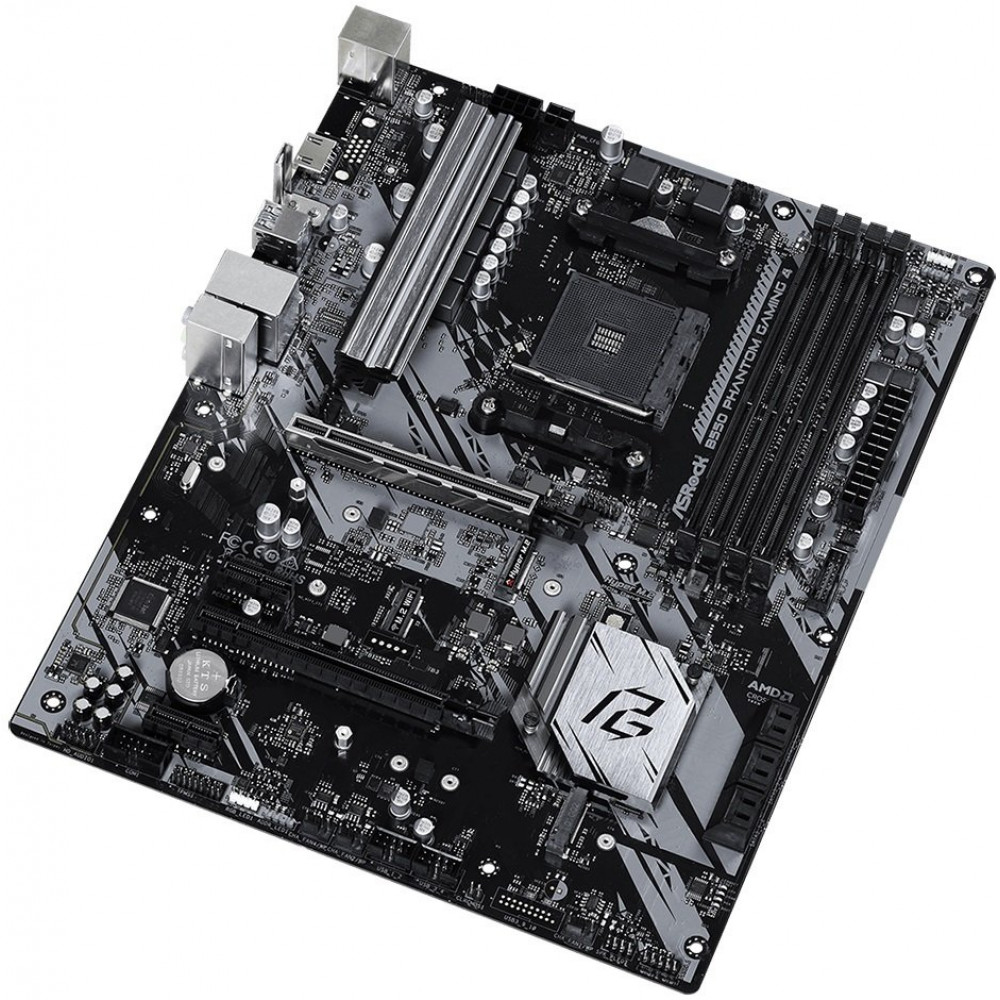

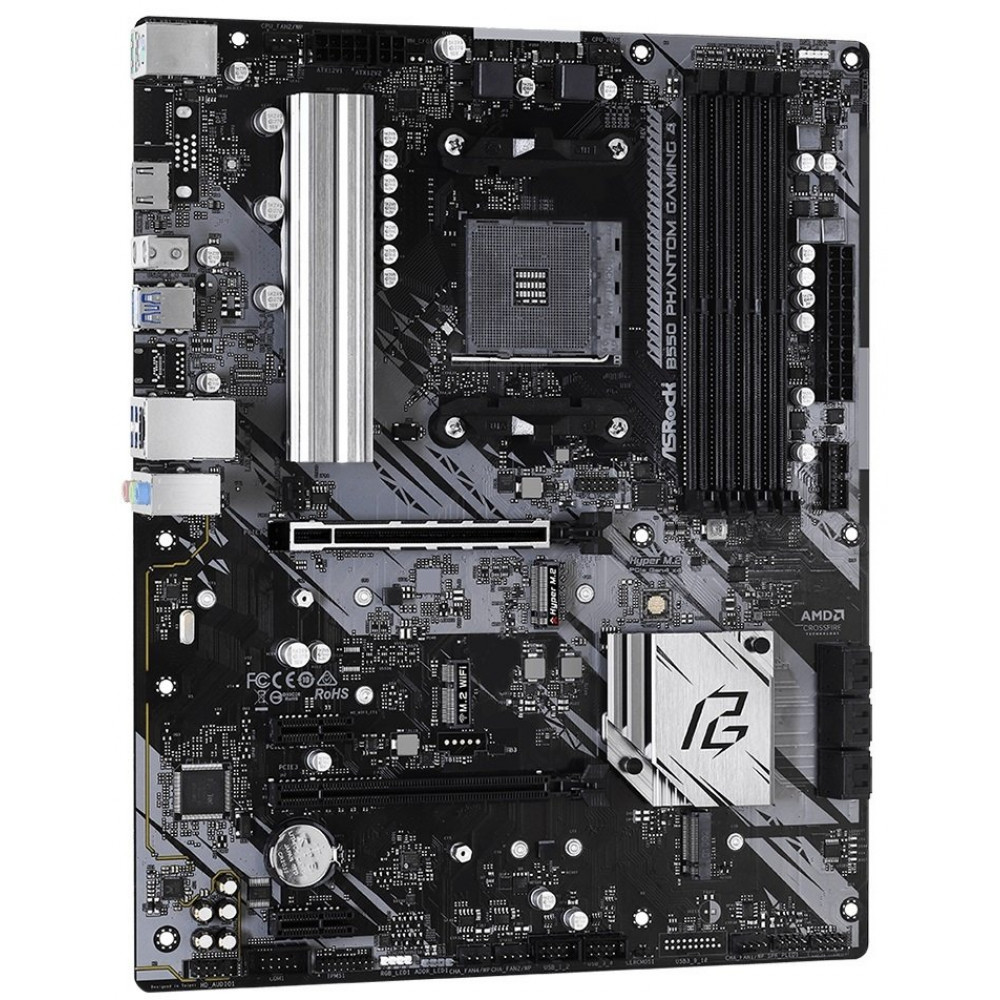

Description ASRock B550 PHANTOM GAMING 4 Motherboard

B550 Phantom Gaming 4

Support 3rd Gen AMD AM4 Ryzen™/Future AMD Ryzen™ Processors
Power system 8, Digi Power
Support DDR4 4733 + (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for the WiFi support
Device of graphic data output: HDMI
AMD CrossFireX™
7.1-channel HD codec (Audiokodek of Realtek ALC1200), Nahimic Audio
6 SATA3, 1 of Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
8 USB 3.2 (2 lobbies, 6 back)
Gigabit LAN

Design of Phantom Gaming is developed by gamers for gamers! Behind irresistible appearance there is a set of functions for gamers and the advanced gaming opportunities.

Nahimic Audio system

When using earphones, headsets, external columns or the integrated speaker phone, through USB, Wi-Fi, an analog output or HDMI, the Nahimic Audio audio system will provide the best sound impressions with rich detailing.

Sound Tracker is the visual indicator specifying from what main directions the sound arrives. Each sound is in a special way located on radar 360 ° for full immersion in game process.

RELIABLE SOLUTION M.2

Two connectors M.2 for 22110 M.2 SSD

Support of faster drives of the increased capacity and performance like 22110 M.2 NVMe SSD. The Hyper M.2 connector for PCIe Gen4 x4 devices and the Ultra M.2 connector working in PCIe Gen3 x2 and SATA3 modes.

M.2 Key E Connector for Wi-Fi

Can connect separate Wi-fi module 802.11ac to special connector M.2 (Key E).
* the Wi-fi Module is not included in the delivery package.

Diagnostics of Post Status Checker

This simple diagnostic tool shows to

status of the operations CPU/DRAM/VGA/BOOT at each start of a system. Post Status Checker allows to reveal a problem source quickly.

Aluminum radiator of XXL

Radiator of cooling of the large size effectively allocates for

heat from transistors and and a chipset, increasing stability of work of all system.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

Printed circuit board with a copper layer in 2 ounces

use only carefully selected copper samples for layers of the printed circuit board, and the technology allows to reduce temperatures and to improve energy efficiency at acceleration.

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

Characteristic ASRock B550 PHANTOM GAMING 4 Motherboard

Article: span do not have B550_PHANTOM_GAMING_4

Form factor ATX
Processor (socket type) AMD Socket AM4
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset AMD B550
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no

Assignment for game PCs
Form factor ATX
Guarantee, month 24
Processor (socket type) AMD Socket AM4
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset AMD B550
PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v4.x
PCI Express Slot (PCI-E x16 (x8)), piece there is no
PCI Express Slot (PCI-E x16 (x4)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece 2 of x PCI-E x1 v3.x
Slot of PCI, piece there is no
AGP Slot is not present
Type-C/Thunderbolt 3 USB 3.1 Port Is not present
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.2 of Gen 1 Type-A (on a payment, for a frontal output), 5 x USB 3.2 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.span do not have 0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port
Port DVI, piece there is no
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port there is no
DisplayPort (mini/micro) Port there Is no
PS/2 Port, piece 1
COM (RS-232) Port 1
Port (IEEE 1394) there is no
LPT Port (IEEE 1284), piece there is no
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), piece 6
Number of SATA2 ports (3gbit/c), span do not have piece
Number of SATA Express ports (to 10gbit/c), span do not have piece
Slot of dimm.2, piece there is no
Mini PCI Express (Mini PCI-E, Socket 3), piece 2 x M.2
Support of program RAID RAID 0, RAID 1, RAID 10
eSATA Port is not present
Quantity of eSATA, piece there is no
Number of IDE ports there is no
Slot for FDD is not present
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Realtek RTL8111H
Wireless interfaces (Wi-Fi) Is not present
Wireless interfaces (Bluetooth/NFC) is not present
Built-in sound processor Realtek ALC1200
Multichannel sound 7.1
Will corrode 3.5 mm (mini-Jack), piece 3
Optical output (S/PDIF) is not present
Support of several video cards AMD CrossFireX, AMD Quad-GPU CrossFireX
Built-in video is not present
BIOS Ami, UEFI
Cooling of the north-bridge passive (radiator)
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 305
General width of a product (W), 244
Illumination Is not present
Colour Black
Main power connector 24 - pin
