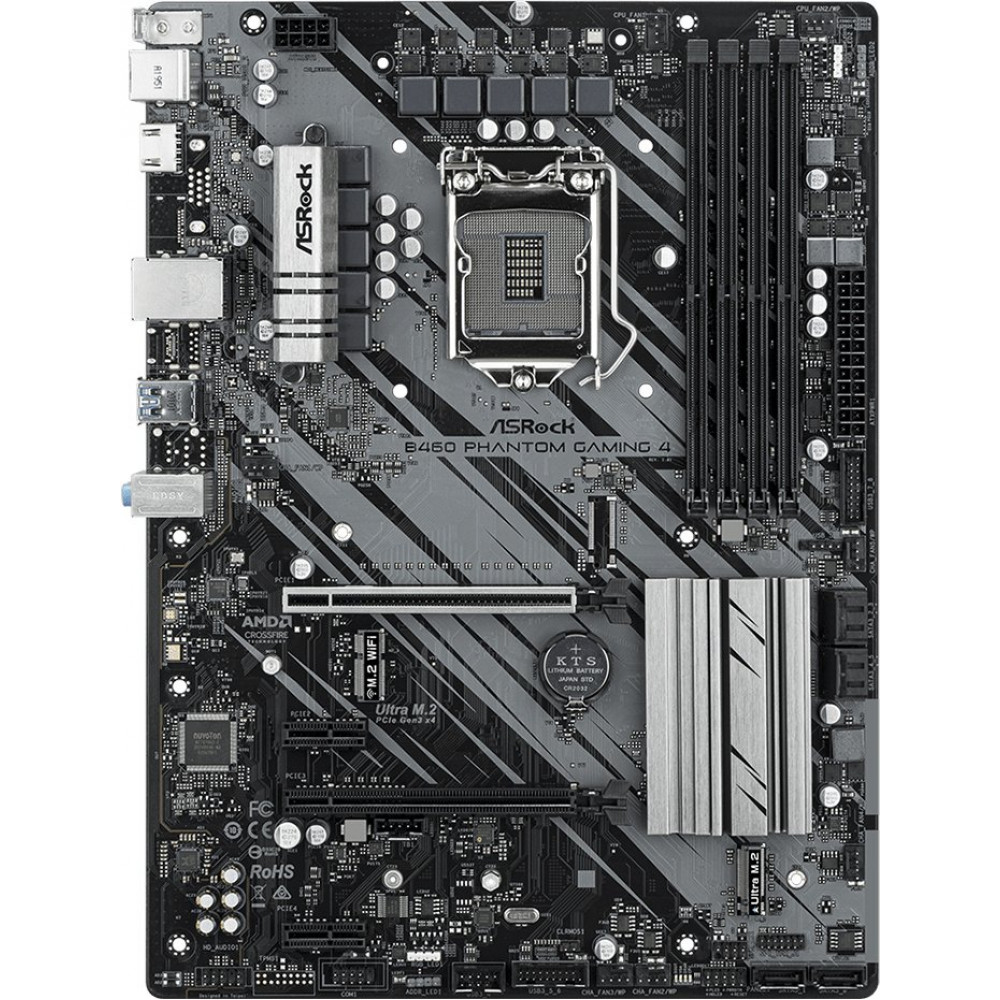

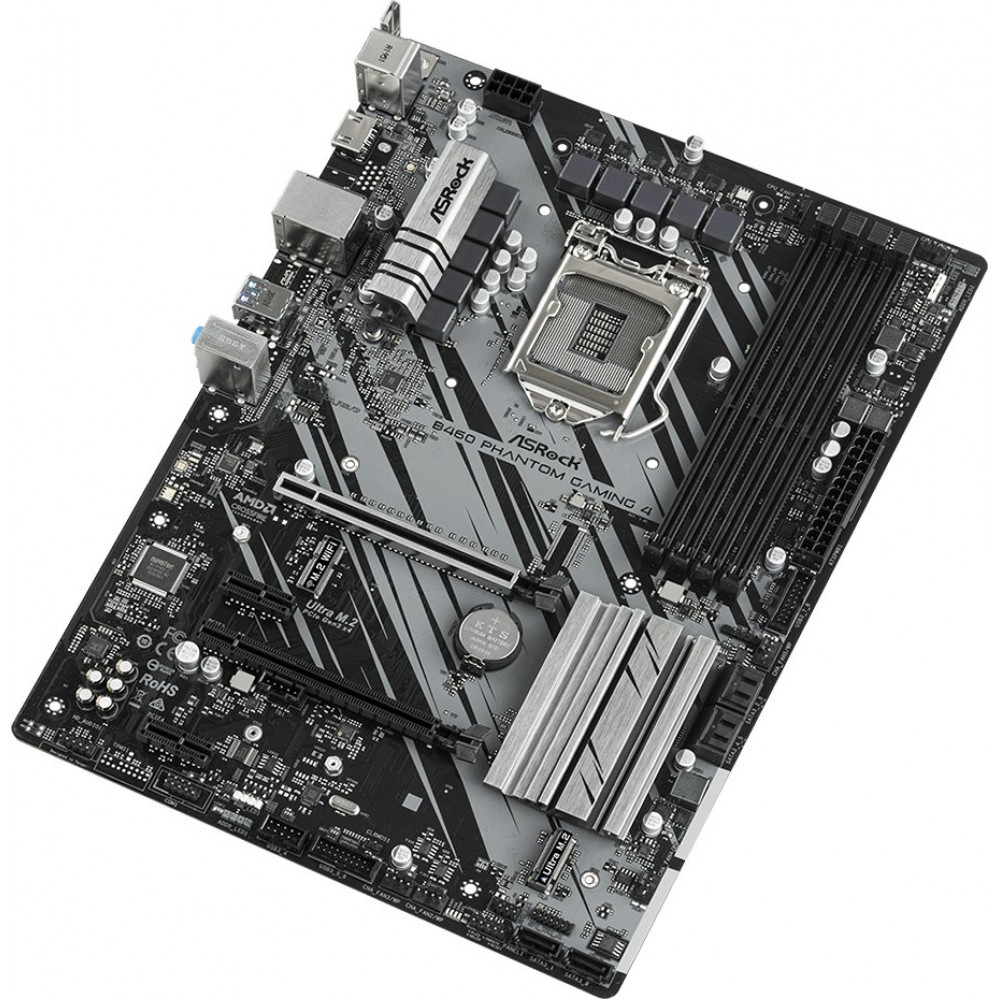

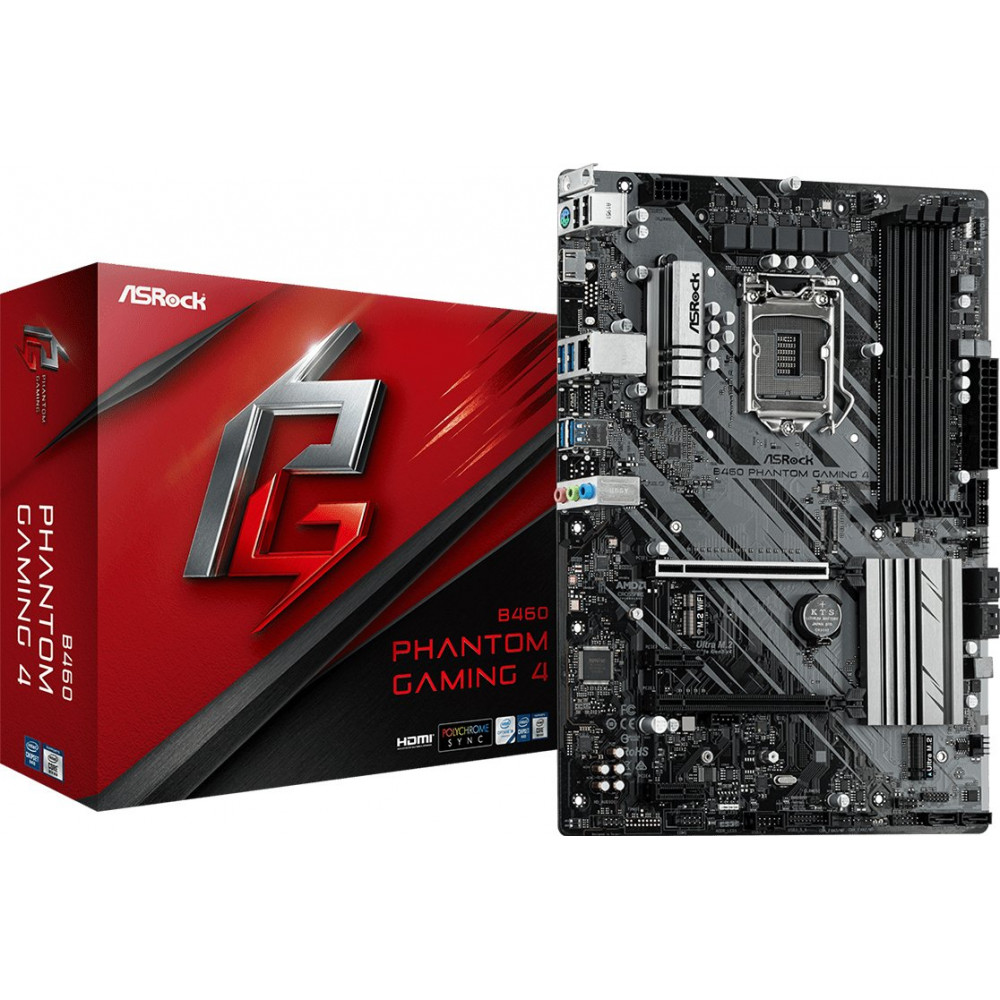

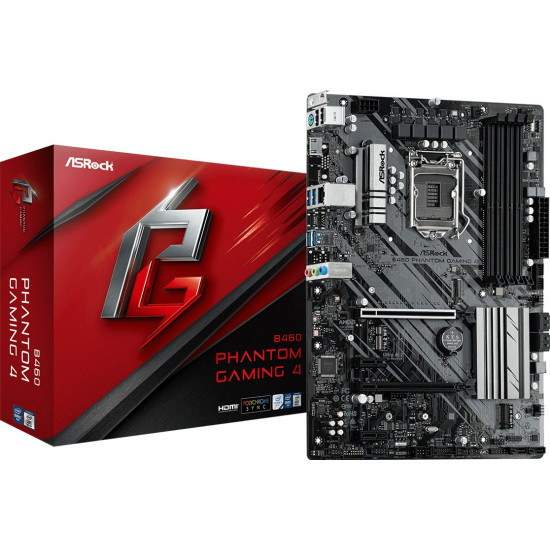

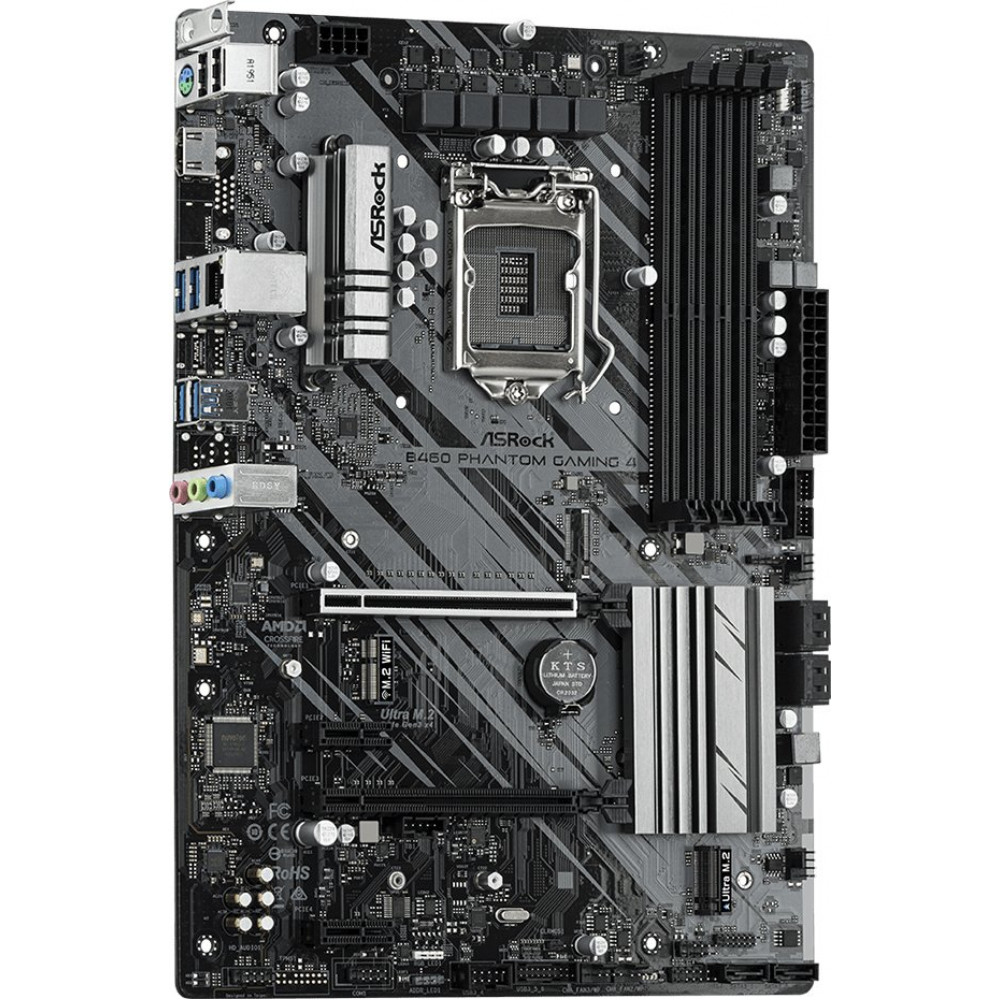

Description ASRock B460 PHANTOM GAMING 4 Motherboard

Design of Phantom Gaming is developed by gamers for gamers! Behind irresistible appearance there is a set of functions for gamers and the advanced gaming opportunities.

Nahimic Audio system

When using earphones, headsets, external columns or the integrated speaker phone, through USB, Wi-Fi, an analog output or HDMI, the Nahimic Audio audio system will provide the best sound impressions with rich detailing. Sound Tracker is the visual indicator specifying from what main directions the sound arrives. Each sound is in a special way located on radar 360 ° for full immersion in game process.

Technology of gain of basic frequencies (BFB)

Not only processors of the K series series and the Z-families platform are capable to show

maximum capacity. Thanks to Via ASRock BFB technology (Boost Frequency Boost) the users can install ne-K processors on ASRock motherboards of the 400th series (not necessarily families Z) and to experience gain of basic frequency, instantly using the hidden potential of processors.

ASRock BFB Technology inhales new life in ne-K processors of series and motherboards "not - Z" series, but the actual frequency of acceleration depends on an installed system of cooling.

Network module of Intel® LAN provides

Intel® LAN

with

best throughput, low loading of CPU, the increased stability and brings net surfing to qualitatively new level!

Ultra M.2 Connector (with PCIe Gen3 x4 & SATA3)

PCIe Gen3 x4 Ultra M.2 Interface provides

data transmission at a speed to 32Gb/s. Besides, it supports the SATA3 6Gb/s M.2 modules and is compatible to a set of ASRock U.2 Kit for installation of the superfast drives U.2 PCIe Gen3 x4 SSD.

Steel PCI-E connectors

Steel PCI-E connectors have protection which excludes an interference of a signal of video cards. In these connectors even big and heavy video cards will be installed most reliably.

M.2 Key E Connector for Wi-Fi

Can connect separate Wi-fi module 802.11ac to special connector M.2 (Key E).

Diagnostics of Post Status Checker

This simple diagnostic tool shows to

status of the operations CPU/DRAM/VGA/BOOT at each start of a system. Post Status Checker allows to reveal a problem source quickly.

by

Intel® Optane™ Technology

supports technology of work with memory and the drives Intel® Optane™ which sets new standards of performance and responsiveness.

Connector for water cooling

onboard is available the power connector of a water cooling system! It gives current in 1.5 amperes and is suitable for all SVO popular models. Tension on the connector can be increased to receive even more effective cooling.

Some components of the motherboard are especially sensitive

Full Spike Protection

differences of tension, and redundant current on them can lead to instant failure of all system. The ASRock Full Spike Protection technology reliably protects these components of the motherboard from sudden power surges.

ASRock APP Shop is created by

Live Update & APP Shop

for your convenience. We offer different applications and utilities for loading. Thanks to app store of ASRock APP Shop your motherboard and your system will always contain the latests version of software.

Characteristic ASRock B460 PHANTOM GAMING 4 Motherboard

Article: span do not have B460_PHANTOM_GAMING_4

• Form factor ATX
• Processor (socket type) Intel of LGA 1200
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece
• Random access memory of DDR2 (quantity of slots), piece there is no
• Chipset Intel B460
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet

• Assignment for game PCs
• Form factor ATX
• Guarantee, month 24
• Processor (socket type) Intel of LGA 1200
• Random access memory of DDR4 (quantity of slots), piece 4
• Random access memory of DDR3 (quantity of slots), piece is not present
• Random access memory of DDR2 (quantity of slots), piece there is no
• Random access memory (number of channels) 2nd channel
• Chipset Intel B460
• PCI Express Slot (PCI-E x16 (x16)), piece 2
• PCI Express Slot (PCI-E x16 (x4)), piece there is no
• Slot of PCI Express (PCI-E x8), piece there is no
• Slot of PCI Express (PCI-E x4), piece there is no
• Slot of PCI Express (PCI-E x1), piece 2

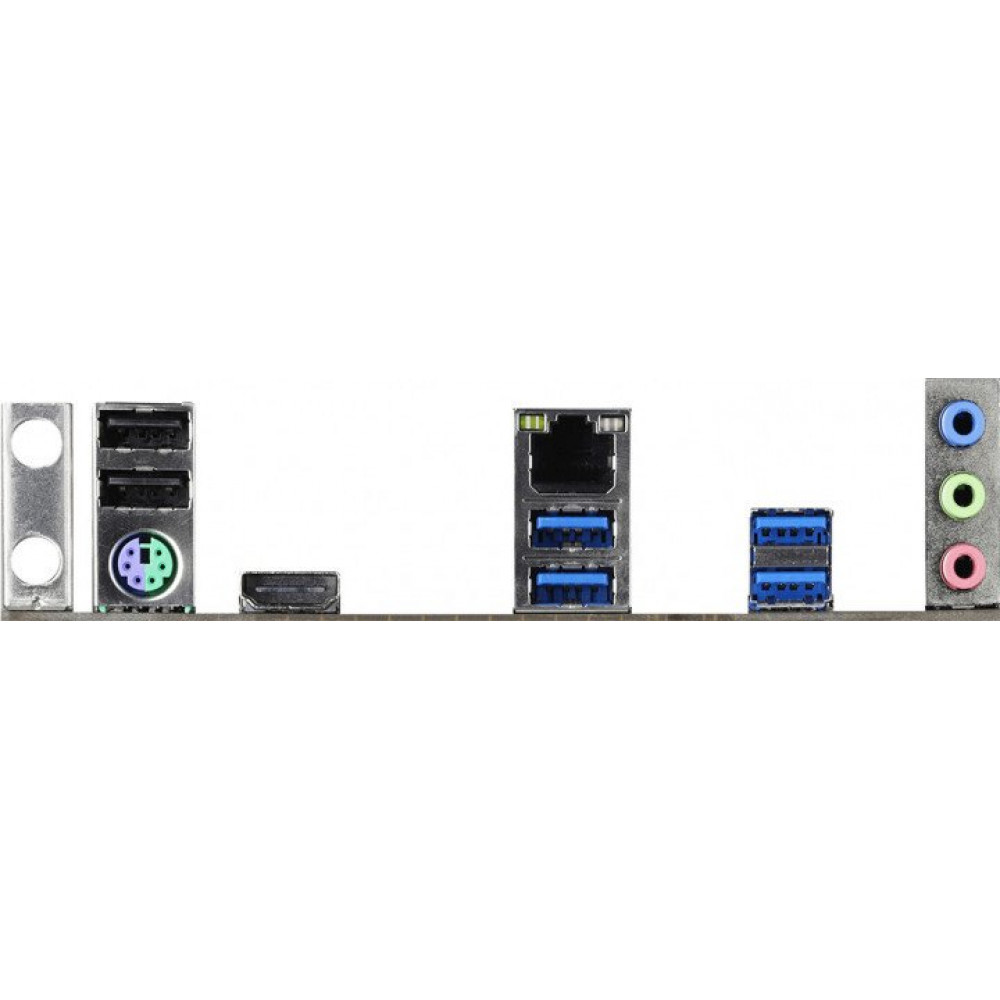

• Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 4 x USB 3.2 of Gen 1
• Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A
• HDMI (mini/micro) Port 1 x HDMI
• PS/2 Port, piece 1
• COM (RS-232) Port 1
• Port (IEEE 1394) there is no
• LPT Port (IEEE 1284), piece there is no
• Connector of the TPM module, piece 1 (on a payment)
• Number of SATA3 ports (6gbit/c), piece 6
• Number of SATA2 ports (3gbit/c), span do not have piece
• Number of SATA Express ports (to 10gbit/c), span do not have piece
• Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5
• Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
• Network connection (quantity of LAN RJ-45), Mbps 1
• LAN controller Model Intel I219V
• Wireless interfaces (Bluetooth/NFC) there is no
• Built-in sound processor Realtek ALC1200
• Multichannel sound 7.1
• Connector 3.span do not have 5 mm (mini-Jack), piece 3
• Built-in video
• BIOS Ami
• Cooling of the north-bridge passive (radiator)
• General height of a product (H), mm 305
• General width of a product (W), the mm 244
• Illumination Is
• Colour Black
• Main power connector 24 - pin
• Number of power connectors of coolers (total with CPU Fan), 7
• Complete set (cart-ny of change in different deliveries) 1 x the user guide
