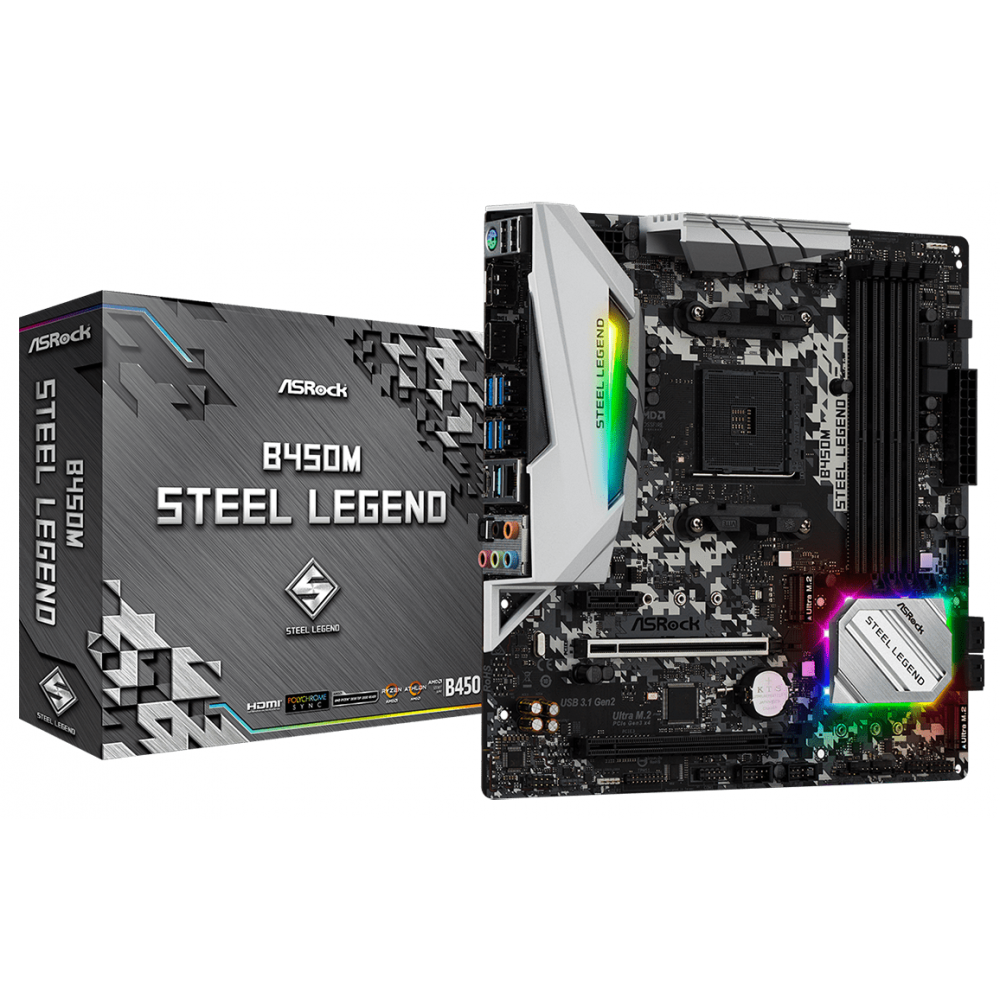

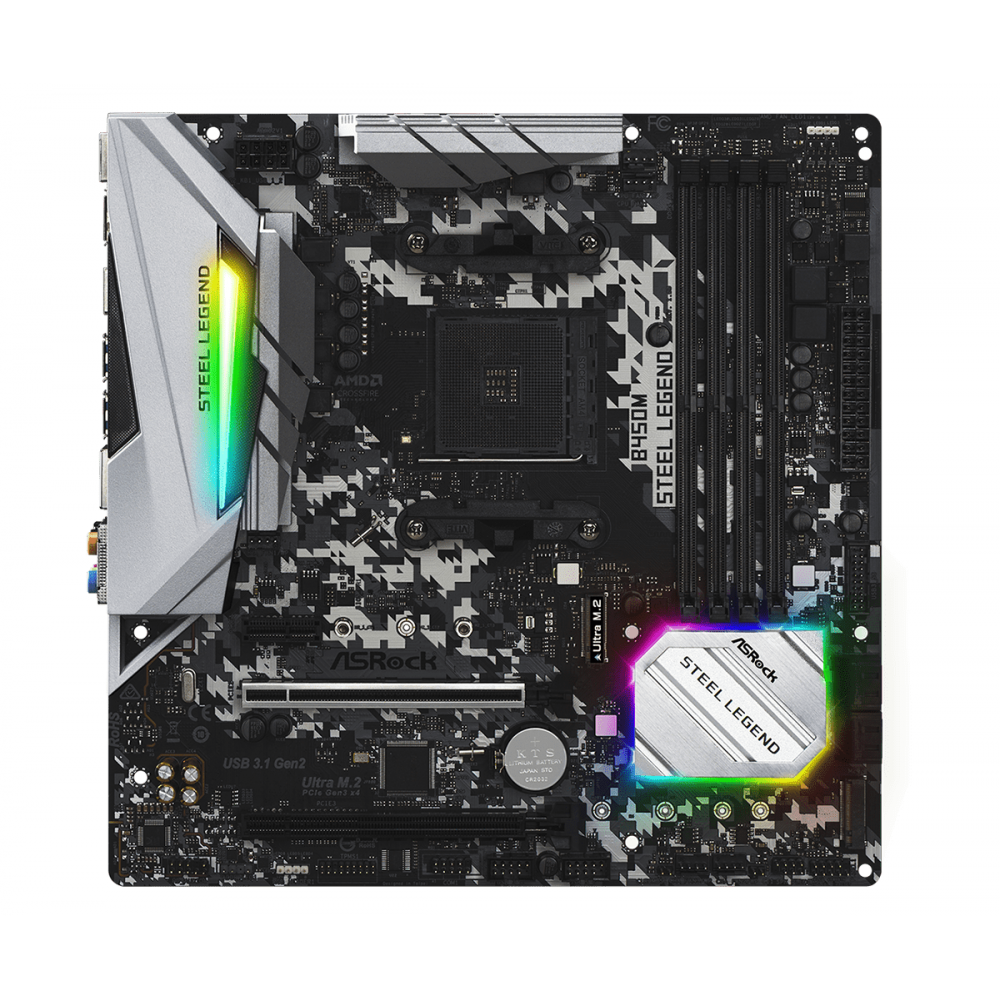

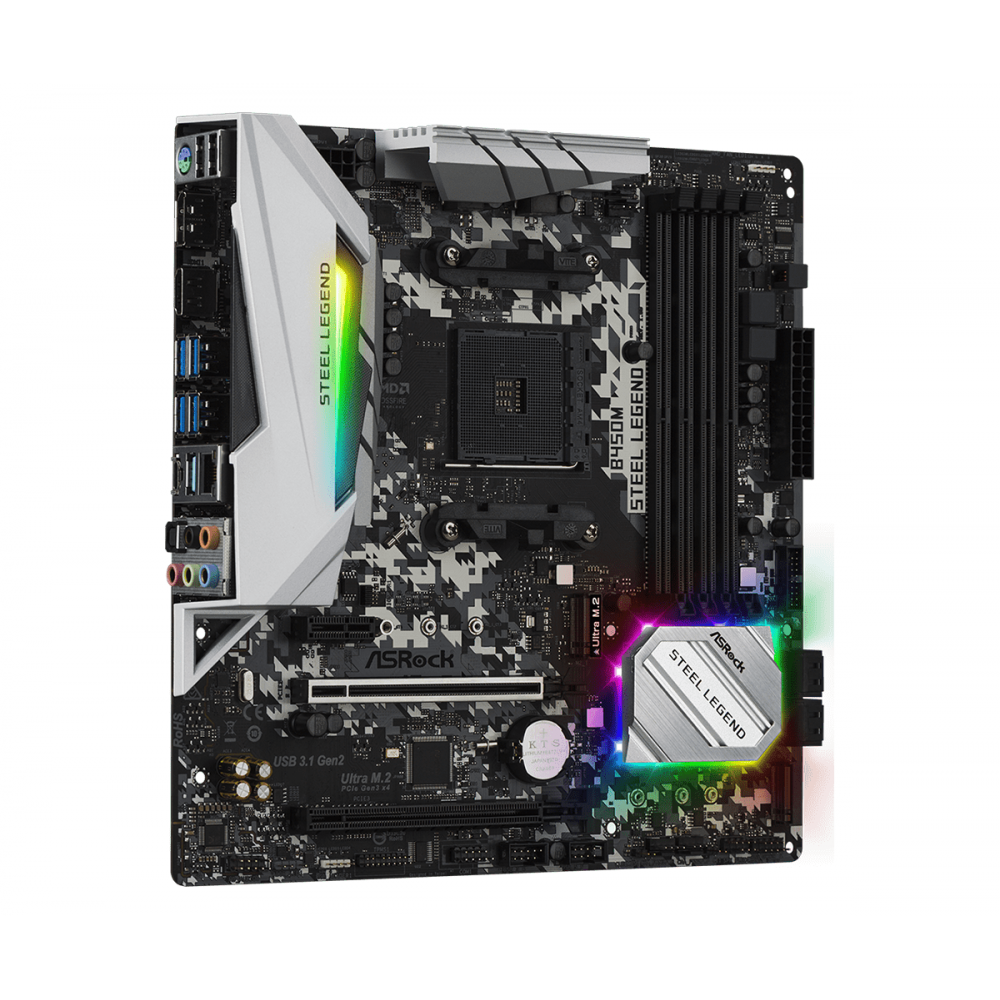

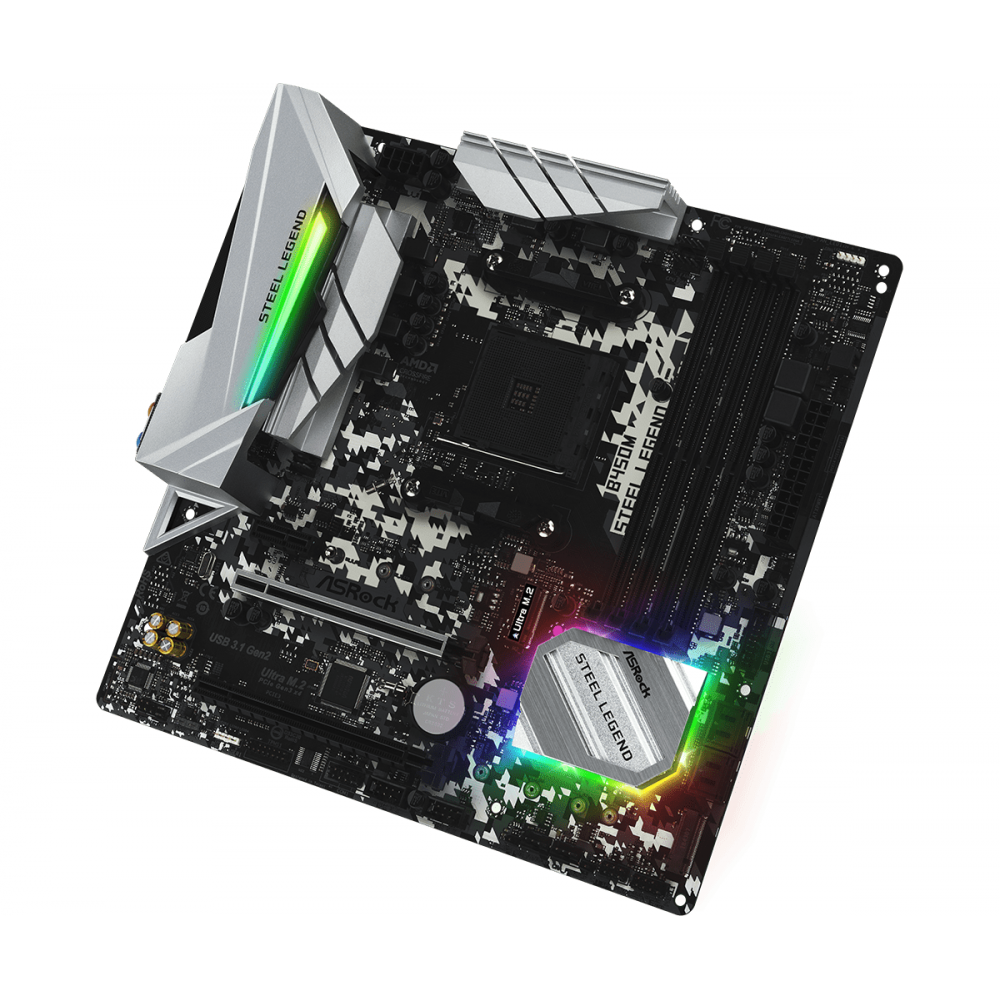

Description ASRock B450M STEEL LEGEND Motherboard

B450M Steel Legend

AM4 AMD Connector
Support DDR4 3533 + (OC)
1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
AMD Quad CrossFireX
Device of graphic data output: DisplayPort, HDMI
7.1-channel HD codec (Audiokodek of Realtek ALC892), Nichicon Fine Gold Series Audio-condensers
4 SATA3, 1 of Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
Realtek Gigabit LAN

Steel Legend Series created on the basis of the most exacting specifications and functions is focused by

on daily users and enthusiasts! Providing the wide range of materials / components for ensuring stable and reliable work. The motherboard which carries out all tasks!

MANAGE LIGHT WITH POLIHROMNYM RGB!

Here in addition to the built-in illumination the managed RGB connectors which allow to connect the compatible LED equipment, for example, LED tapes, fans, etc. are available. Also there is an opportunity to synchronize operation of RGB LED devices through the certified Polychrome RGB accessories for creation of own unique lighting effects.

Double connector M.2 for SSD

Two superfast PCIe Gen3 x4 Ultra M.2 connectors with data transmission rate to 32gbit/with, with support of SATA3 6Gb/s M.2 devices.

USB 3.1 Gen2 (Type-A + Type-C)

Onboard USB connectors 3.1 Gen2 Type-A and Type-C with data transmission rate to 10Gbps.

Covering 2oz

Plaths

has additional inside layers from high-quality copper that provides the lowered temperature and the increased energy efficiency at an overkloking.

Steel PCI-E connectors

Steel PCI-E connectors have protection which excludes an interference of a signal of video cards. In these connectors even big and heavy video cards will be installed most reliably.

Aluminum radiator of XXL

Radiator of cooling of the large size effectively allocates for

heat from transistors and and a chipset, increasing stability of work of all system.

Throttles of Premium 60A Power Choke

In comparison with normal throttles, new throttles of a premium class from ASRock raise a saturation current by 3 times, providing more reliable voltage for the motherboard.

Black Nichicon 12K condensers

Superreliable black condensers 12K have service life not less than 12000 hours. Unlike other motherboards on which condensers hardly live till 10000 oclock ASRock offers Nichicon 12K Black Caps condensers with the service life prolonged for 20%, more reliable and stable.

Protection of I/O Armor

New technology of protection of the major components of the motherboard located at the back panel, uberezhyot a system from influence of static electricity.

Black sapphire

Deep black color. The basis in color of "black sapphire" gives to the motherboard a mysteriousness element.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

Printed circuit board with a copper layer in 2 ounces

use only carefully selected copper samples for layers of the printed circuit board, and the technology allows to reduce temperatures and to improve energy efficiency at acceleration.

Characteristic ASRock B450M STEEL LEGEND Motherboard

Article: span do not have B450M_STEEL_LEGEND

Form factor micro-ATX
Processor (socket type) AMD Socket AM4
Model of the built-in processor
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset AMD B450
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no

Assignment for game PCs
Form factor micro-ATX
Guarantee, month 24
Processor (socket type) AMD Socket AM4
Processor (quantity of socket) 1
Model of the built-in processor is not present
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece there is no
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset AMD B450
PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v3.x
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece 1 of x PCI-E x1 v2.x
Slot of PCI, piece there is no
AGP Slot there is no

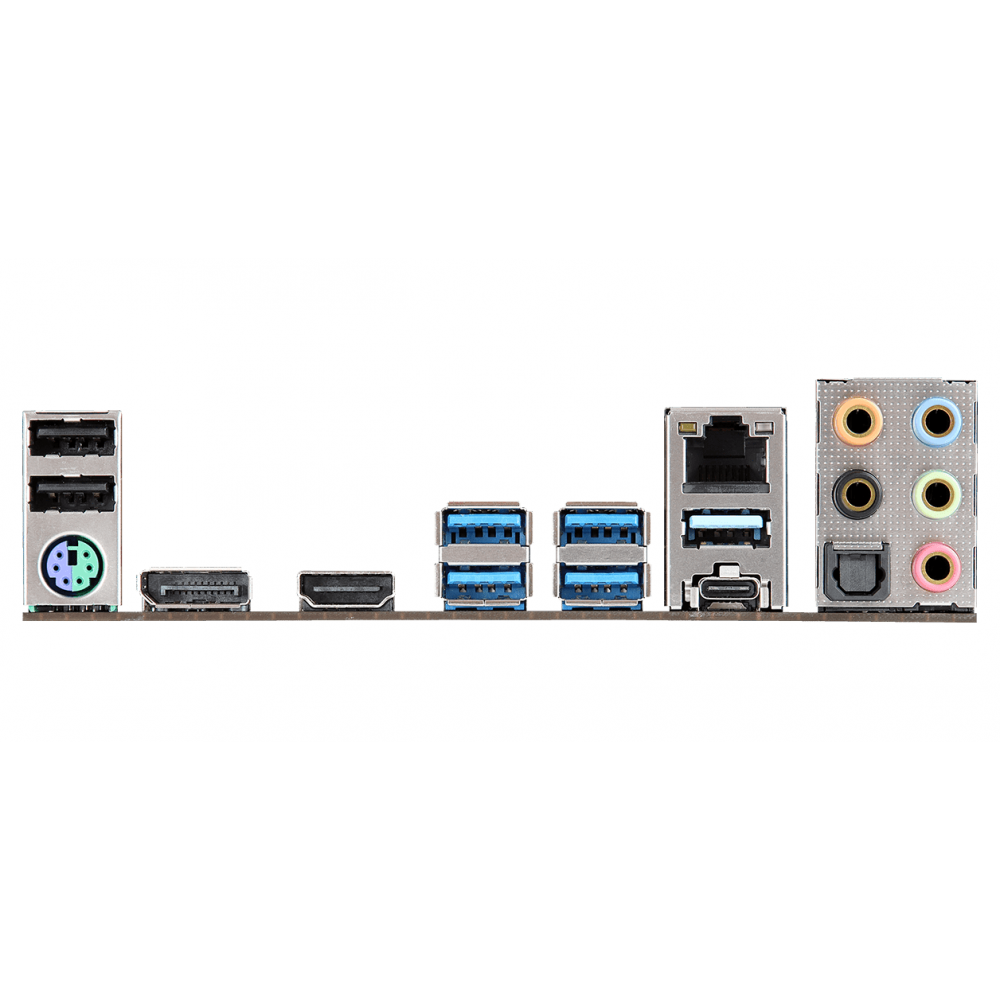

Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.1 of Type C (Gen 2 up to 10Gbps)
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.1 of Gen 2 Type-A
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.0/3.1 of Gen 1 Type-A (on a payment, for a frontal output), 4 x USB 3.0/3.1 Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A, 2 x USB 2.span do not have 0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port
Port DVI, piece there is no
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port there is no
DisplayPort (mini/micro) Port 1 of x DisplayPort v1.2
PS/2 Port, piece 1
COM (RS-232) Port 1 (on a payment, for a frontal output)
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece there is no
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), to piece 4
Number of SATA2 ports (3gbit/c), span do not have piece
Number of SATA Express ports (to 10gbit/c), span do not have piece
Slot of dimm.2, piece there is no
Mini PCI Express (Mini PCI-E, Socket 3), piece 1 x M.2 (Key M), 1 x Ultra M.2
Support of program RAID RAID 0, RAID 1, RAID 10
eSATA Port is not present
Quantity of eSATA, piece there is no
Number of IDE ports there is no
Slot for FDD there is no
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Realtek RTL8111H
Wireless interfaces (Wi-Fi) Is not present
Fastening for antenna Wi-Fi is not present
Wireless interfaces (Bluetooth/NFC) is not present
Built-in sound processor Realtek ALC892
Multichannel sound 7.1
Will corrode 3.5 mm (mini-Jack), piece 5
Optical output (S/PDIF) is
Support of several video cards AMD CrossFireX, AMD Quad-GPU CrossFireX
Built-in video is not present
BIOS Ami, UEFI
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 244
General width of a product (W), mm 244
Illumination configured illumination (RGB)
Colour Dark gray ules wet asphalt anthracite, Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 5
Number of power connectors of coolers (CPU Fan), piece 1
