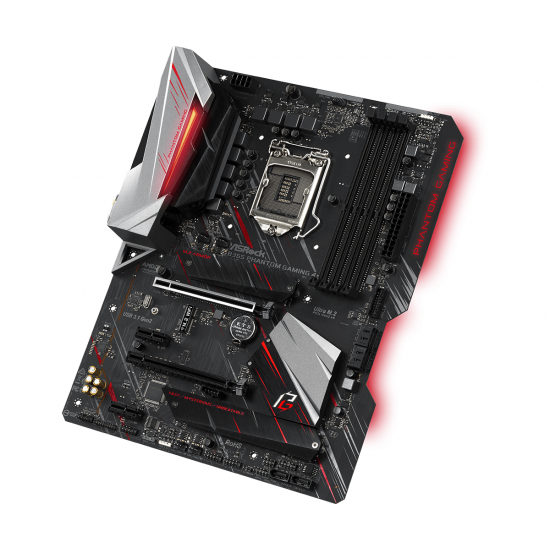

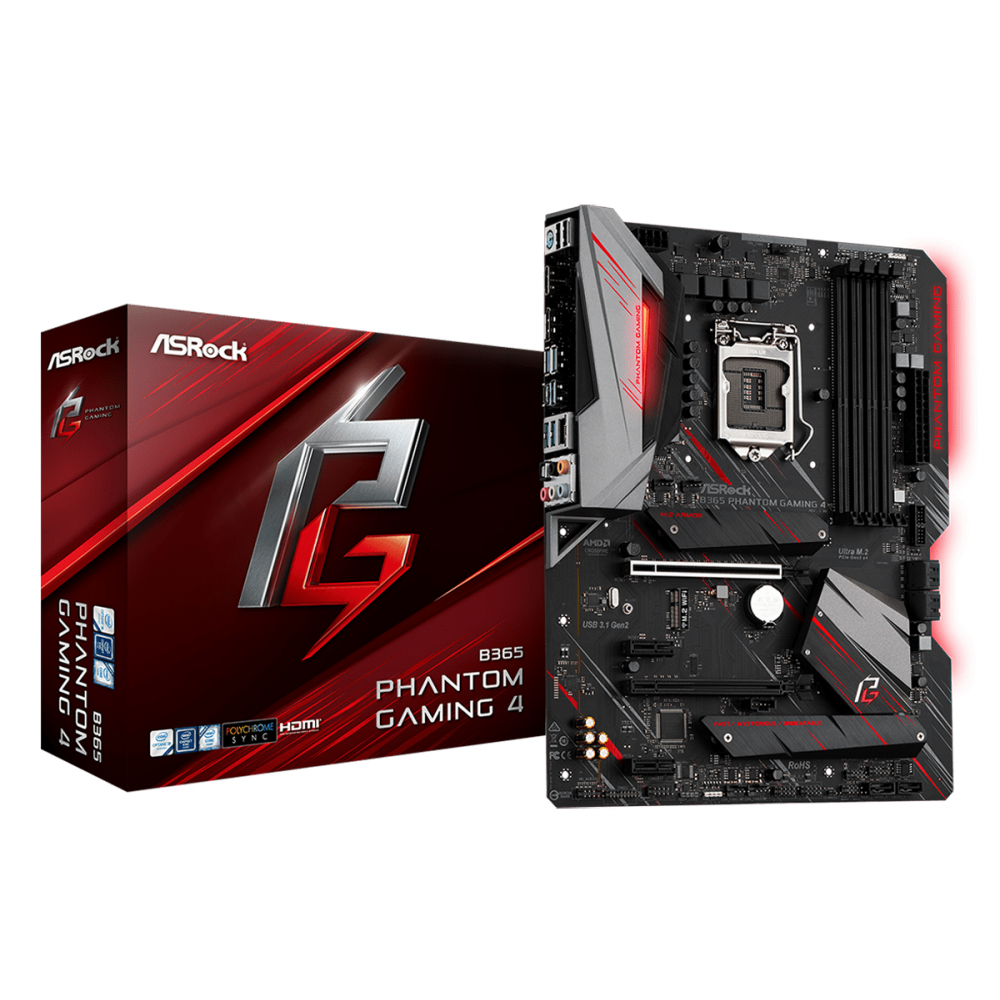

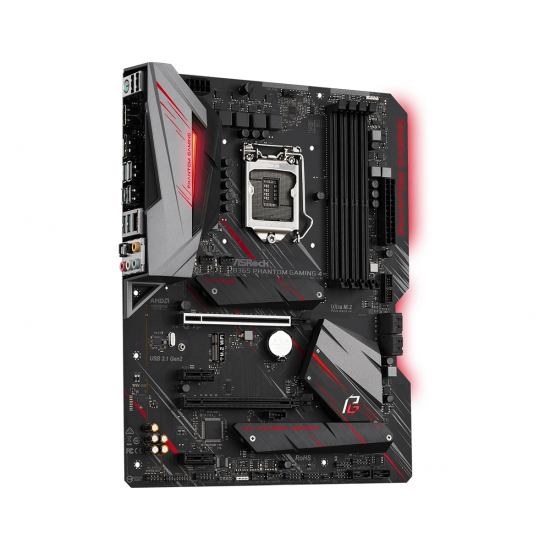

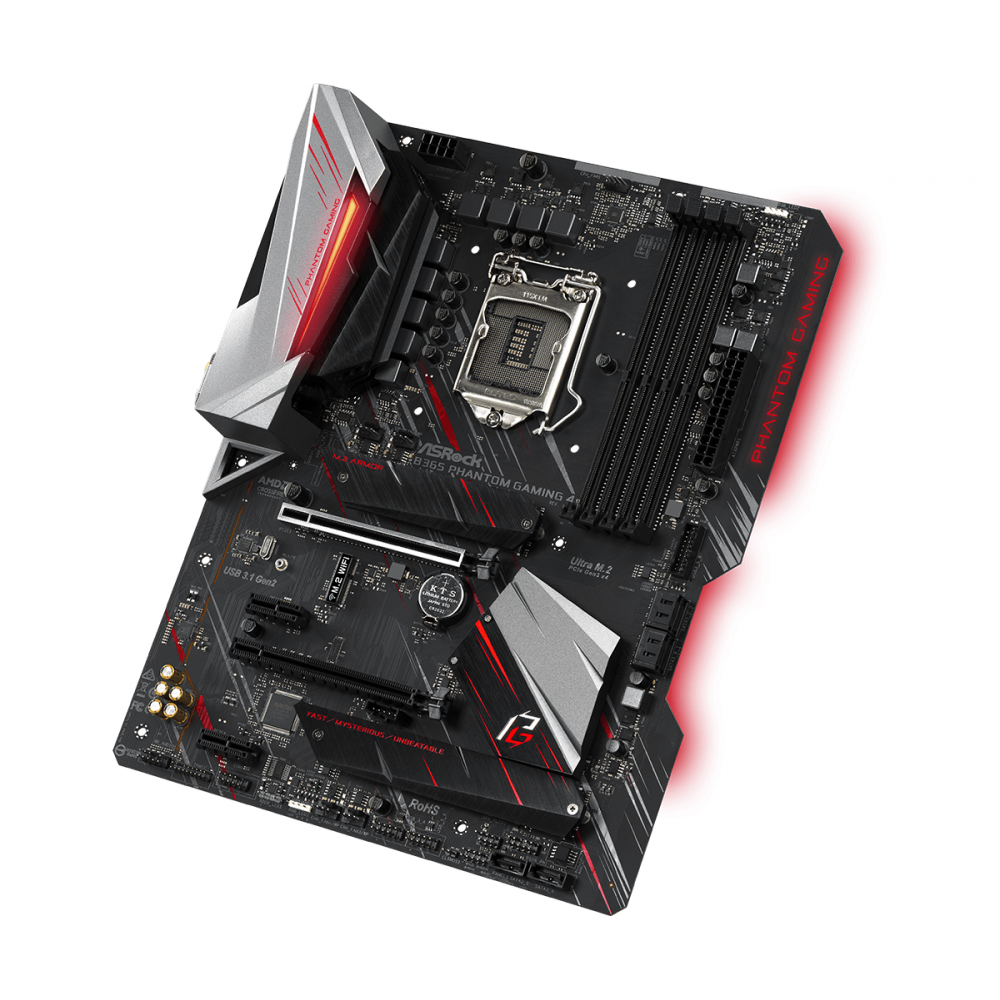

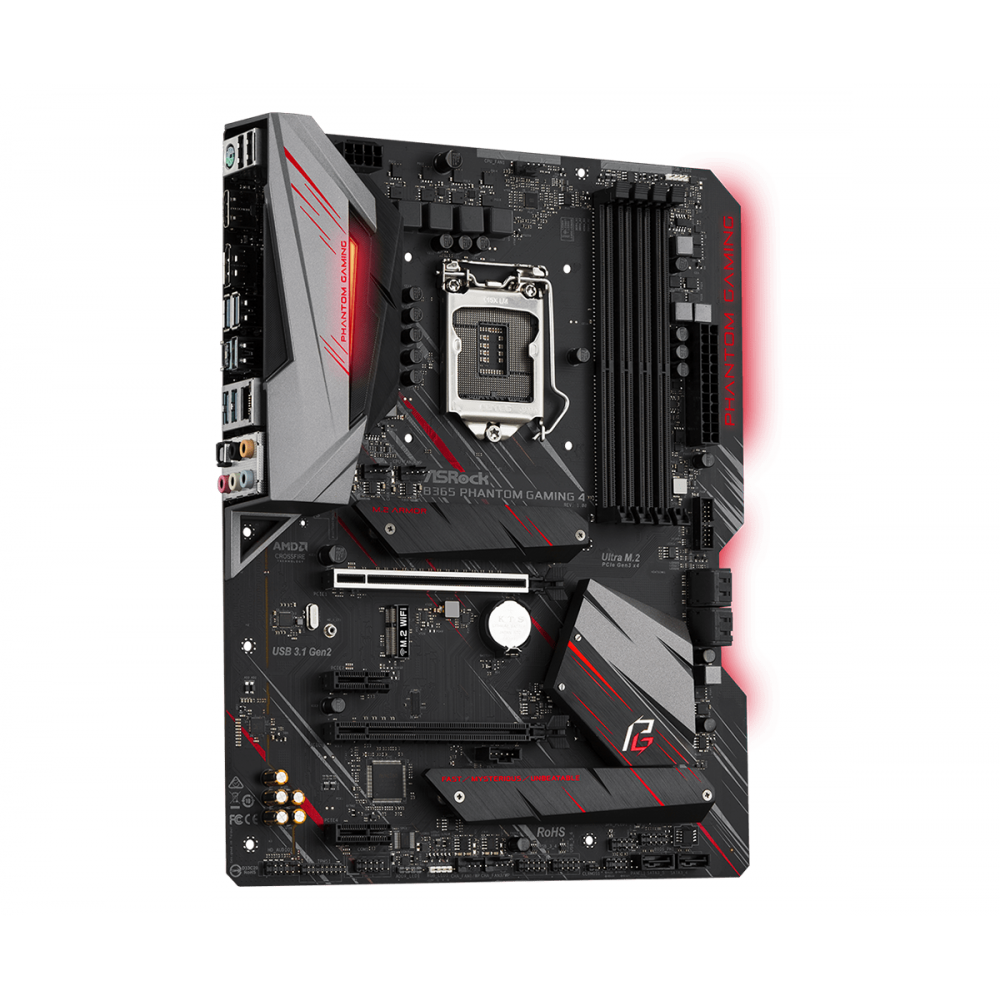

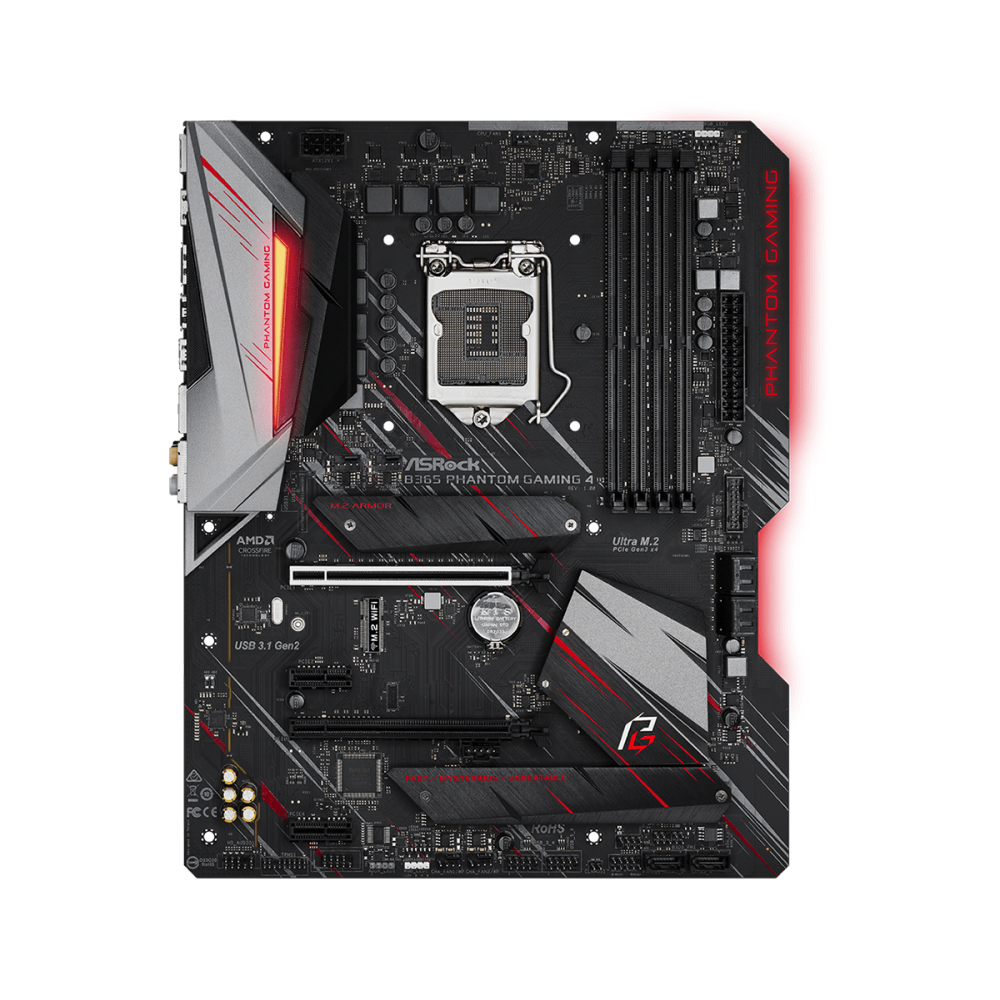

Description ASRock B365 PHANTOM GAMING 4 Motherboard

B365 Phantom Gaming 4

Supports by

Intel processors Core of the 8th and 9th generations (Connector 1151)
DDR4 Support 2666 MHz
2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
AMD Quad CrossFireX
Device of graphic data output: HDMI, for Display Port
7.1-channel HD codec (Realtek ALC1200 Audio Codec), the DTS Connect Support
6 SATA3, 1 of Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
Intel Gigabit LAN
ASRock Polychrome SYNC

Virtual reality waits!

Prepare for a travel to the boundless world of virtual reality! And before it make sure that you installed all necessary devices, programs and drivers. All components of your PC are connected to the motherboard, and with a set of ASRock VR Ready you receive what you dream of! The highest quality of a product is confirmed with comprehensive checks at a development stage. Reliable components and lightning speed of work will provide deep immersion to BP world. We guarantee that with our motherboards you will have no technical issues with virtual reality!

It is optimized for the Intel processors Core of the 9th generation

MANAGE LIGHT WITH POLIHROMNYM RGB!

Here in addition to the built-in illumination the managed RGB connectors which allow to connect the compatible LED equipment, for example, LED tapes, fans, etc. are available. Also there is an opportunity to synchronize operation of RGB LED devices through the certified Polychrome RGB accessories for creation of own unique lighting effects.

RELIABLE SITE FOR M.2. Two M.2 for SSD, the Type 22110 M.2 support

This payment is ready to accept faster and capacious drives of 22110 M.2 NVMe SSD for the increased performance. Two Ultra M.2 connectors support SATA3 6Gb/s and PCIe Gen3 x4 modes with data transmission rate to 32gbit/with, and are compatible to the ASRock U.2 Kit set for installation of the most high-speed drives U.2 PCIe Gen3 x4.

Radiators of M.2

Reliable protection of the drives M.2 SSD plays an important role in duration and stability of work. ASRock on B365 platform offers two radiators of M.2 with which the drives SSD will have the lowered temperature.

Dual USB 3.1 Gen2 (Type-A + Type-C)

Onboard USB connectors 3.1 Gen2 Type-A and Type-C with data transmission rate to 10Gbps.

INTEL ETHERNET. Stable and reliable

provides to

Intel of LAN the best performance, the lowered load of the CPU, increases stability and guarantees unforgettable impressions in Network!

Intel Optane Technology

supports technology of work with memory and the drives Intel Optane which sets new standards of performance and responsiveness.

Aluminum radiator of XXL

Radiator of cooling of the large size effectively allocates for heat from transistors and and a chipset, increasing stability of work of all system.

Throttles of Premium 50A Power Choke

In comparison with normal throttles, new throttles of a premium class from ASRock raise a saturation current by 3 times, providing more reliable voltage for the motherboard.

Black Nichicon 12K condensers

Superreliable black condensers 12K have service life not less than 12000 hours. Unlike other motherboards on which condensers hardly live till 10000 oclock ASRock offers Nichicon 12K Black Caps condensers with the service life prolonged for 20%, more reliable and stable.

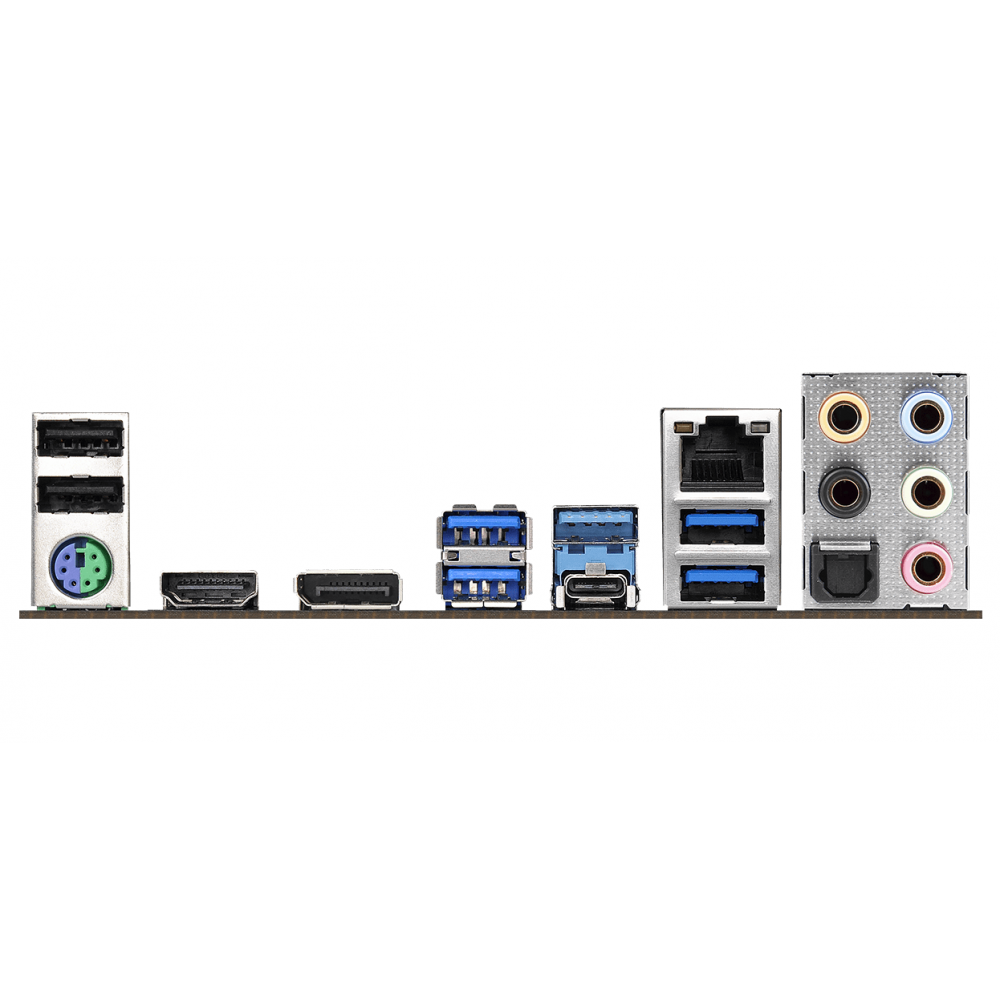

Protection of I/O Armor

New technology of protection of the major components of the motherboard located at the back panel, uberezhyot a system from influence of static electricity.

Black opaque printed circuit board

Combination of black opaque color and copper shades is called by

High-End level components on ASRock motherboards.

Printed circuit board of high density

New design of the printed circuit board reduces gaps between layers and protects the motherboard from the electric short circuits caused by humidity.

M.2 Key E Connector for Wi-Fi

Can connect separate Wi-fi module 802.11ac to special connector M.2 (Key E). (*Модуль Wi-Fi is not included in the delivery package.)

Characteristic ASRock B365 PHANTOM GAMING 4 Motherboard

Article: span do not have B365_PHANTOM_GAMING_4

Form factor ATX
Processor (socket type) Intel Socket 1151
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset Intel B365
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Wireless interfaces (Wi-Fi) there Is no

Assignment for game PCs
Form factor ATX
Guarantee, month 24
Processor (socket type) Intel Socket 1151
Processor (quantity of socket) 1
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece is not present
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset Intel B365
PCI Express Slot (PCI-E x16 (x16)), piece 2 of x PCI-E x16 (x16) of v3.x
PCI Express Slot (PCI-E x16 (x8)), piece there is no
Slot of PCI Express (PCI-E x8), piece there is no
Slot of PCI Express (PCI-E x4), piece there is no
Slot of PCI Express (PCI-E x1), piece 2 of x PCI-E x1 v3.x
Slot of PCI, piece there is no
AGP Slot there is no
Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.1 of Type C (Gen 2 up to 10Gbps)
Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) 1 x USB 3.1 of Gen 2 Type-A
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 1 x USB 3.0/3.1 of Gen 1 Type-A (on a payment, for a frontal output), 4 x USB 3.0/3.1 Gen 1 Type-A
USB 2 Port.span do not have 0 Type-A/Type-B/mini USB/micro USB (up to 480Mbps) 2 x USB 2.0 Type-A, 2 x USB 2.0 Type-A (on a payment, for a frontal output)
VGA (D-Sub) Port
Port DVI, piece there is no
HDMI (mini/micro) Port 1 x HDMI
Thunderbolt Port 1 (5-pin on a payment)
DisplayPort (mini/micro) Port 1 of x DisplayPort v1.2
PS/2 Port, piece 1
COM (RS-232) Port 1 (on a payment, for a frontal output)
Port (IEEE 1394) is not present
LPT Port (IEEE 1284), piece there is no
Connector of the TPM module, piece 1 (on a payment)
Number of SATA3 ports (6gbit/c), to piece 6
Number of SATA2 ports (3gbit/c), span do not have piece
Number of SATA Express ports (to 10gbit/c), span do not have piece
Slot of dimm.2, piece there is no
Mini PCI Express (Mini PCI-E, Socket 3), piece 1 x M.2 (Key E), 2 x Ultra M.2
Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5
eSATA Port is not present
Quantity of eSATA, piece there is no
Number of IDE ports there is no
Slot for FDD there is no
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
LAN controller Model Intel I219V
Wireless interfaces (Wi-Fi) there Is no
Fastening for antenna Wi-Fi is not present
Wireless interfaces (Bluetooth/NFC) is not present
Built-in sound processor Realtek ALC1200
Multichannel sound 7.1
Will corrode 3.5 mm (mini-Jack), piece 5
Optical output (S/PDIF) is
Support of several video cards AMD CrossFireX, AMD Quad-GPU CrossFireX
Built-in video is not present
BIOS Ami, UEFI
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 305
General width of a product (W), mm 244
Illumination configured illumination (RGB)
Colour red urgundy scarlet, Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 5
Number of power connectors of coolers (CPU Fan), piece 1
