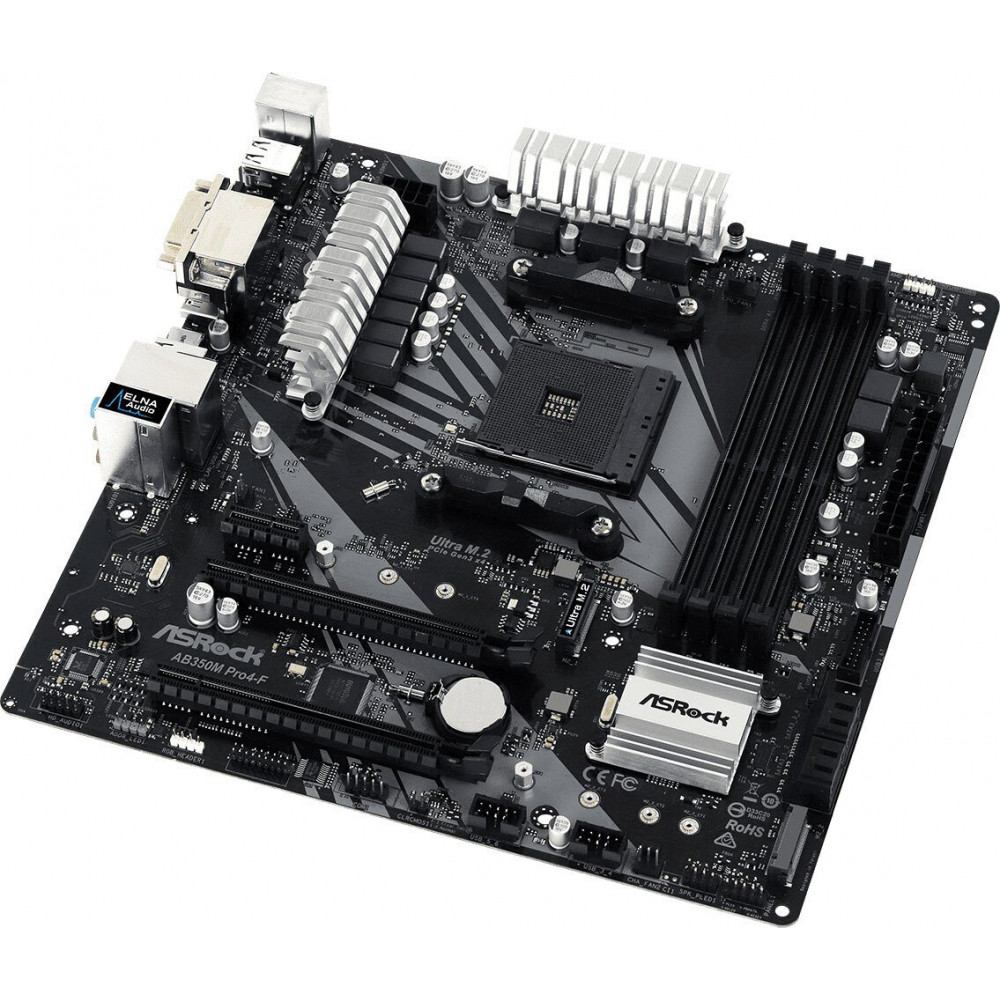

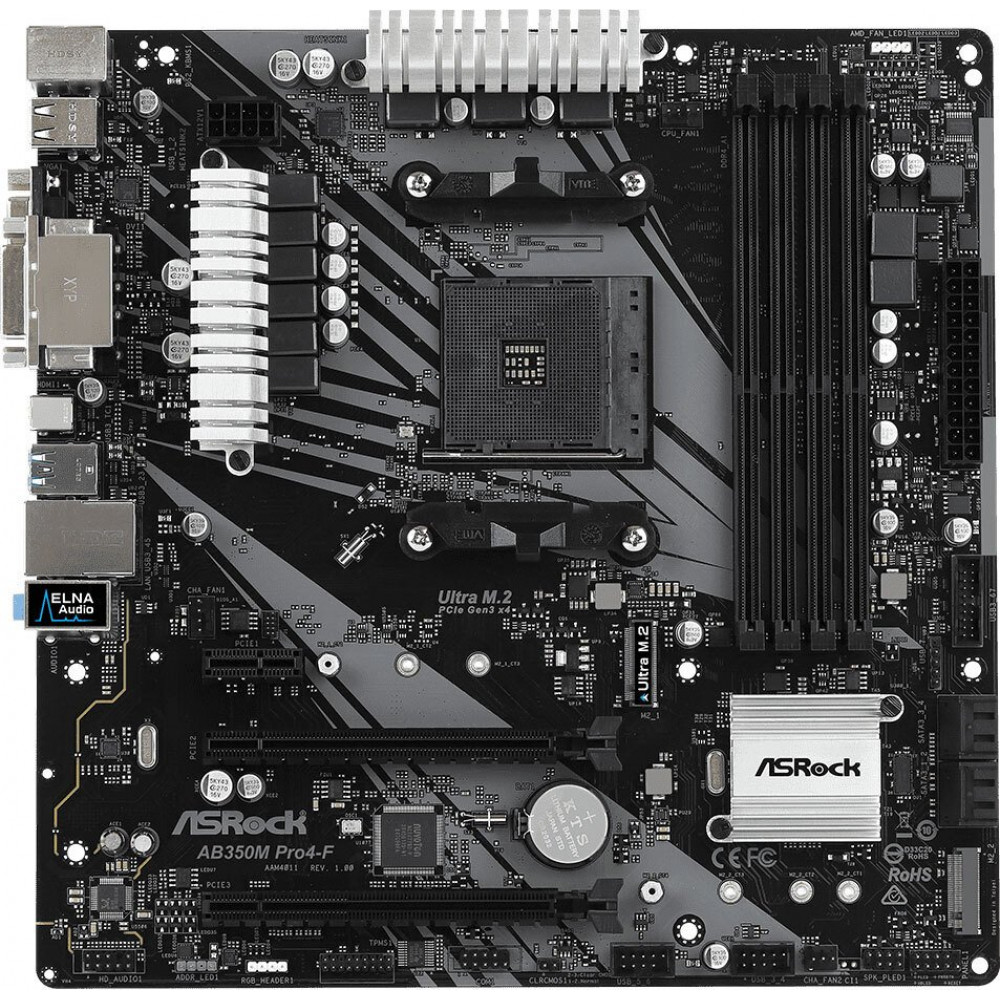

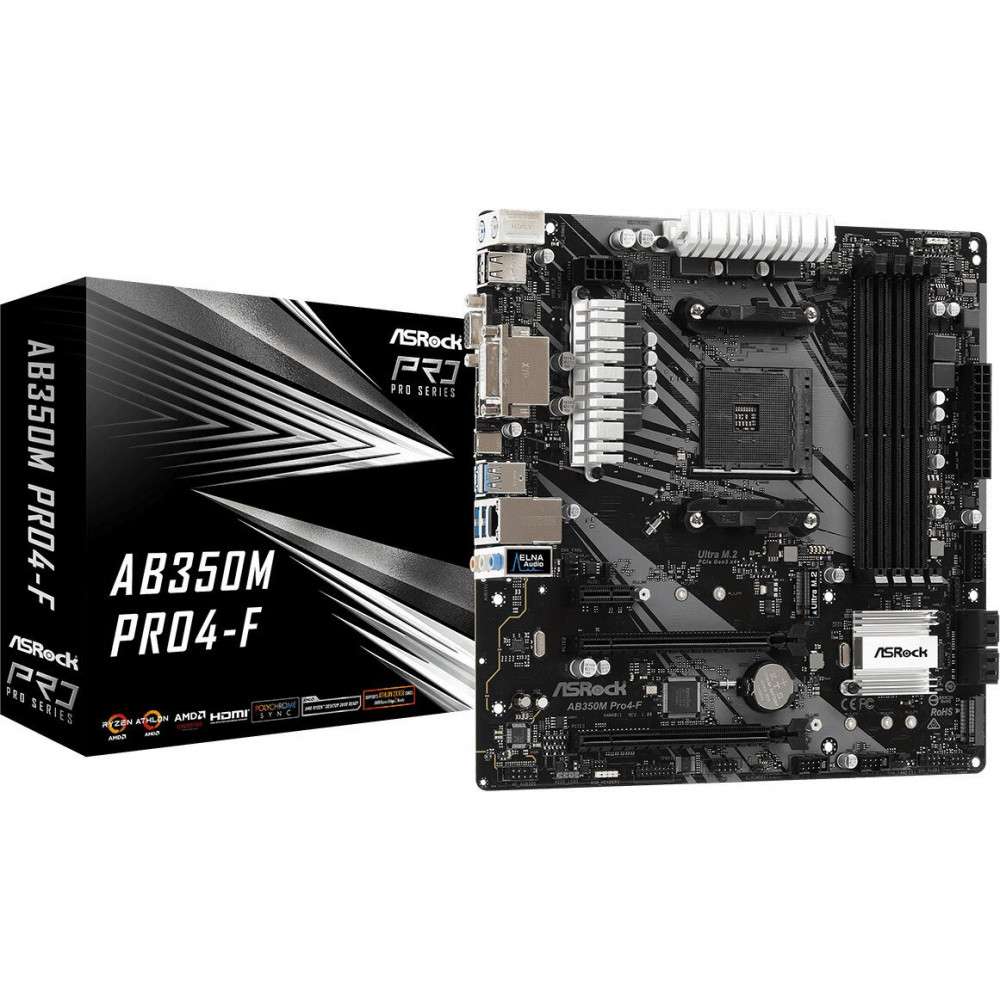

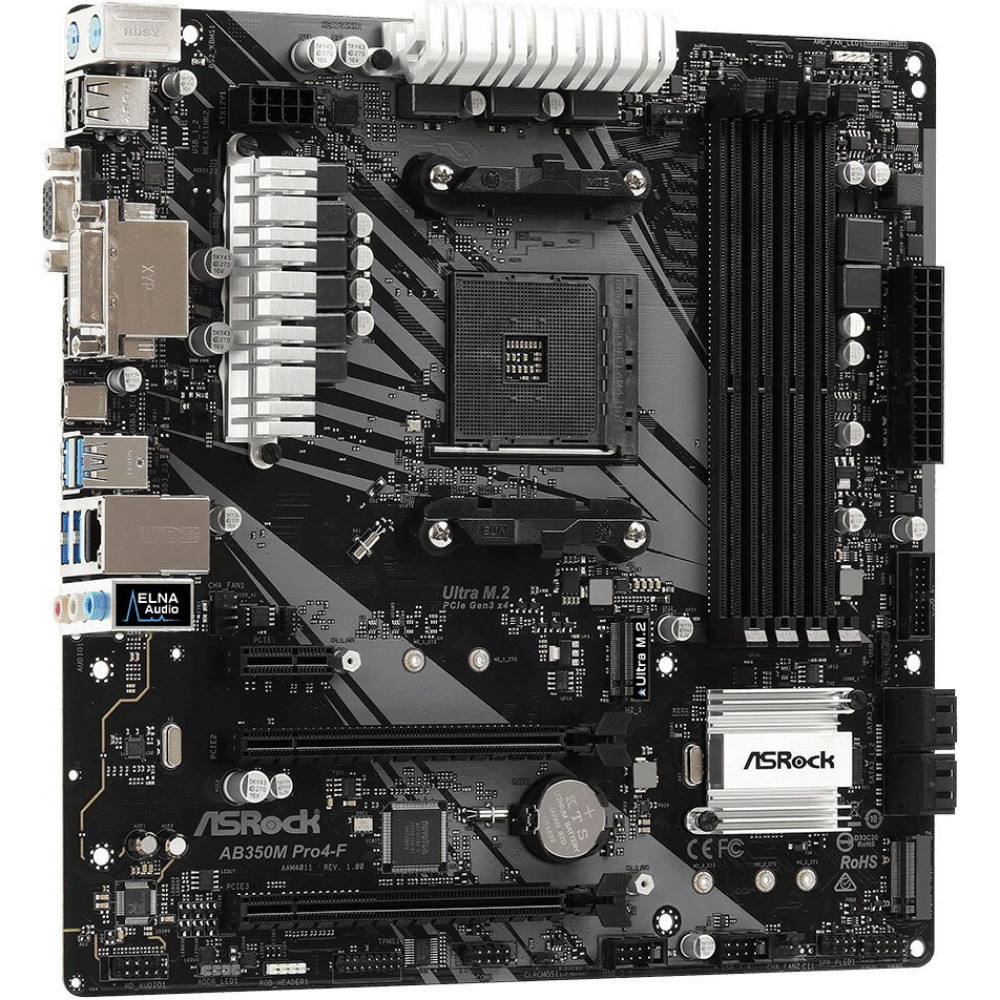

Description ASRock AB350M PRO4-F Motherboard

Virtual reality waits for

!

Prepare for a travel to the boundless world of virtual reality! And before it make sure that you installed all necessary devices, programs and drivers. All components of your PC are connected to the motherboard, and with a set of ASRock VR Ready you receive what you dream of! The highest quality of a product is confirmed with comprehensive checks at a development stage. Reliable components and lightning speed of work will provide deep immersion to BP world. We guarantee that with our motherboards you will have no technical issues with virtual reality!

Covering 2oz

Plaths

has additional inside layers from high-quality copper that provides the lowered temperature and the increased energy efficiency at an overkloking.

Two connectors M.2 for SSD One of the interface PCIe Gen3 x4 Ultra M.2 connectors provides

with
data transmission rate to 32Gb/s, and is compatible to ASRock U.2 set for installation of superhigh-speed drives of data U.2 PCIe Gen3 x4 SSD. The second connector has data transmission rate to 10Gb/s for PCIe Gen2 x2 devices. And another supports the SATA3 6Gb/s M.2 modules.
by

Digi Power

Unlike normal payments where analog circuits of power are used, in this payment used technology of the digital pulse width modulation (PWM) of new generation which provides more effective and uniform power of CPU that considerably increases stability and service life of the motherboard.

Three monitors

Diagram, diagram, and once again graphics! For those who love the big image this motherboard offers support of the mode of three Triple Monitor monitors. It is possible to use at the same time three video interfaces on the back panel and to connect monitors, without installing the additional video card.

A-Tuning

A-Tuning is a software from ASRock with the new interface, new functions and the improved set of utilities!

ASRock APP Shop is created by

Live Update & APP Shop

for your convenience. We offer different applications and utilities for loading. Thanks to app store of ASRock APP Shop your motherboard and your system will always contain the latests version of software.

Characteristic ASRock AB350M PRO4-F Motherboard

Article: span do not have AB350M_PRO4-F

Form factor micro-ATX
Processor (socket type) AMD Socket AM4
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece
Random access memory of DDR2 (quantity of slots), piece there is no
Chipset AMD B350
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet

Assignment for the desktop computer
Form factor micro-ATX
Guarantee, month. 24
Processor (socket type) AMD Socket AM4
Processor (quantity of socket) 2
Random access memory of DDR4 (quantity of slots), piece 4
Random access memory of DDR3 (quantity of slots), piece is not present
Random access memory of DDR2 (quantity of slots), piece there is no
Random access memory (number of channels) 2nd channel
Chipset AMD B350
PCI Express Slot (PCI-E x16 (x16)), piece 1
PCI Express Slot (PCI-E x16 (x8)), piece 1 of x PCI-E x16 (x8) of v3.x
Slot of PCI Express (PCI-E x1), piece 1

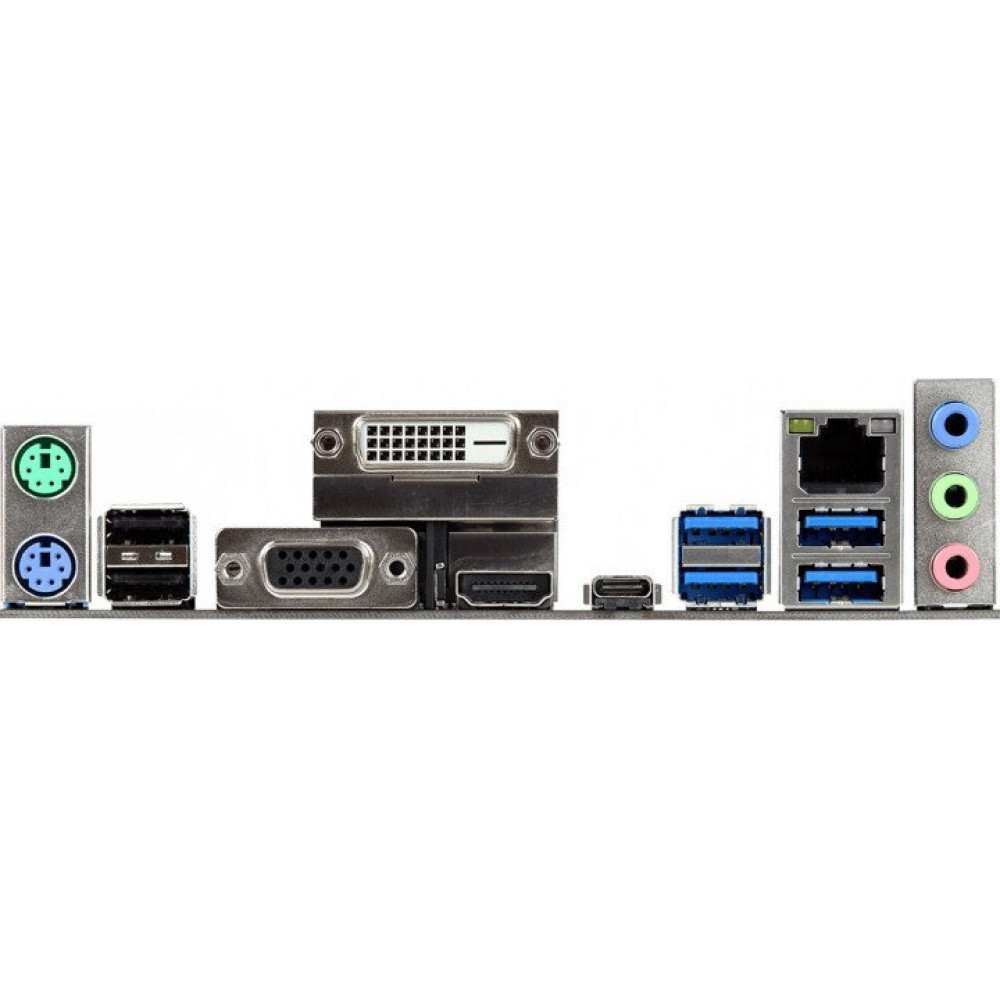

Type-C/Thunderbolt 3 USB 3.1 Port 1 x USB 3.1 of Type C (Gen 2 up to 10Gbps)
Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 4 x USB 3.0/3.1 of Gen 1 Type-A
Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A
VGA (D-Sub) Port span do not have 1 of x D-Sub (VGA) (on a payment)
Port DVI, piece 1 x DVI-D
HDMI (mini/micro) Port 1 x HDMI
PS/2 Port, piece 1
LPT Port (IEEE 1284), piece
Number of SATA3 ports (6gbit/c), to piece 4
Number of SATA2 ports (3gbit/c), span do not have piece
Support of program RAID RAID 0, RAID 1, RAID 10
Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet
Network connection (quantity of LAN RJ-45), Mbps 1
Built-in sound processor Realtek ALC892
I Will corrode 3.5 mm (mini-Jack), piece 3
Built-in video there is no
BIOS Ami
Cooling of the north-bridge passive (radiator)
Cooling of the south bridge passive (radiator)
General height of a product (H), mm 244
General width of a product (W), mm 244
Colour Black
Main power connector 24 - pin
Number of power connectors of coolers (total with CPU Fan), piece 4
